17
Special
Functions

If your Series 16 controller was ordered with this option, you may retransmit the signal representing the
process variable for analysis or storage to an external device that accepts analog input, such as a chart
recorder, datalogger, or process control computer. These outputs are:
Suppressed: 1-5 Vdc/4-20 mAdc
Unsuppressed: 0-5 Vdc/0-20 mAdc

I
out
(current output) = 0-20 mA/4-20 mA
Voltage Headroom = 8 Vdc (standard) 18 Vdc
(for multiple recording devices)
V
out
(voltage output) = 0-5Vdc/1-5 Vdc
I
out
Max = 20 mA
These output values are linear with and dependent upon the sensor being used, i.e., the lowest
value of the sensor’s output range corresponds to zero or low for the output function.
For voltage output, a jumper must be installed between terminals 13 and 14.

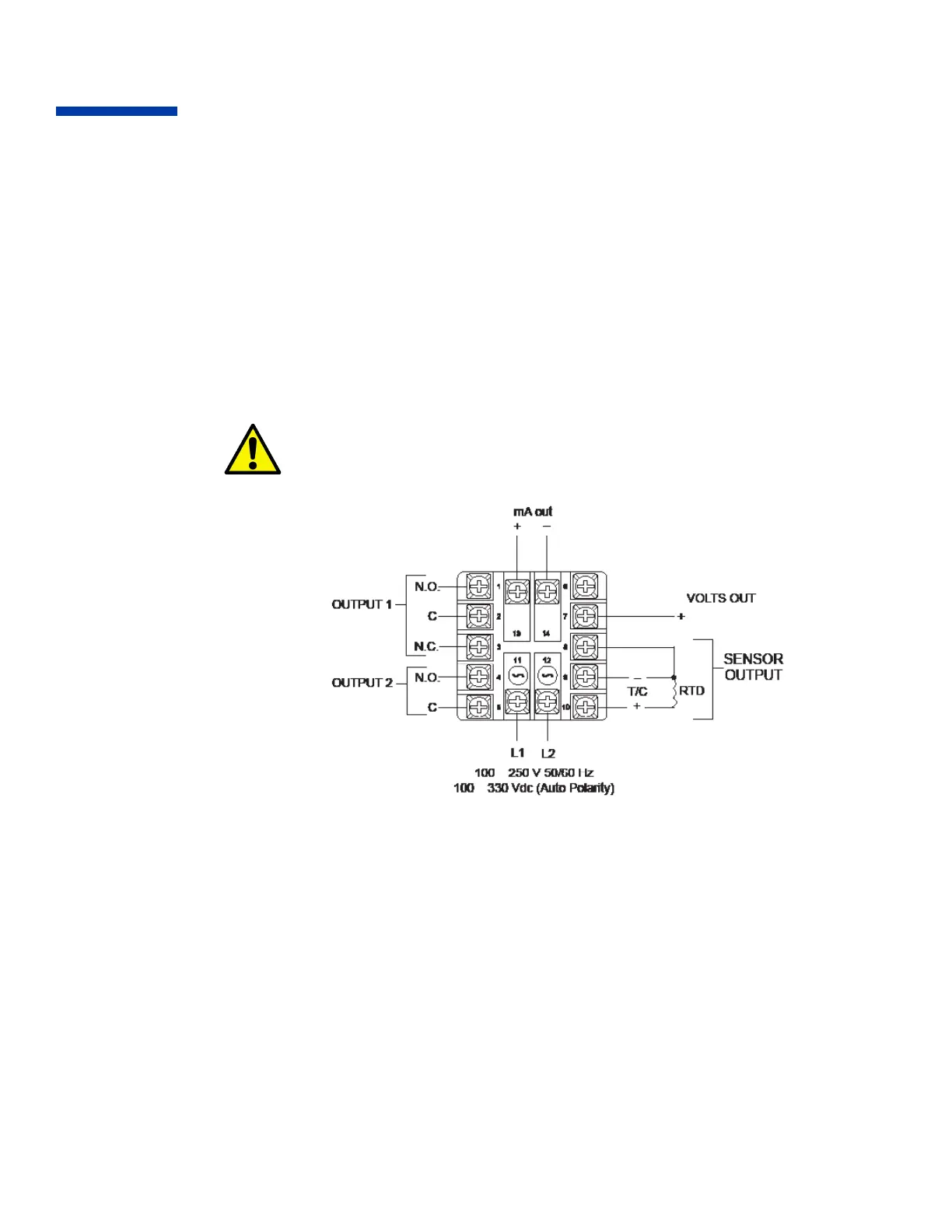

. Wiring Diagram for Process Variable Retransmission
