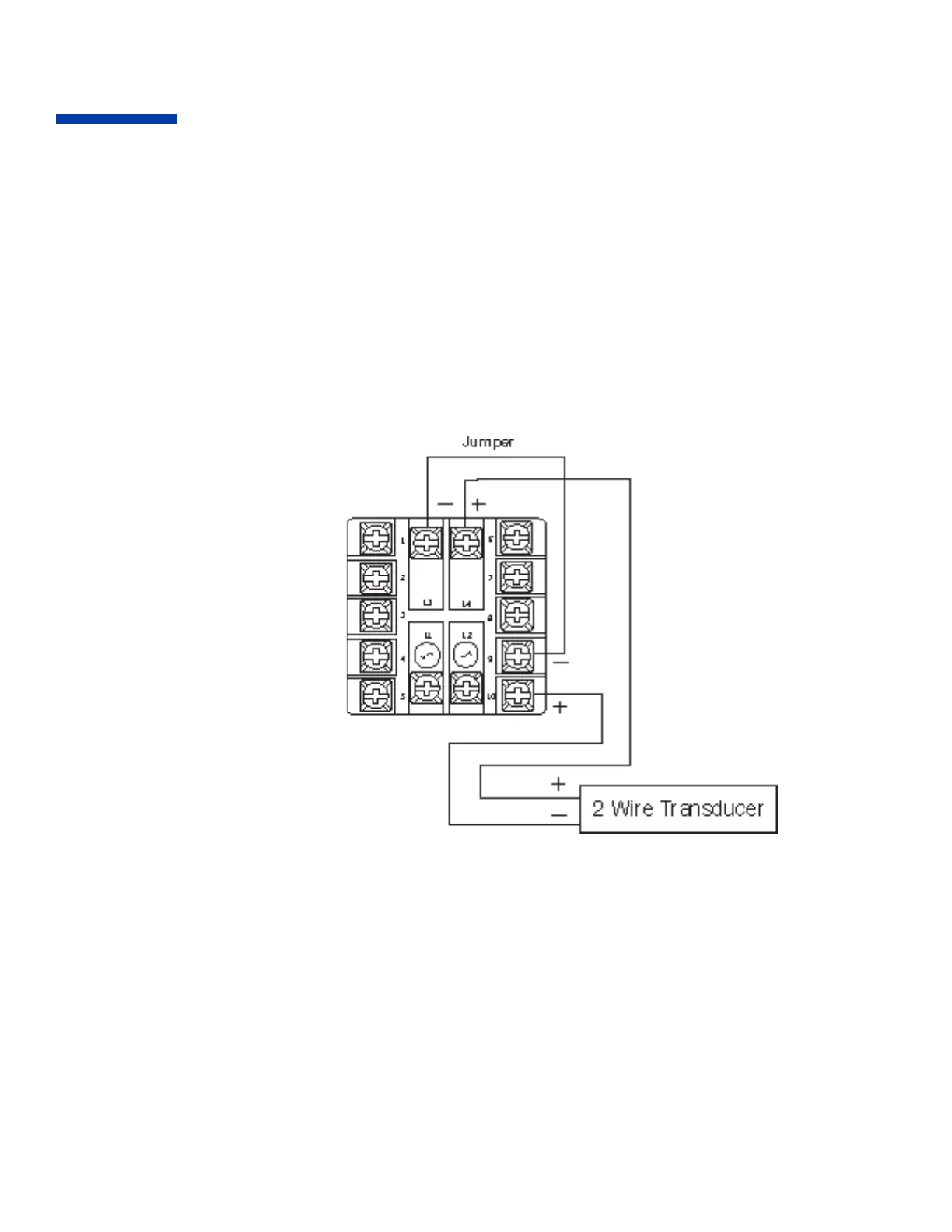

Figure 16. Wire Diagram for 2-Wire Sensor Input with Transducer
Excitation Option
Special
Functions
The transducer excitation voltage option is used to produce a constant dc voltage of 10, 12 or 15 Vdc out to
an external device, eliminating the need for an additional external power supply. Refer to the ordering code
if you do not know which voltage output was specified.
Option Ordering Code Voltage Output
50 10 V
51 12 V
52 15 V
53 5 V
Maximum Current = 22 mA
