1.4 Description

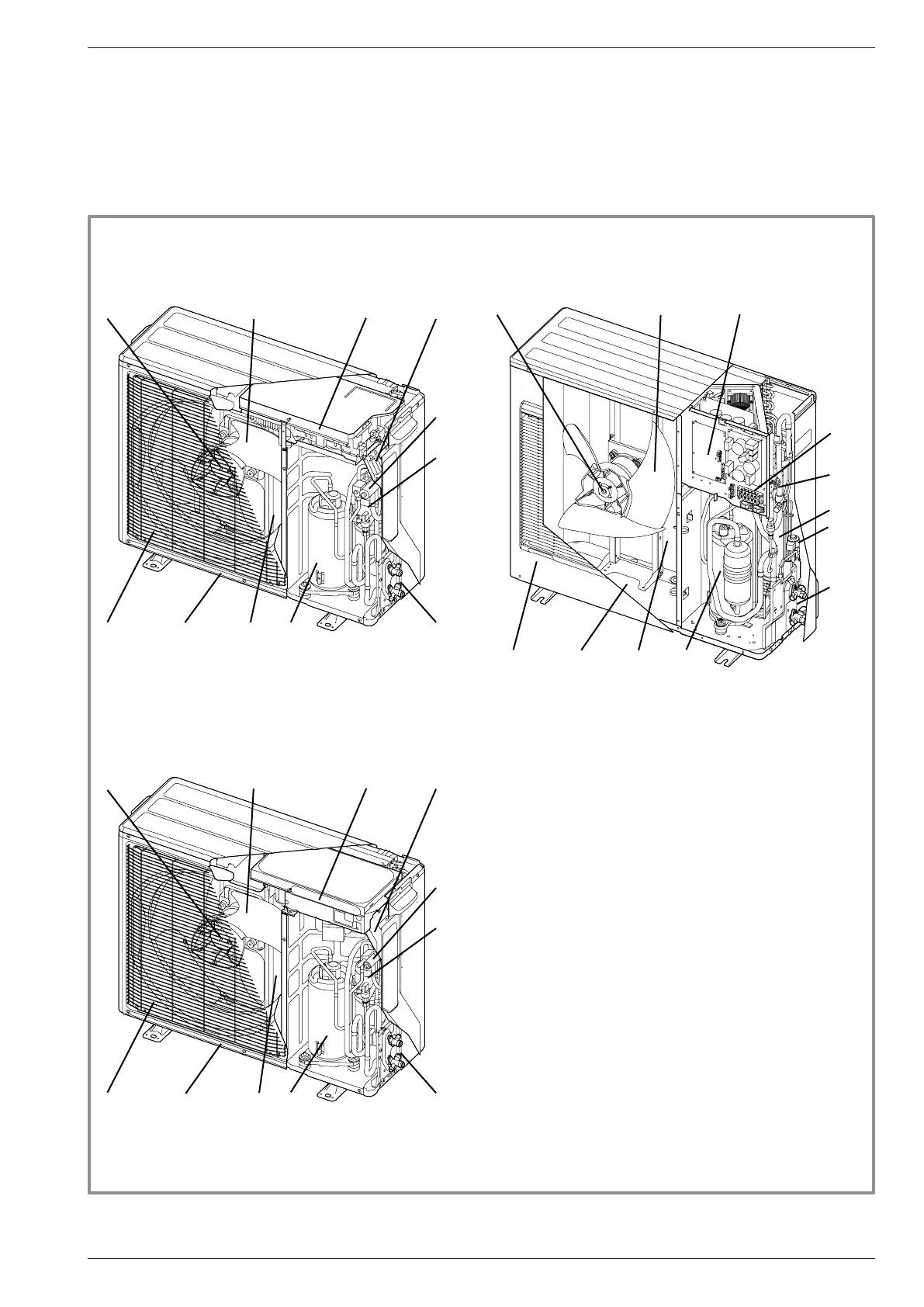

gure 6 - Outside unit components
Legend :
1 - Low-noise, high-output coil.
2 - Electric variable speed "inverter" motor.
3 - "Inverter" control module.
4 - Connection terminal blocks
(power and interconnection).
5 - Refrigerant accumulator bottle.
6 - Cycle reversing valve.
7 - Anti-corrosion treated bodywork.
8 - Electronic expansion valve.
9 - Noise and temperature insulated "inverter" compressor.
10 - Refrigeration connection valves (ared connectors)
with protective caps.
11 - Holding tank with condensate drain hole.
12 - High-performance exchange surface evaporator ;
anti-corrosion treated hydrophilic aluminium ns and
grooved copper tubes.
1
2
3
4
6
5
10
9
1211
7
1
2
3
4
6
5
10
9
1211
7
1
2
3
4
6
5
8
10
9
1211
7
Installation and operating manual "1578 - EN" - 9 -
Heat Pump alféa extensa duo +
" Model extensa duo + 5 & 6
" Model extensa duo + 8
" Model extensa duo + 10
