1.5 Operating principle
The heat pump transmits the energy contained in the
surrounding air into the dwelling to be heated.
The heat pump consists of four main elements, in which
a refrigerant uid (R410A) circulates.
- In the evaporator (ref. 12, gure 9, page 10) :
The energy is taken from the surrounding air and is
transmitted to the refrigerant. Because it has a low
boiling point, it changes from the liquid state to the
vapour state, even in cold weather (down to -20°C
outdoor temperature).
- In the compressor (ref. 9, gure 9, page 10) :
The vaporised refrigerant brought to high pressure
and takes on more calories.
- In the condenser (ref. 14, gure 10, page 11) : The
energy in the refrigerant is transmitted to the heating
circuit. The refrigerant returns to liquid state.
- In the expansion valve (ref. 8, gure 9, page 10) :
The liqueed refrigerant is brought back to low pressure
and returns to its initial temperature and pressure.
The heat pump is equipped with a controller, which
controls the room temperature based on the outdoor
temperature measurement and governed by the
temperature control. The room thermostat (option)
provides a corrective action for the temperature control.
The hydraulic unit can be optionally tted with an
electrical back-up system or boiler connection which
starts up in order to provide addtional heating during the
coldest periods.
• Regulation functions
- The heating circuit's initial temperature is controlled by
the temperature control.
- The power of the outdoor unit is modulated according
to ow heating temperature via the "Inverter"
compressor.
- Control of the electrical back-up heating (option).
- The daily timer program enables you to dene
the periods for comfortable or reduced ambient
temperature.
- Summer/winter mode switchover is automatic.
- Control of the supplementary boiler* (options).
- The room thermostat (option)*: provides a corrective
action for the temperature control.
- Control of a second heating circuit*.
- Domestic hot water*: Heating time program, control of
the operation of the DHW circulation pump.
- Managing the cooling*.
- Control of swimming pool heating*.
* If the heat pump is equipped with optional equipment and the
associated kits.
• Protection functions
- Anti-legionella cycle for domestic hot water.
- Frost protection: Frost protection cuts in if the low-
temperature point of the heating circuit falls below 5°C
(provided that the heat pump's electrical power supply
is not interrupted)
.

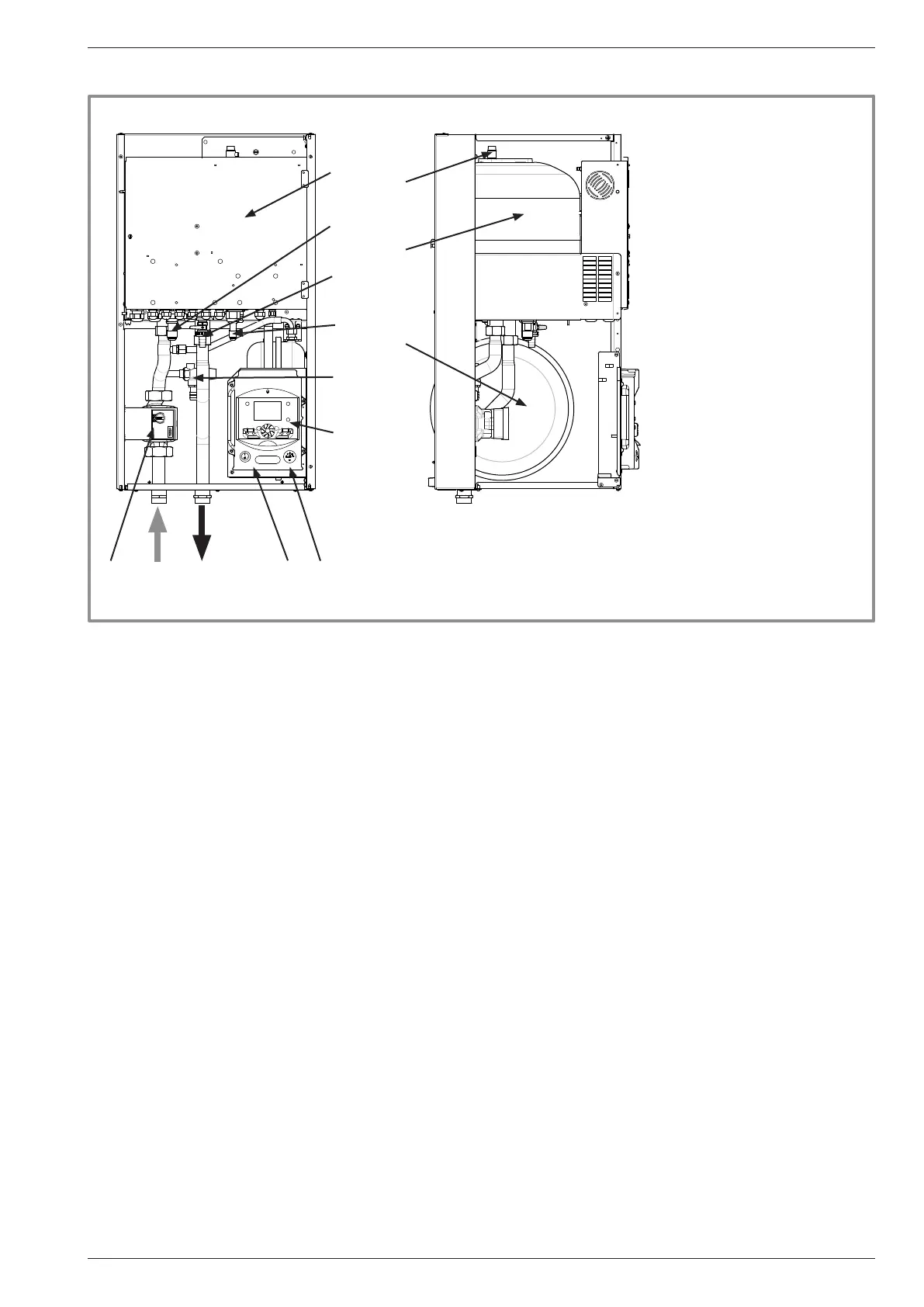

gure 10 - Hydraulic unit components
Legend :
1 - Electric box.
2 - Regulator / User interface.
3 - Start/stop switch.
4 - Heating circulation pump.
5 - Heating ow.
6 - Gas refrigeration connection.
7 - Liquid refrigeration connection.
8 - Heating return.
9 - Drain valve.
10 - Safety valve.
11 - Manometer.
12 - Manual drainer.
13 - Expansion vessel.
14 - Condenser.
2
1
4 3 11
7
6
58
9
10
13
14
12
Front view
Side view
Installation and operation manual "1734 - EN" - 11 -
Heat pump air/water split 1 service alféa extensa +
.
The heat pump must be equipped with an electrical
back-up system or boiler connection, which is designed
to provide additional heat during the coldest periods.
