Atlantic alfea extensa + - Description

1.4 Description

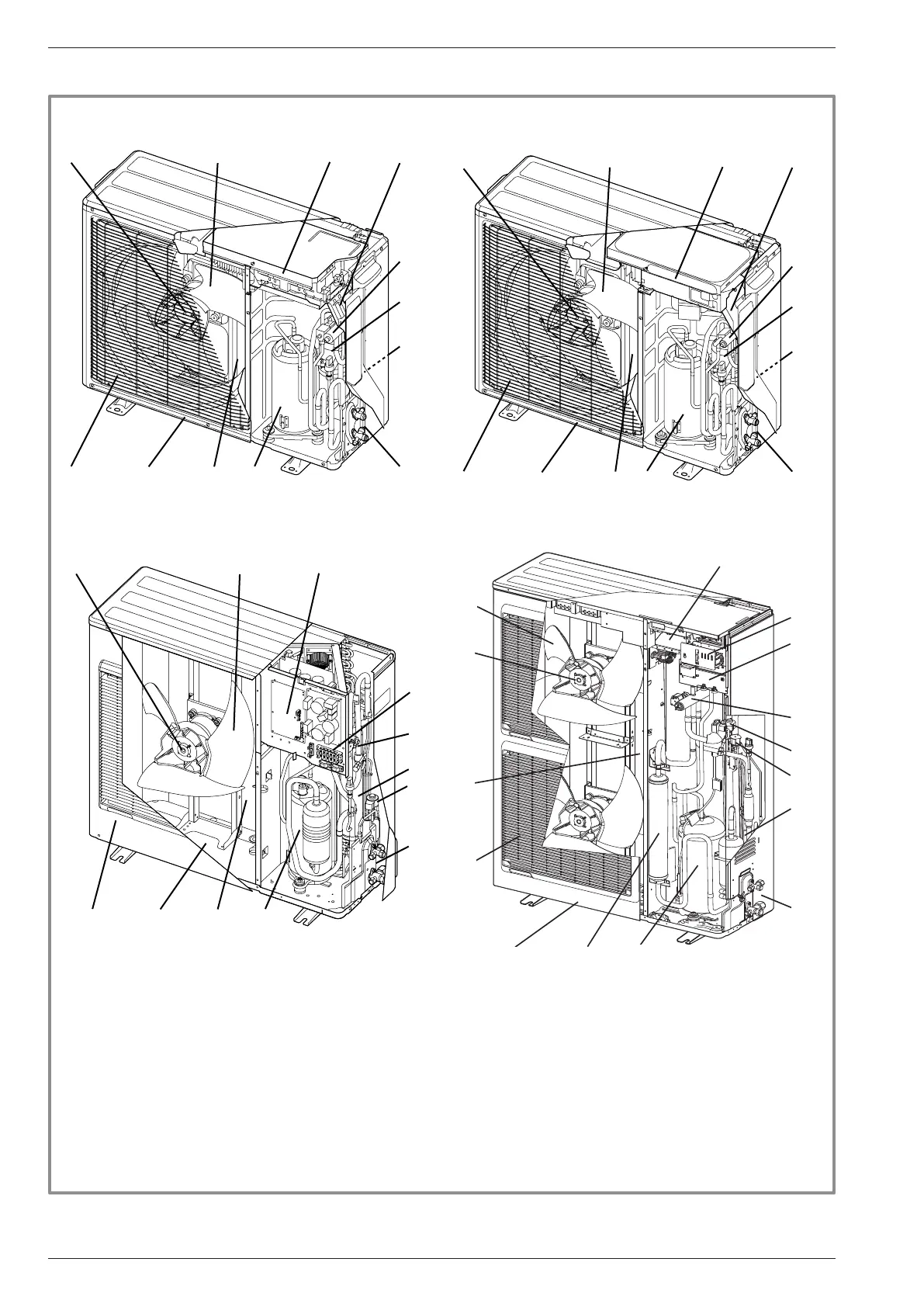

gure 9 - Outdoor unit components
1
2
3
4
6
5
8
10
9
1211
7
1
2
3
4
6
5
10
9
1211
7
8
Legend :
1 - Low-noise, high-output fan.
2 - Electric variable speed "Inverter" motor.
3 - Control lights and buttons.
4 - Connection terminal blocks
(power and interconnection).
5 - Refrigerant accumulator bottle.
6 - Cycle reversing valve.
7 - Anti-corrosion treated bodywork.
8 - Electronic expansion valve.
9 - Noise and temperature insulated
"Inverter" compressor.
10 - Refrigeration connection valves
(ared connectors) with protective caps.
11 - Holding tank with condensate drain hole.
12 - High-performance exchange surface evaporator ;
anti-corrosion treated hydrophilic aluminium ns and
grooved copper tubes.
13 - "Inverter" control unit.
14 - Solenoid valve for liquid injection.
15 - Electric expansion valve for liquid injection.
" Models extensa + 5 & 6
" Model extensa + 8
1
2
3
4
6
5
8
10
9
1211
7
" Model extensa + 10
" Models extensa + 13 & 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3
4
5
6
7
8
14
15
9
10
11
12
2
1
13
Installation and operation manual "1734 - EN"
Heat pump air/water split 1 service alféa extensa +
- 10 -
