Atlantic alfea extensa + - 2.4 Installation of the outdoor unit

600 mm
or more
100 mm
or more
250 mm or more
(Service space)
100 mm
or more
300 mm
or more
600 mm or more
250 mm
or more
250 mm
or more
300 mm
or more
600 mm or more
100 mm
or more
100 mm
or more
300 mm or more
(Service space)
300 mm
or more
2.4 Installation of the outdoor unit
2.4.1 Installation precautions
" The outdoor unit must only be installed outdoor
(outdoors). If a shelter is required, it must have
broad openings on the 4 walls and observe the
installation clearances (gure 15).
• Choose the location of the appliance after discussion
with the client.
• Choose a site that is preferably sunny and sheltered
from strong cold predominant winds (mistral,
tramontana, etc…).
• The unit must be easily accessible for future installation
and maintenance work (gure 15).
• Ensure that it is possible to make the connections to
the hydraulic unit easily.
• The outdoor unit is able to withstand bad weather but
avoid installing in a position where it is likely to be
exposed to signicant dirt or owing water (under a
defective gutter for example).
• Water may drain away from the outdoor unit when it
is operating. Do not install the appliance on a paved
terrace; choose a well-drained place (e.g. gravel
or sand). If the installation is in an area where the
temperature can be lower than 0°C for a long period,
check that the presence of ice does not present any
danger. A drainage pipe can also be connected to the
outdoor unit (see gure 17, page 17).
• Nothing should obstruct the air circulation through the
evaporator and from the fan (gure 15).
• Keep the outdoor unit away from heat sources and
inammable products.
• Make sure the appliance not disturb the surrounding
area or users (noise level, draught generated, low
temperature of the air being blown out, with the risk of
freezing plants in its path).

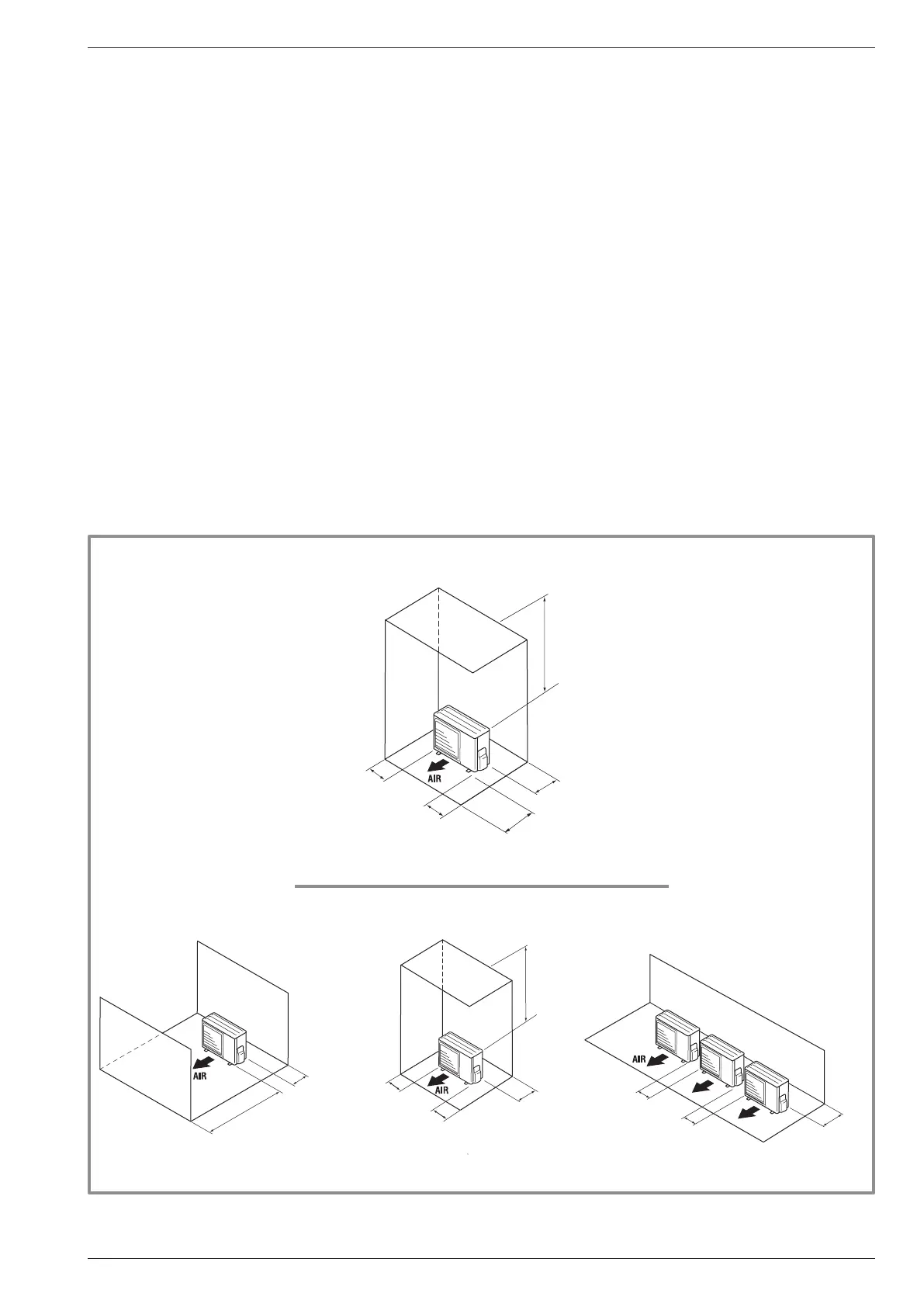

gure 15 - Minimum installation clearances around outdoor unit (models extensa + 5, 6, 8 & 10)
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Installation and operation manual "1734 - EN" - 15 -
Heat pump air/water split 1 service alféa extensa +
" Models extensa + 5, 6 & 8
" Model extensa + 10
