3.2.3 Accessing the hydraulic unit’s
refrigerant connections
- Remove the front panel (2 screws A).
- Remove the left-hand panel (2 screws B).
1
A
1
A
2

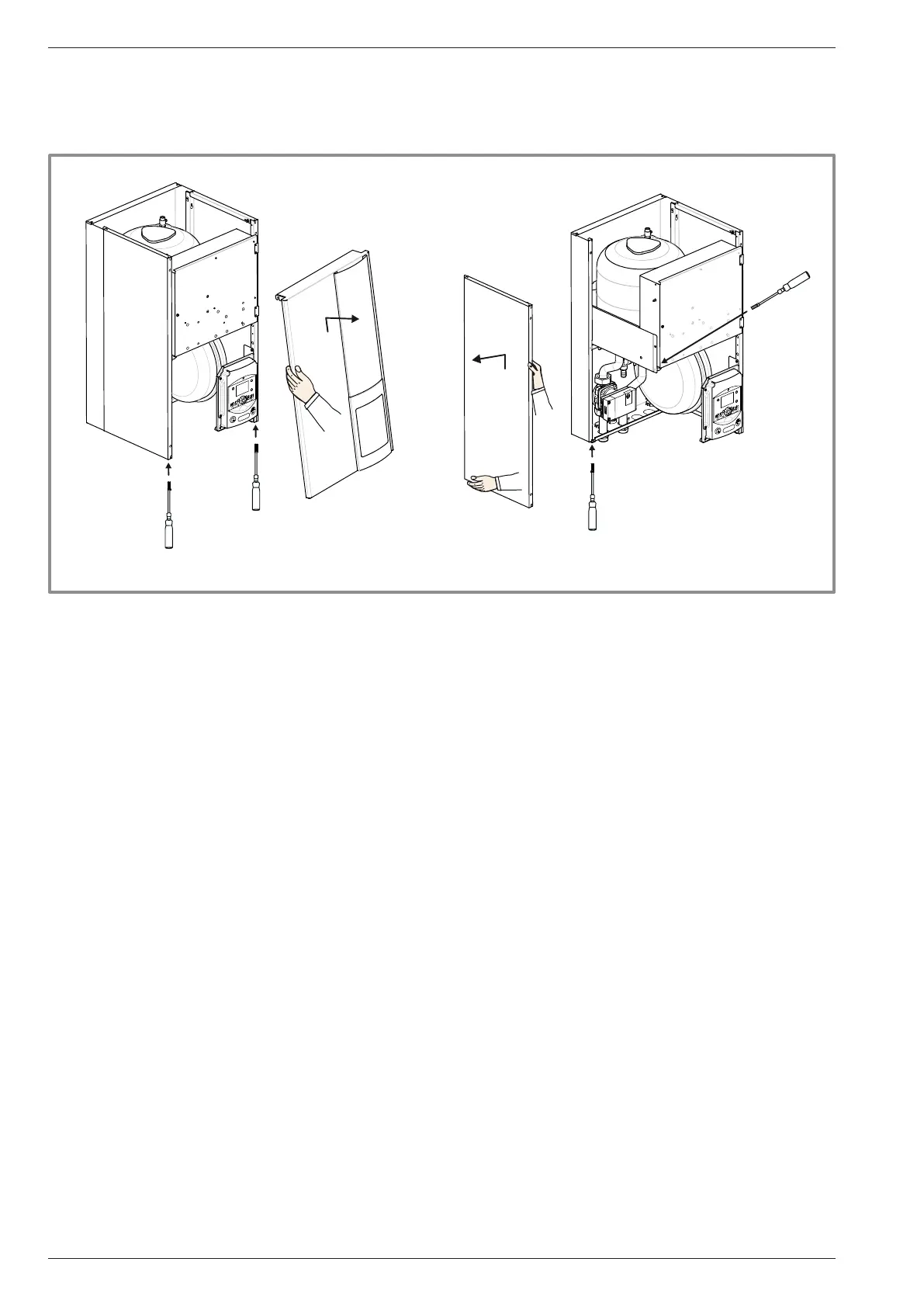

gure 20 - Removing the casing
