Atlantic alfea extensa + - Page 9

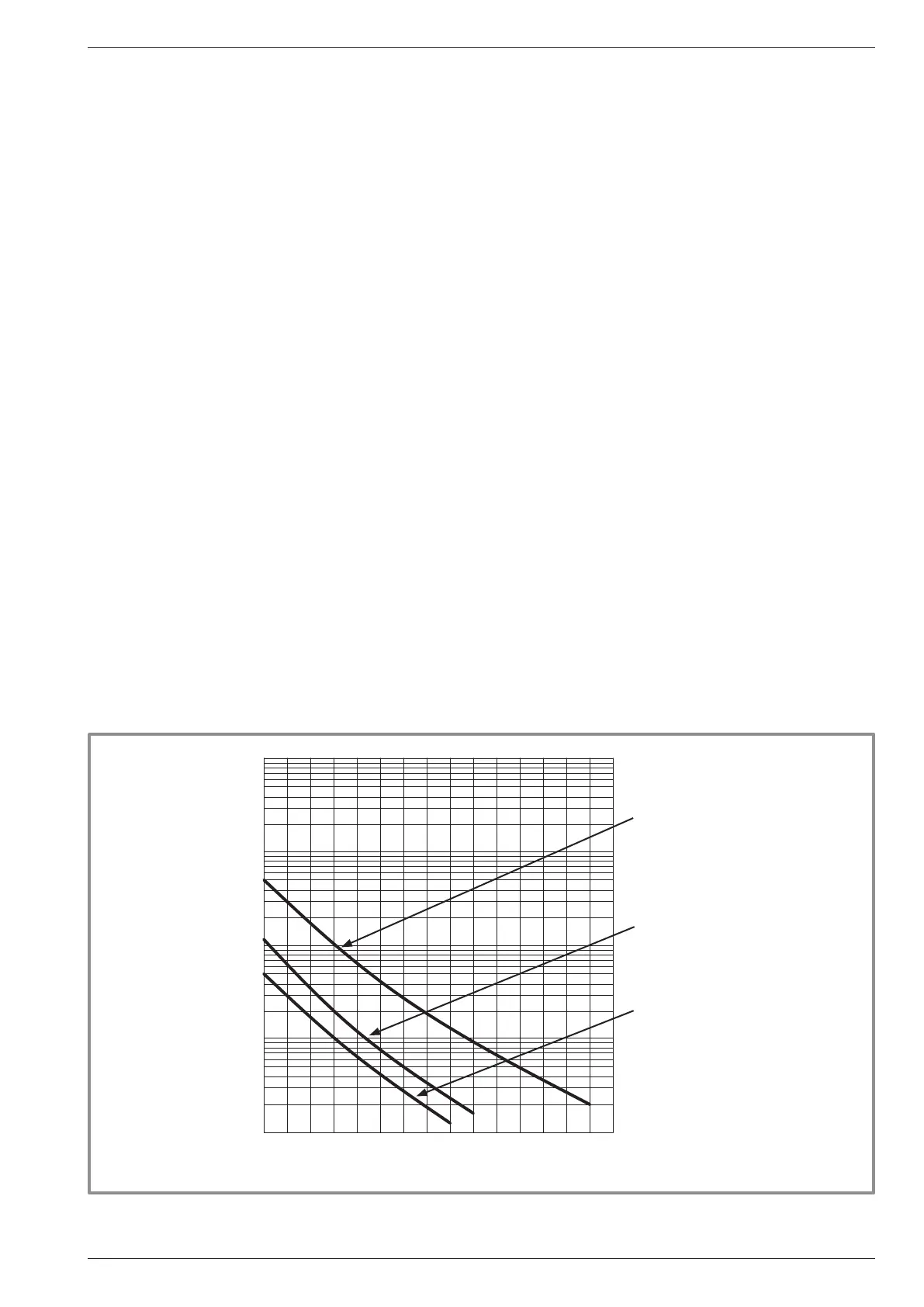

gure 8 - Ohmic values of the sensors (outdoor unit)
-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130
10000
1000
100
10
1
- Compressor
- Discharge
- Condensation
- Expansion valve
- Evaporator inlet
- Outdoor
Temperature °C
Ohmic value (kΩ)
