Service EN EP5PTI19 HR10-MT
20
© Atlas Copco Industrial Technique AB - 9839 0661 01

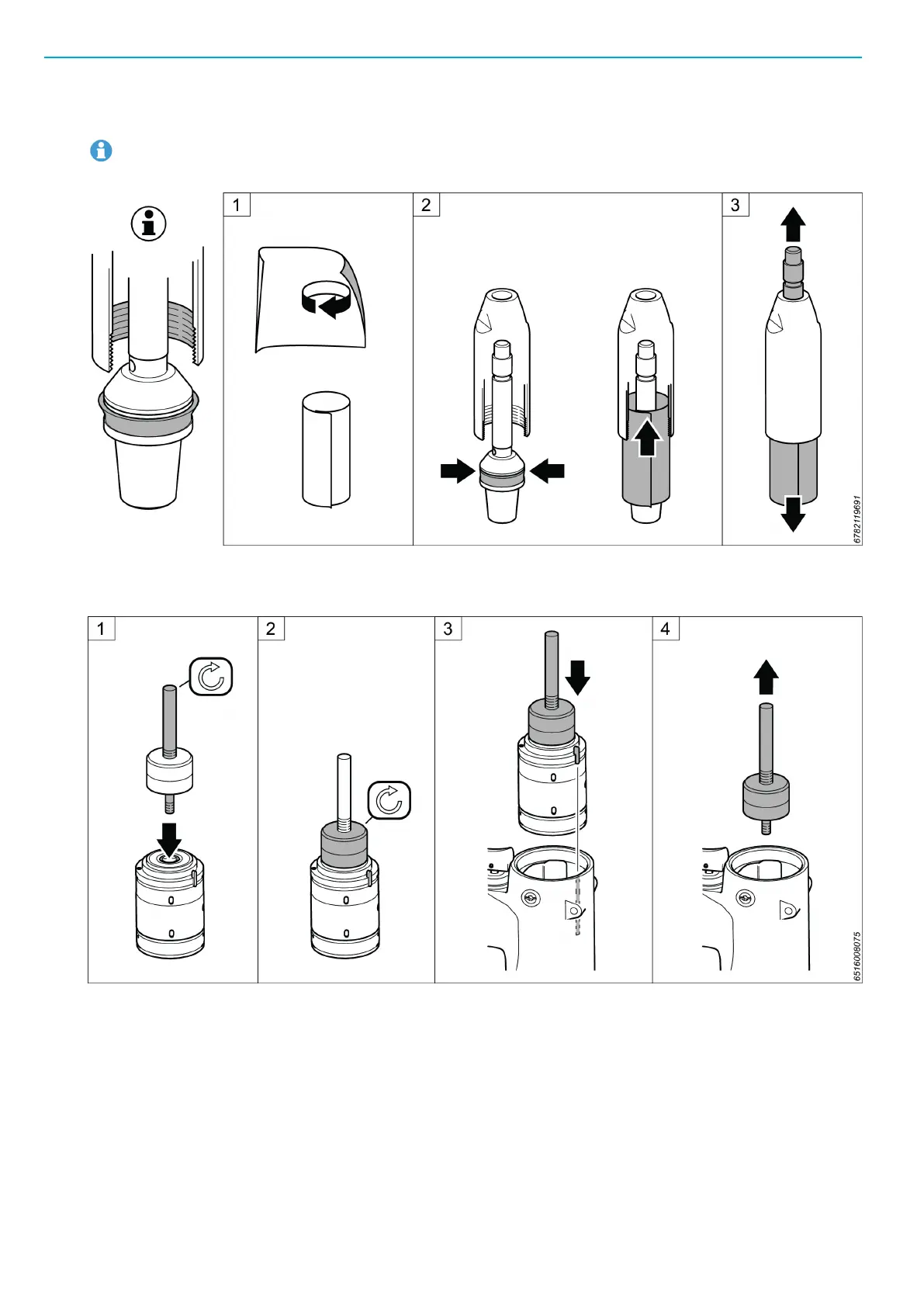

Assembling the AutoTrim valve
When re-assembling the AutoTrim after inspection or service, make sure to protect the piston sealing
from the housing thread.
Assembling motor in housing
