EP5PTI19 HR10-MT EN Operation

■

Stripped threads

■

Cross-threading

■

Re-hits

■

Drop in air supply

To connect the tool to a pressure control equipment we recommend using a Reporting Connection Kit, see

Optional accessories for Ordering number.

Note that the pressure control equipment does not measure torque!

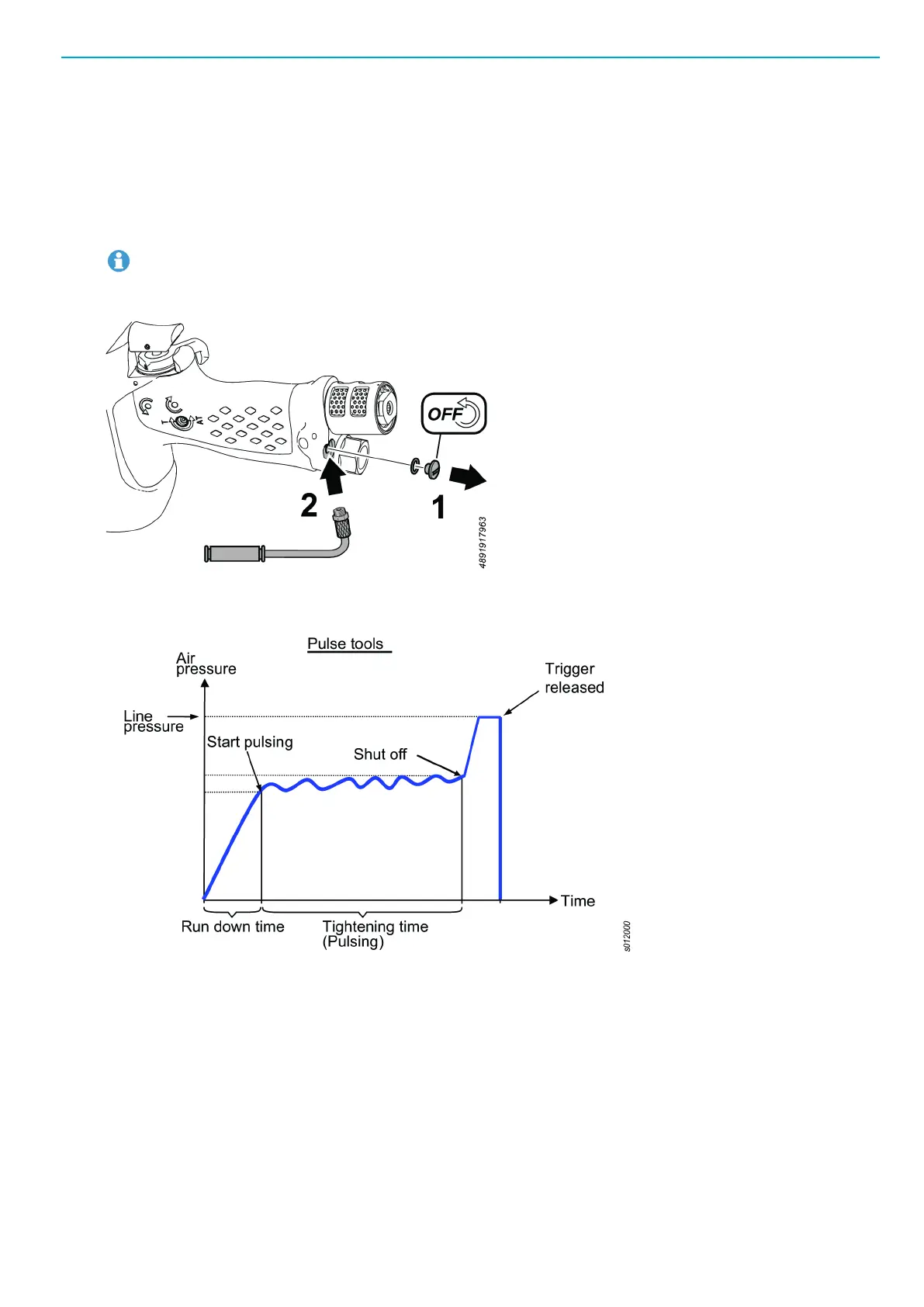

Assembly of the Reporting Connection Kit

Air pressure signal diagram

Optimizing the performance of your ErgoPulse tool

Recommended number of pulses

A Pulse tool well suited for your application should reach the target torque (with shut off) within 5-20

pulses. The number of pulses it takes for the tool to reach target torque can be measured with an ana-

lyzer. The tightening time can also be used as a guide to know if the tool is appropriate for your applica-

tion:

■

≤1 second for tools up to 30Nm

■

≈1 second for tools up to 80Nm

■

≈2 seconds for tools up to 150Nm

■

≈5 seconds for tools up to 450Nm
