4.4.13 Emergency stop status

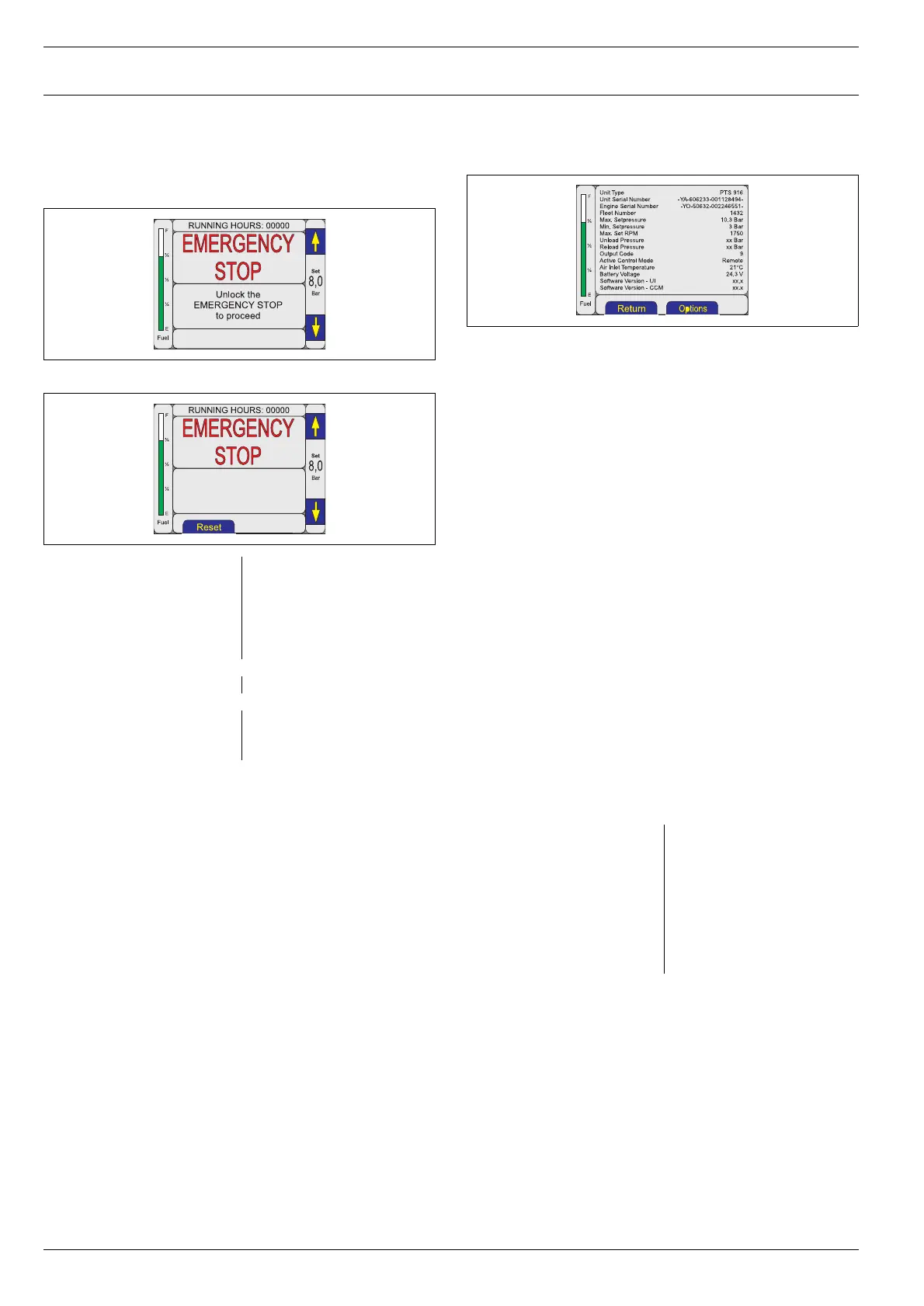

Screen A: Emergency Stop is pressed.
Screen B: Emergency Stop is unlocked.
Other actions and signals have no effect in this status.
4.4.14 System info status
This status gives a summary of the following parameters:
– Unit Type
– Unit Serial Number
– Engine Serial Number
– Fleet Number
– Maximum Setpressure
– Minimum Setpressure
–Maximum Set RPM
– Unload pressure
– Reload pressure
– Output Code: This code is directly proportional to the Maximum set
RPM, and gives a rough indication of the maximum Free Air
Delivery (FAD) with the current setting.
– Active Control Mode: Local control; Remote control; PC control.
– Air Inlet Temperature
– Battery Voltage
– Software version UI
– Software version CCM
Other actions and signals have no effect in this status.
S Warnings R Are shown on the screen
A ↓-button, press once R Set pressure - 0.1 bar
A
↑ -button, press once R Set pressure + 0.1 bar
A ↓-button, press continuously R Set pressure - 0.1 bar/second
A
↑ -button, press continuously R Set pressure + 0.1 bar/second
A Power OFF switch R End of operation
If Emergency Stop is locked:
A Unlock Emergency Stop R To screen B
If Emergency Stop is unlocked:
A Lock Emergency Stop R To screen A
A Reset button R To Ready for Start status (see
section 4.4.2)
A ↓-button, press once R Set pressure - 0.1 bar
A
↑ -button, press once R Set pressure + 0.1 bar
A Return button R To Ready for Start status (see
section 4.4.2)
A Options button R To options status (see section
4.4.15)
A Emergency stop button R To emergency stop status (see
section 4.4.13)
A Power OFF switch R End of operation

Atlas Copco PTS 916 Cd Specifications

General

Working Pressure	7 bar
Model	PTS 916 Cd
Engine	Caterpillar
Noise Level	76 dB(A)
Compressor Type	Rotary Screw
