Vehicle Diagnosis And Adjustment 38
Atlas Cyclops
Possibility to enter chassis height or kingpin
data, as envisaged by the manufacturer
Press F5 to display any
graphic animation
9.5 Thrust Out-of-center with Automatic Acquisition
The out-of-center procedure proves useful to compensate for rim and clamp
unbalance, however it is rare that you will need to.
This procedure can be enabled also after having diagnosed the vehicle, by
selecting the special option from menu (see part 9.2 - Preliminary Operations).
To carry out the out-of-center procedure, you should have performed the
preliminary operations, as explained in part 9.2.2.
The clamps must be positioned with the targets at approximately “12 o’clock”,

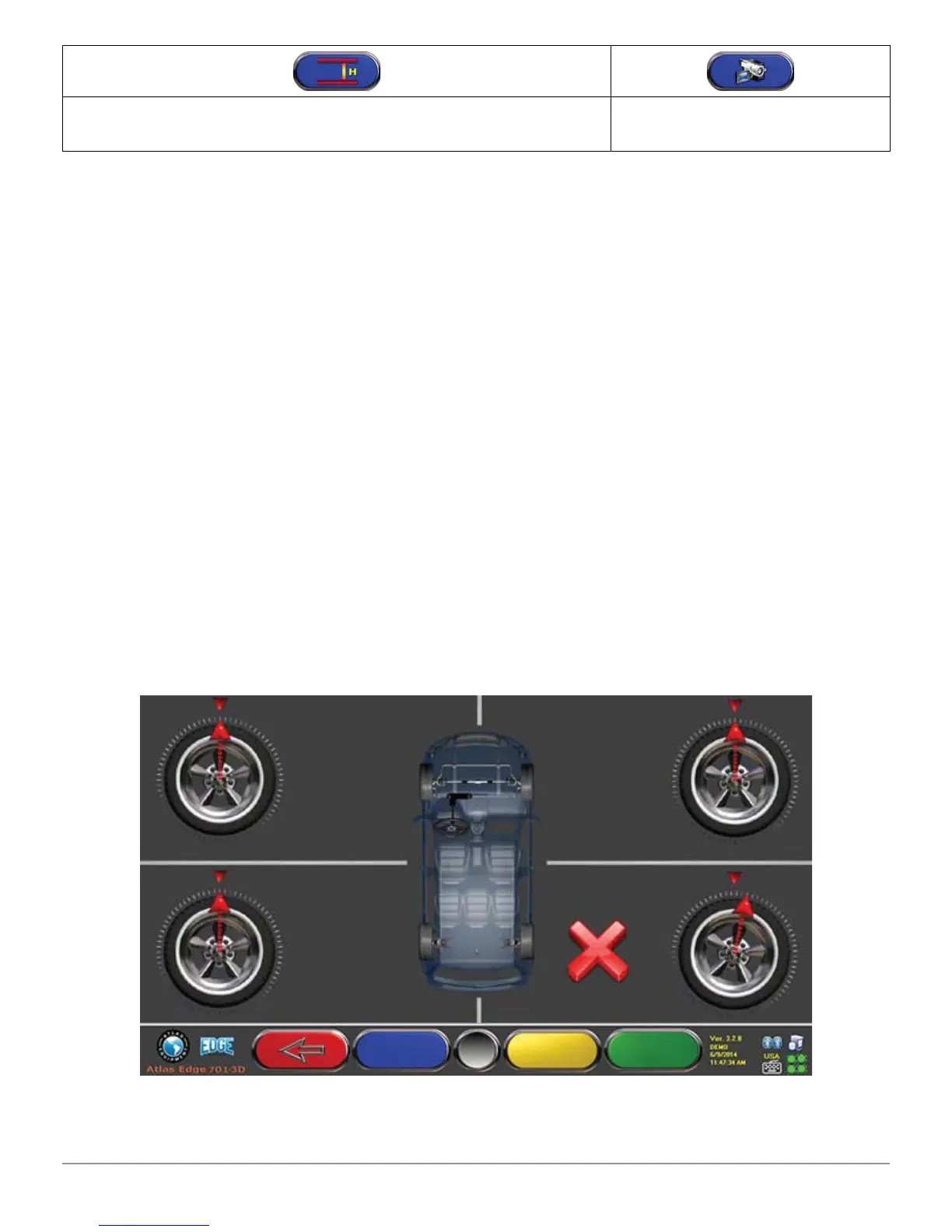

so that during run-out they are always clearly visible to the cameras. If one
or more positions are not acceptable, the error message screen indicated
below appears, which shows an example of an improperly positioned rear right
clamp. Simply position the clamp at “12 o’clock”: the program will proceed
automatically.
If instead you press F1, the error is not considered. You may not be able to
complete the procedure when performing the run-out.
Figure 2 5
