Atlas Cyclops User Manual

Vehicle Diagnosis And Adjustment 44
Atlas Cyclops

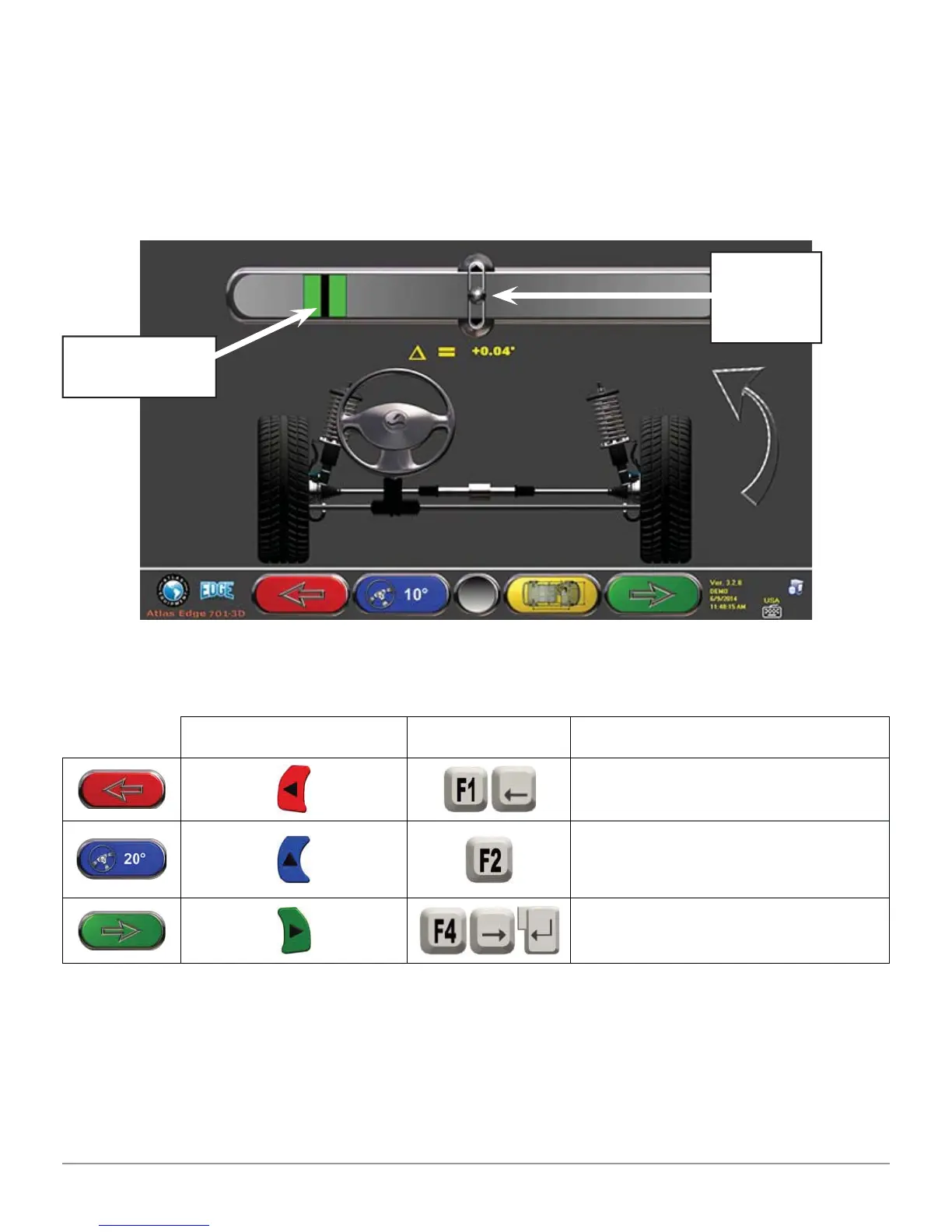

9.8 Steering Procedure
After wheels have been aligned (see part 9.7), the steering procedure can be
carried out in order to defi ne:
• Caster • Kingpin • Included angle
Figure 3 3
DETECTOR KEYPAD PC KEYPAD DESCRIPTION
Repeat alignment and
leveling procedure (part 9.7)
Press this key to select
the type of steering
to be made. (*)
It displays vehicle diagnosis
page (part 9.9)
(*) Type of steering to be made:
• Steering at 20°
• ACK steering (at 20° with steering geometry)
• Steering at 10°
• Max. steering
Steering
Target Point
Steering
Level
Indicator
