Vehicle Diagnosis And Adjustment 53
Atlas Cyclops
9.14 Additional Functions Menu
To carry out some additional operations or to repeat some program phases, in
case they have not given satisfactory outcomes or have not been carried out at
all, select F1
from the summary page (see part 9.13).

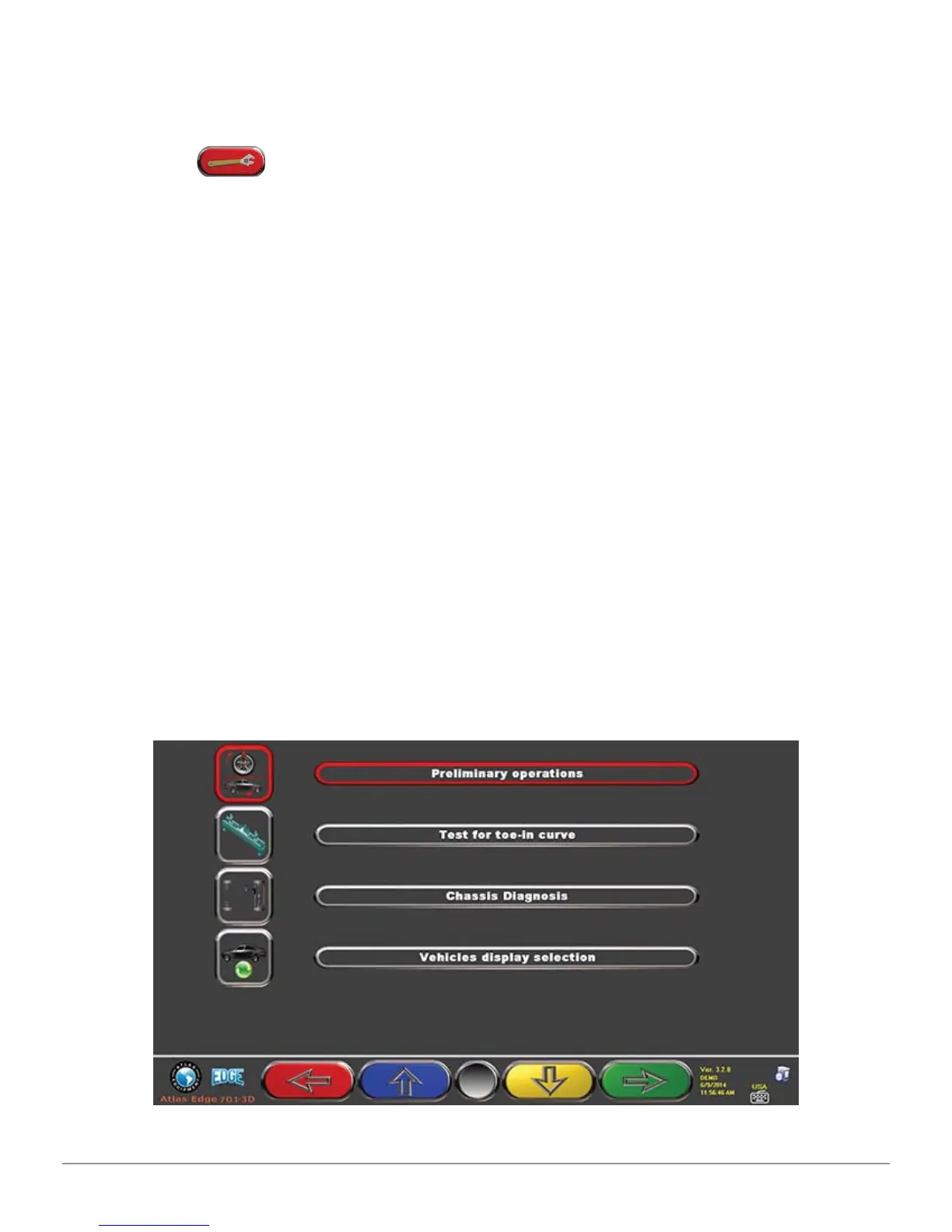

You will access an additional function menu allowing you to carry out the
following procedures:
PRELIMINARY OPERATIONS: see part 9.2.1
TOE CURVE: Toe curve can be adjusted by following the displayed fi gures, as
follows:
• Settle vehicle, press F4
• Position the special tool under front axle, press F4
• Adjust front partial toe, as recommended by the manufacturer, press F4
• Remove tool from axle, and press F4. Program will go back to the
adjustment phase.
CHASSIS DIAGNOSIS: A graphic-geometrical representation of the axles of the
vehicles you are working on can be displayed.
DATABASE: it enables to display the vehicle selection page (9.3) and to select a
different vehicle if necessary
CASTER ADJUSTMENT: see part 9.12.
Figure 4 3
