Vehicle Diagnosis And Adjustment 52
Atlas Cyclops

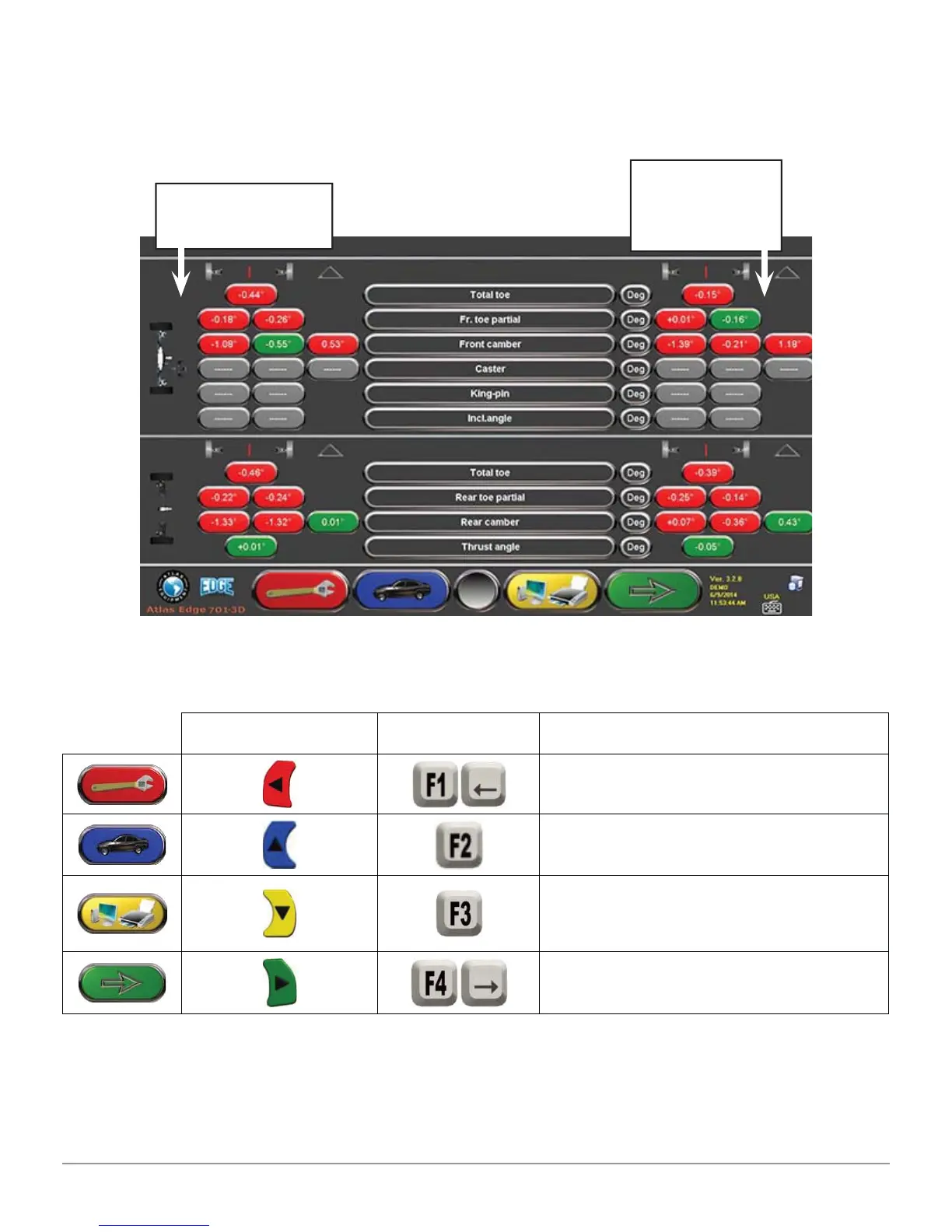

9.13 Summary of DIAGNOSIS and ADJUSTMENT data
This page is displayed when vehicle adjustment has been completed, after
pressing F4 in the front adjustment phase, see Figure 39.
Figure 4 2
Detector Keypad Pc Keypad Description
It displays the additional
function menu. (See part 9.14)
It displays vehicle technical
speci cation page.
Operations completed!
Customer data entry and
printout. (See part 9.15)
It returns to rear adjustment
phase. (See part 9.11)
Summary of
diagnosis data
Summary of
adjustment
carried out
