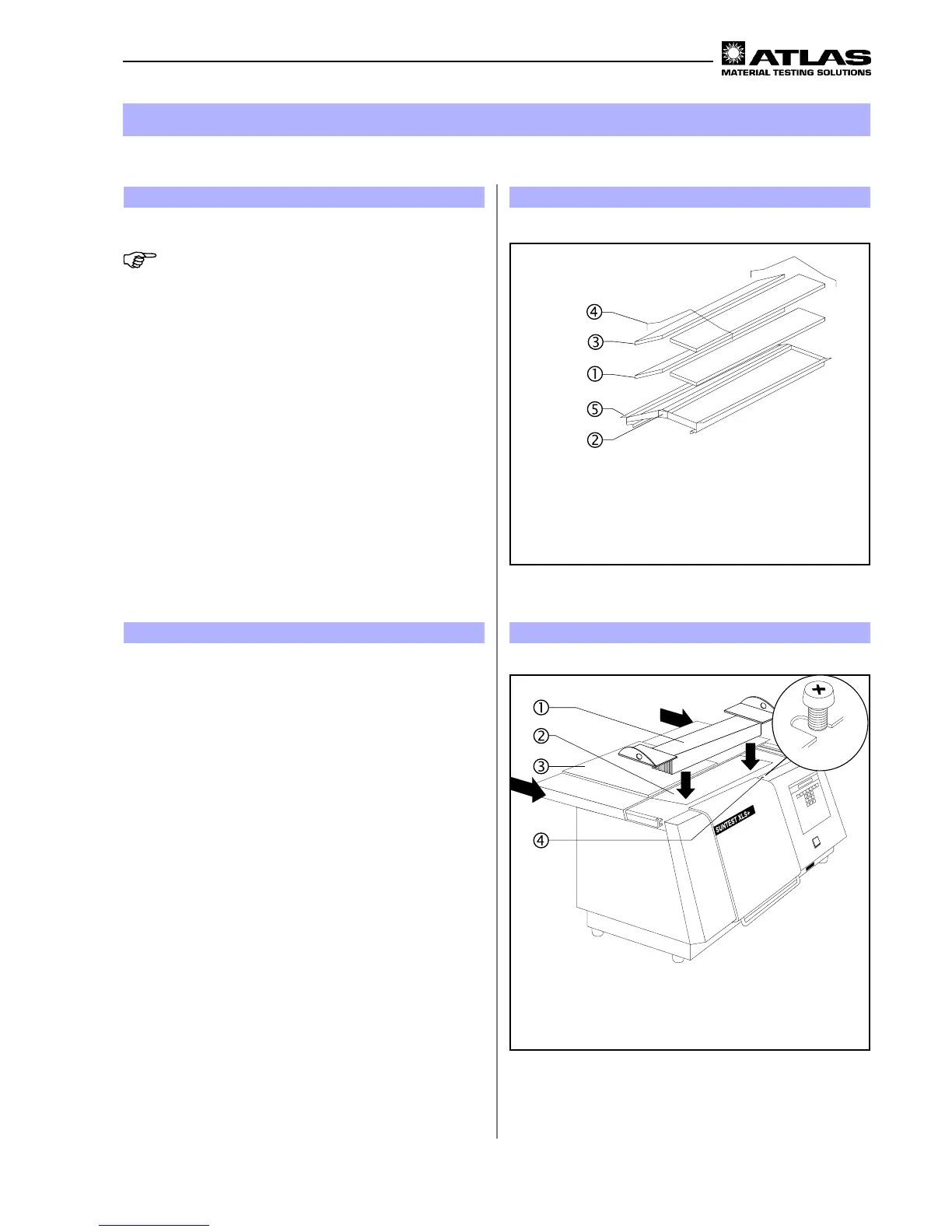

Operating manual SUNTEST XLS / XLS+
6
Commissioning
!
UV mirror (transparent)
"
Holding rack
#
Light mirror (mirror coating)
$
Retaining clips
%
Holes for the retaining clips
Figure 15
6.2.5 Installation of the reflector mirror
NOTE!
The reflecting mirrors are pre-mounted. When cleaning
or replacing, install the reflectors in the sequence descri-
bed.
Clean the reflecting mirror before installation with a soft
leather cloth or a brush.
1. First, place the transparent UV mirror
!
in the hol-
ding mounting
"
.
2. Then, fit the light mirror
#
.
3. Fix the mirrors by inserting the two retaining clips
$
in the holes
%
.
4. Insert the holding rack
"
in the radiation compartment.
!
Absorber
"
Assembly compartment
#
Covering hood
$
Safety screw
Figure 16
6.2.6 Close the assembly compartment
1. Place the absorber
!
at the two holding shackles in
the assembly compartment
"
(arrow 1).
2. Hold the covering hood
#
on the outer sides and clo-
se it (arrow 2).
3. Tighten the safety screw
$
with a cross-slotted
screwdriver.
4. Check for correct, sealed seating of the covering
hood
#
.
2
1
2
1
1
