Atmos A 161 - 4 General Operation ATMOS a; C 161; 261 Aspirator; Suction Hose; Adjust Vacuum; Suction Procedure

8
● Only for C 161 / 261 Aspirator
Adjustyourdesiredvacuumbyclosingngertip(
9
) and
auxiliary air vent (
8
). The vacuum is then generated.
Open the regulating valve / vacuum adjustment (page 4,
) until the vacuumgauge shows the desired vacuum
value
● Only for A 161 / 261 Aspirator
Adjust your desired vacuum by turning the three-steps
adjustment (page 4,
) to the suitable position.
-25 kPa* low, -55 kPa*medium, -75 kPa* high
* depends on daily atmospheric pressure and ambient condi-
tions
● Choose a suction catheter of the right size (
10
, which are
available fromATMOS in 3 di󰀨erent sizes) or a suction
instrument which is only available from specialized dealers.
4.0 General operation
4.2 Adjust vacuum
4.1 Suction hose
● Join the suction hose (
7
) and the suction catheter (
10
)bymeansofthengertip(notincludedindelivery)(
9
).
4.4 Hose rinsing
● Dispose the suction catheter and rinse the
suction tube with clean water or disinfec-
tion liquid after every suction procedure. We
recommend to use the rinsing bottle in which
you can carry clean water along with you.
8
Important
notes on safety
● Makesurethatthecollectioncanister
is evacuated in time. As soon as the
canisterishalf-lled,itmustbeemptied
(this principle proves right in all application
ranges).
● Attention: Suction procedures in the
respiratory tract may only be
implemented after appropriate instruction
byhospitalorspecialsta󰀨.
● When the maximum level is exceeded,
the overow safety reacts and suction is
stopped. Empty the canister.
● Checkthevacuumreadoutregularly!
● If secretion has been soaked up into the
pump due to improper use or manipulation,
the device must be repaired from ATMOS
or a service authorised by ATMOS.
● Foraspirationuseonlyapplicablesuction
catheters, attachments or a medical aspira-
tion sets.
● Whilstaspiratingpleasepayattentiontothe
llinglevelofthesecretioncanister.
AUXILIARY AIR VENT OPEN =
suction procedure is interrupted (e.g. when leading in the catheter)
AUXILIARY AIR VENT CLOSED WITH THE FINGER = suction

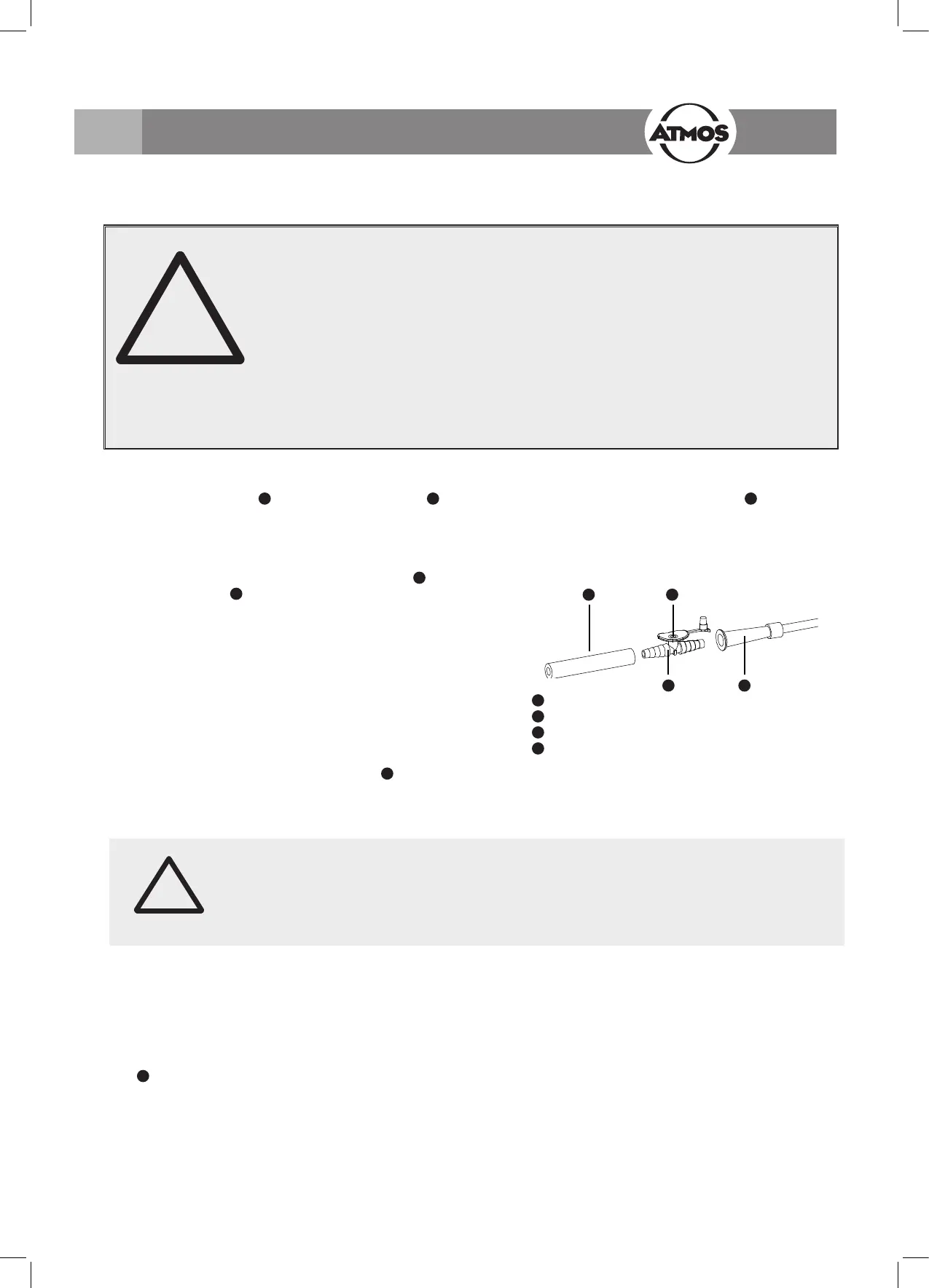

Fig 6.
7
Suction hose
8
Auxiliary air vent
9
Finger tip
10
Suction catheter
Prior to these notes please read the foregoing chapter of your respective version of the ATMOS A / C 161 / 261 Aspirator!
4.3 Suction procedure
● Then, lead in the catheter in the same way as shown by
yourhospitalsta󰀨andstartthesuctionprocedure.
● Control the suction procedure with the auxiliary air vent
(
8
)onthengertip.
 ThehydrophobicDDSbacteriallter/oversuctionstop
avoids ingress of moisture. Nevertheless you should empty
thecanisteratalllevelof1/2.
● The secretion canister system is designed the way that
secretionsowslaterallytothewall.Thereforethefoam
formation in the canister is reduced.
!
!
7 8
9 10
