g) rotate clockwise the handwheel (H) to stop the stroke of the striking plate ascent in the wished
position then block the screw (M) (Fig. 9);
h) move the selector (G) to position AUTOMATIC and fully turn the handwheel counter clockwise up
to its highest limit (1 turn approx.) (Fig. 10)
i) press either the push-button (I and L2) to move the travelling head to left or the push-button (O
and L1) to move the travelling head to right till unclamping the cutting-die (Fig. 11)
At this point the machine is perfectly adjusted to employ whatever cutting-die of the same height as the
one used for the stroke-end adjustment.
IMPORTANT: If for any reason you should use cutting-dies with different heights, it will be necessary to
repeat the previous procedure.

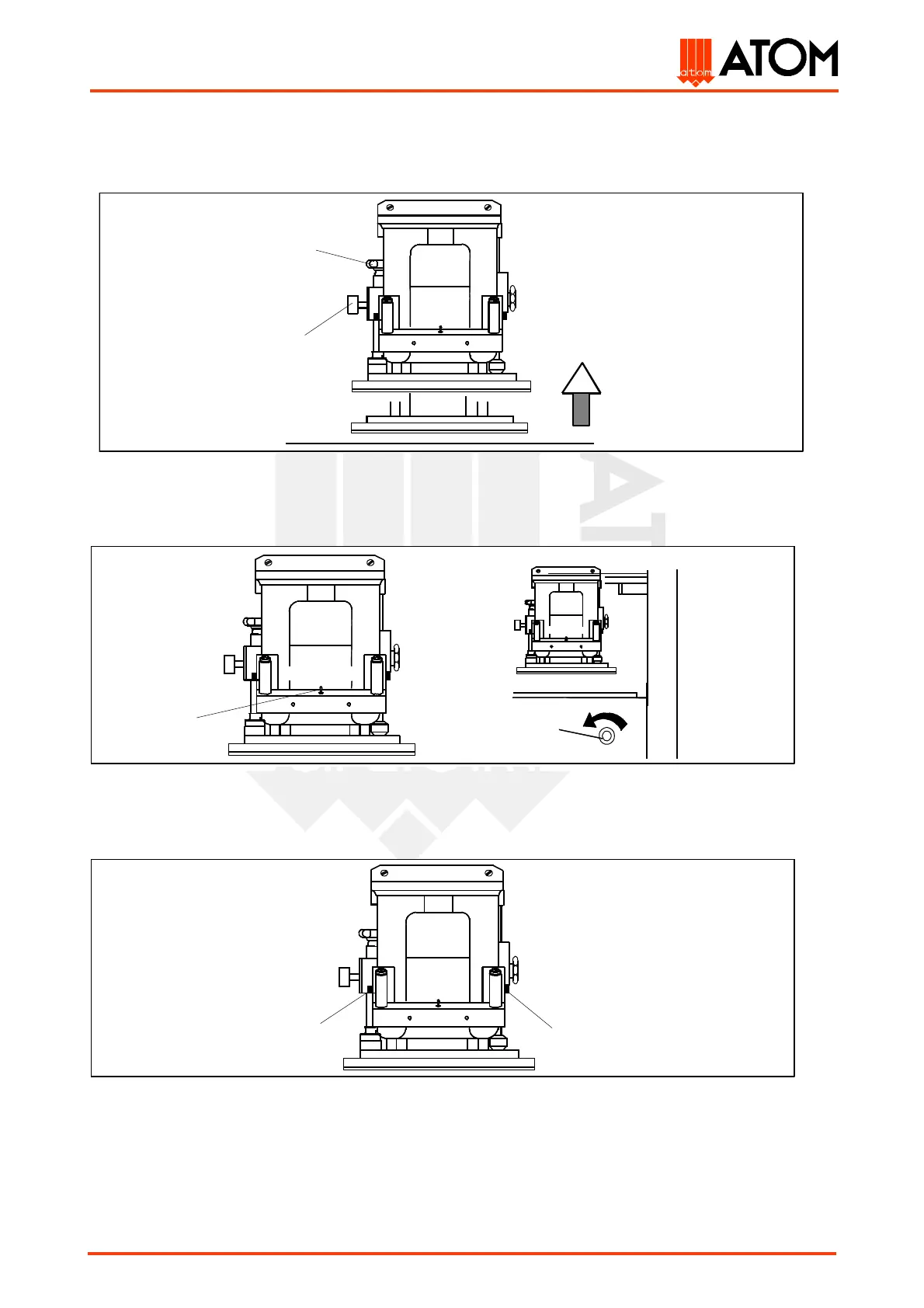

Fig. 11
(I)
(O)
Fig. 10
(V)
(G)
AUTOMATIC
Fig. 9
(M)
(H)
