Attacus AT-200 - Page 14

AT
12
Hex wrench
1) Open hardware pack 1.
2) Connect the lead wire to the console cable, pull them through the
right strut of the console, pull out the lead wire from the right strut and
then fix the console cable to the top of strut. Please remove the lead
wire then.
3) Put the right strut on the frame.
4) Use part A, B & C (2 of each) and connect the strut to the frame. Make
sure all screws and washers are well posion and lock them lightly.
5) Repeat step 3~4 to complete the assembly of the le strut.
Hardware pack for step 2
QtyDescriponParts
A
B
C
TypeIllustraon
4
4
4
Buon Head Socket Bolt (95L)
Flat washer (Ø10)
Nylon nuts (M10)
Screw
Washer
Nut
• Put the console strut on the frame with great care to avoid any damage to the console cable.
• Put the console strut on the frame with great care to avoid any damage to the console cable.

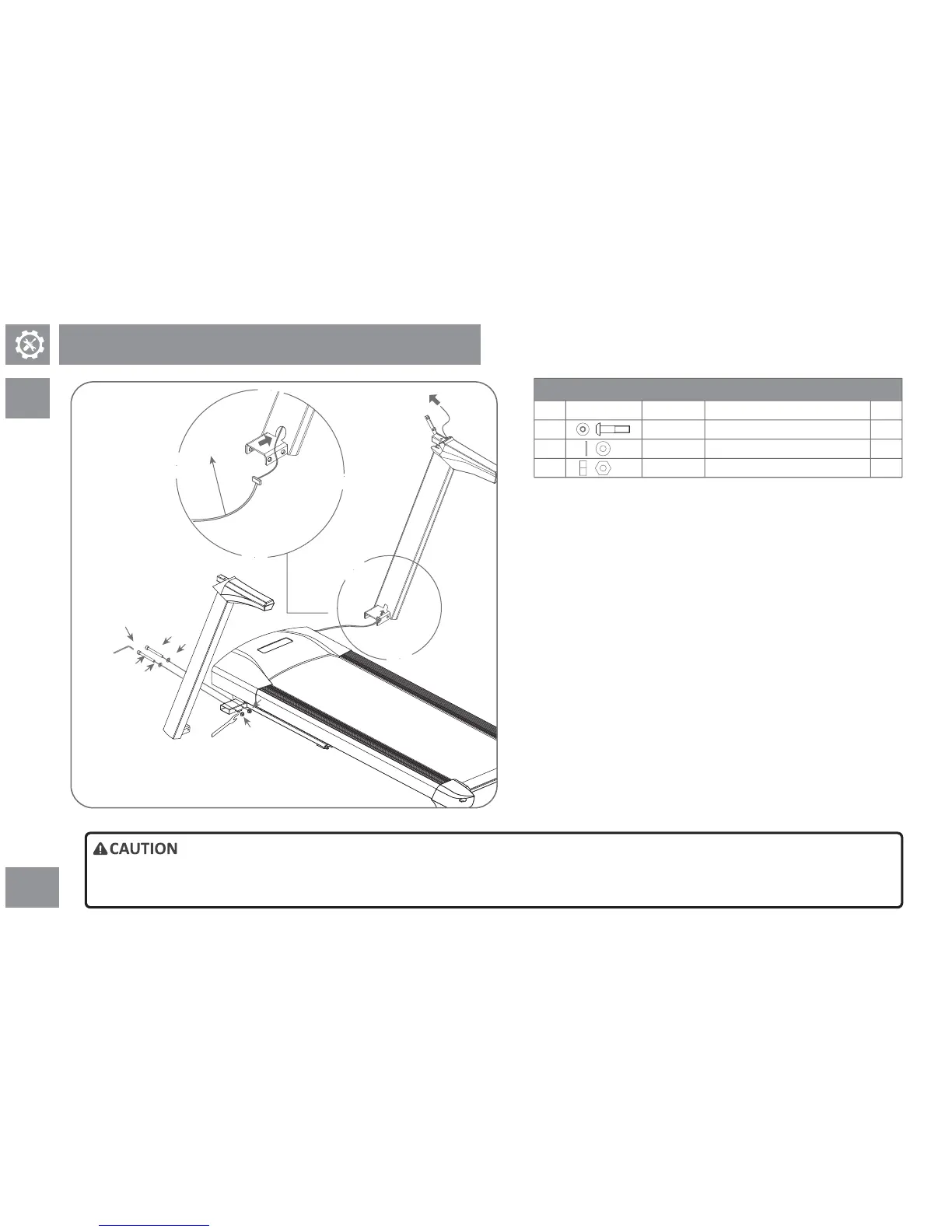

Step 2 of Assembly Procedure
Console
cable
B
C
A
A
B
C
Single side open end wrench
