Audi A4 2015 Workshop Manual

10 Mechatronic unit
⇒ “10.1 Exploded view - mechatronic unit”, page 99
⇒ “10.2 Removing and installing oil pan”, page 100
⇒ “10.3 Removing and installing mechatronic unit”, page 102

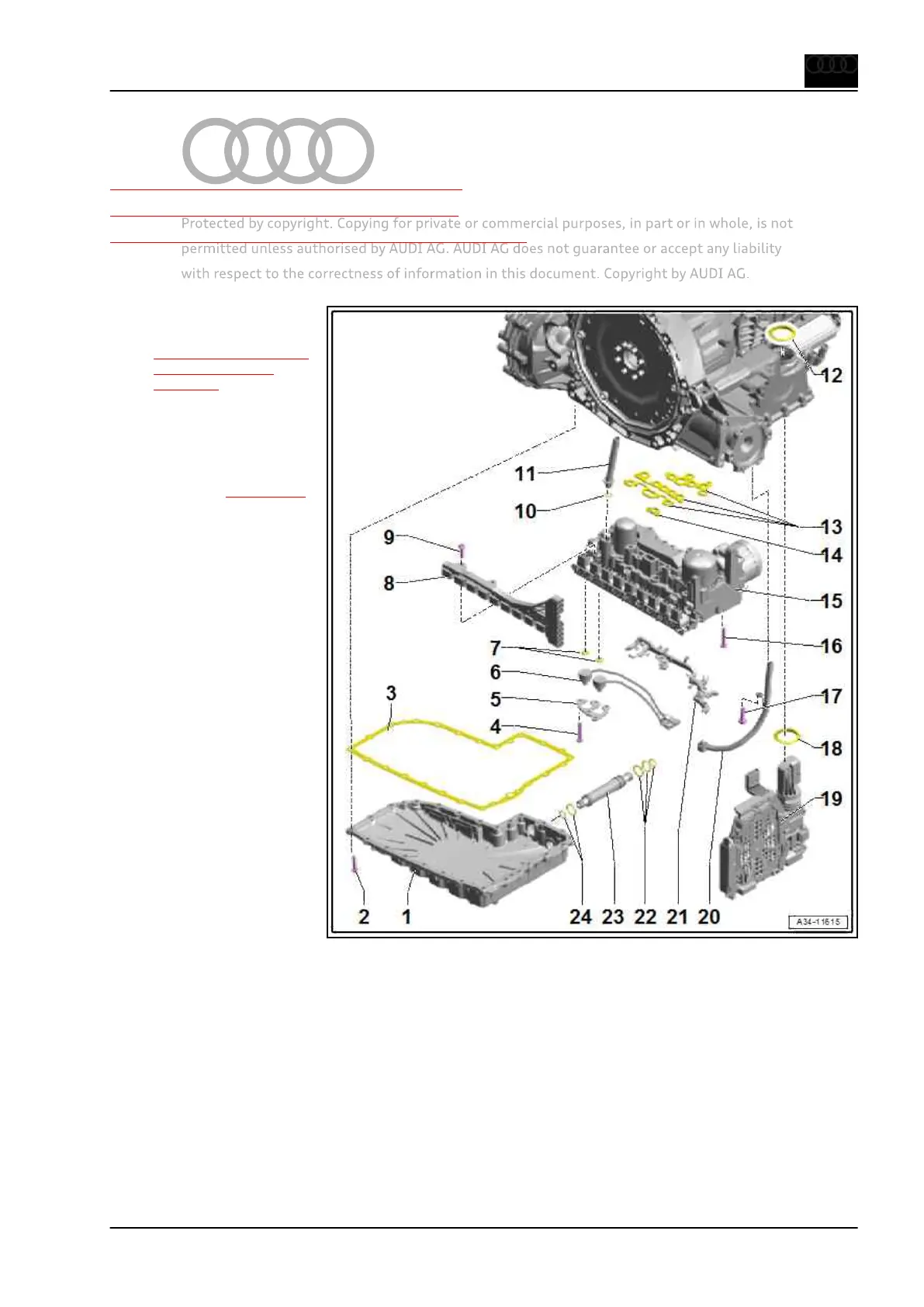

10.1 Exploded view - mechatronic unit
1 - Oil pan
❑ Removing and installing
⇒ “10.2 Removing and
installing oil pan”,
page 100
2 - Bolt
❑ M6 × 30
❑ Renew after removal
❑ Tightening torque and
sequence ⇒ page 100
3 - Gasket
❑ Renew after removal
4 - Bolt
❑ Renew after removal
❑ Tightening torque and
sequence ⇒ Servicing
7-speed dual clutch
gearbox 0CJ, 0CK, 0CL,
0DN, 0DP; Rep. gr. 34 ;
Mechatronic unit; Explo‐
ded view - mechatronic
unit
5 - Bracket
6 - Hydraulic pressure sender
1 - G545- and hydraulic pres‐
sure sender 2 - G546-
❑ Removing and installing
⇒ Servicing 7-speed
dual clutch gearbox
0CJ, 0CK, 0CL, 0DN,
0DP; Rep. gr. 34 ; Me‐
chatronic unit; Exploded
view - mechatronic unit
7 - Seals
❑ Renew after removal
8 - Contact element
9 - Bolt
❑ Renew after removal
❑ M6 × 25
❑ 3 Nm + 90°
10 - O-ring
❑ Renew after removal
Audi A4 2015 ➤ , Audi A4 Avant 2015 ➤ , Audi A4 China 2016 ➤ , Audi A4 a ...
7-speed dual clutch gearbox 0CJ, 0CK, 0CL, 0DN, 0DP - Edition 08.2018
10. Mechatronic unit 99
