Connectable equipment being
used
Position of output
selector switch
Where to connect the RCA audio cable
Device with phono input PHONO
Phono input jack and ground (earth) terminal of
connectable equipment
Device without phono input LINE
AUX or line input jack of connectable
equipment
PC sound card LINE Sound card’s line input jack*
* An audio adapter (sold separately) may be required to connect the RCA audio cable to the PC sound card’s line
input jack.

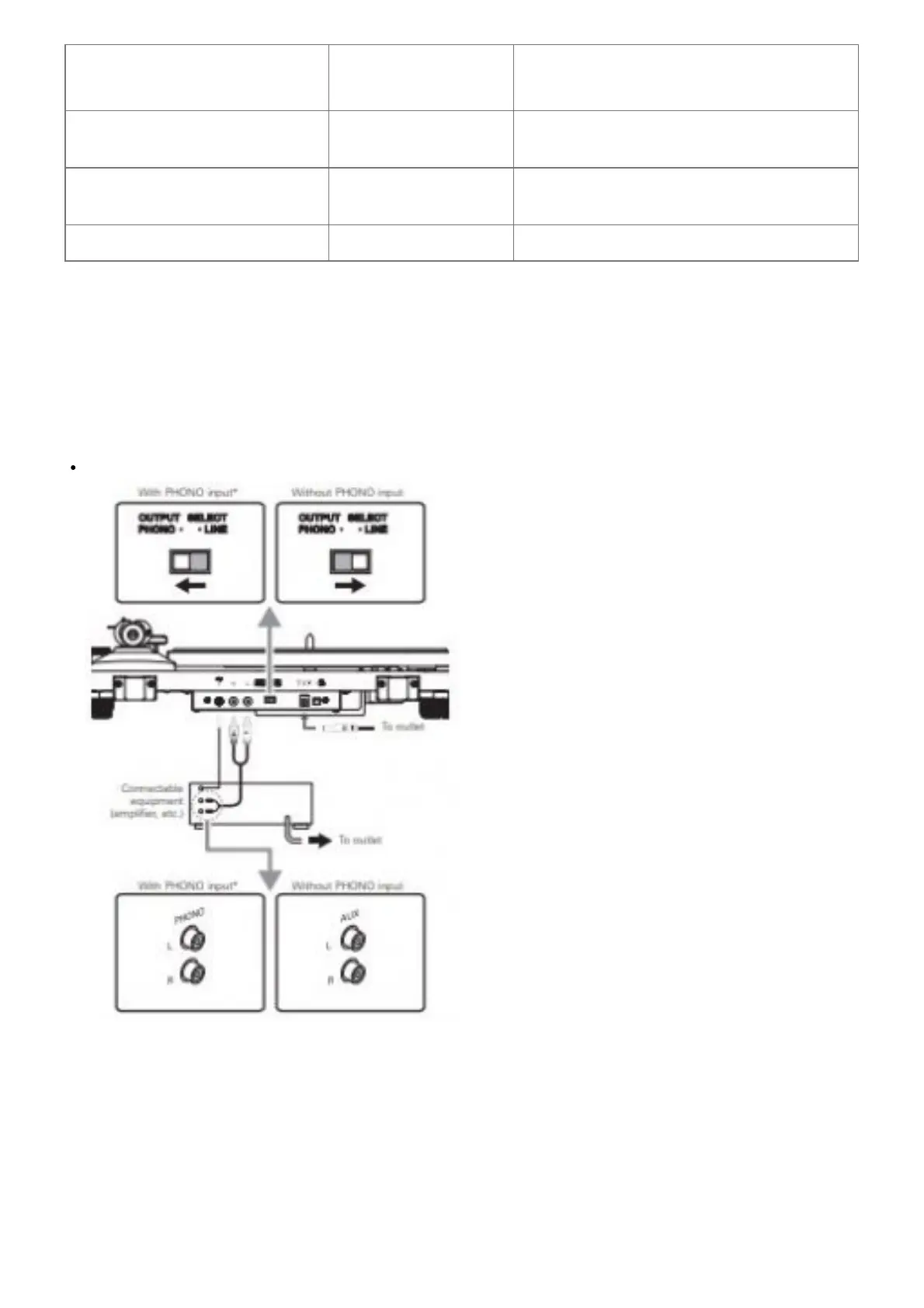

Connecting to connectable equipment (active speakers, amplifiers, etc.) Align the settings for the output
selector switch and connect the RCA audio cable to an input jack that is compatible with the connectable
equipment you are using (amplifier, receiver, active speakers, sound card, etc.).
The RCA audio cable’s red jack is for the right (R) channel, and the white jack is for the left (L) channel.
* Depending on the equipment you are connecting, a ground (earth) terminal may exist near the phono input jack.
If this is the case, connect to it using the ground line from the RCA audio cable. This will help prevent a low
humming noise that might otherwise be heard during playback.
Connecting the AC adapter
1. Connect the AC adapter’s cord to the power input jack.
2. Plug the AC adapter into an outlet.
