1 Counterweight Balances the tonearm and adjusts to provide the proper tracking force
2 Tracking force gauge ring Use to adjust and set the tracking force.
3 Tonearm lift Moves the tonearm vertically to and from the face of the record.
4 Tonearm rest with clamp Use the clamp to secure the tonearm so that it does not move.
5
Anti-skate control dial While the record is playing, a force acts on the stylus tip to pull it inward. This for
ce can be counteracted by setting the same values for anti-skate and the tracking force.
6 Tonearm lift control lever Operates the tonearm lift.
7 Tonearm
8
Locking ring Rotate the ring to the left (counterclockwise) to secure the headshell. To remove the
headshell, rotate the ring to the right
9 9 Headshell and cartridge The cartridge* is attached to the headshell (AT-HS4)
* AT-LPW40WN: AT-VM95E / AT-LPW30TK: AT-VM95C
Preparation for use

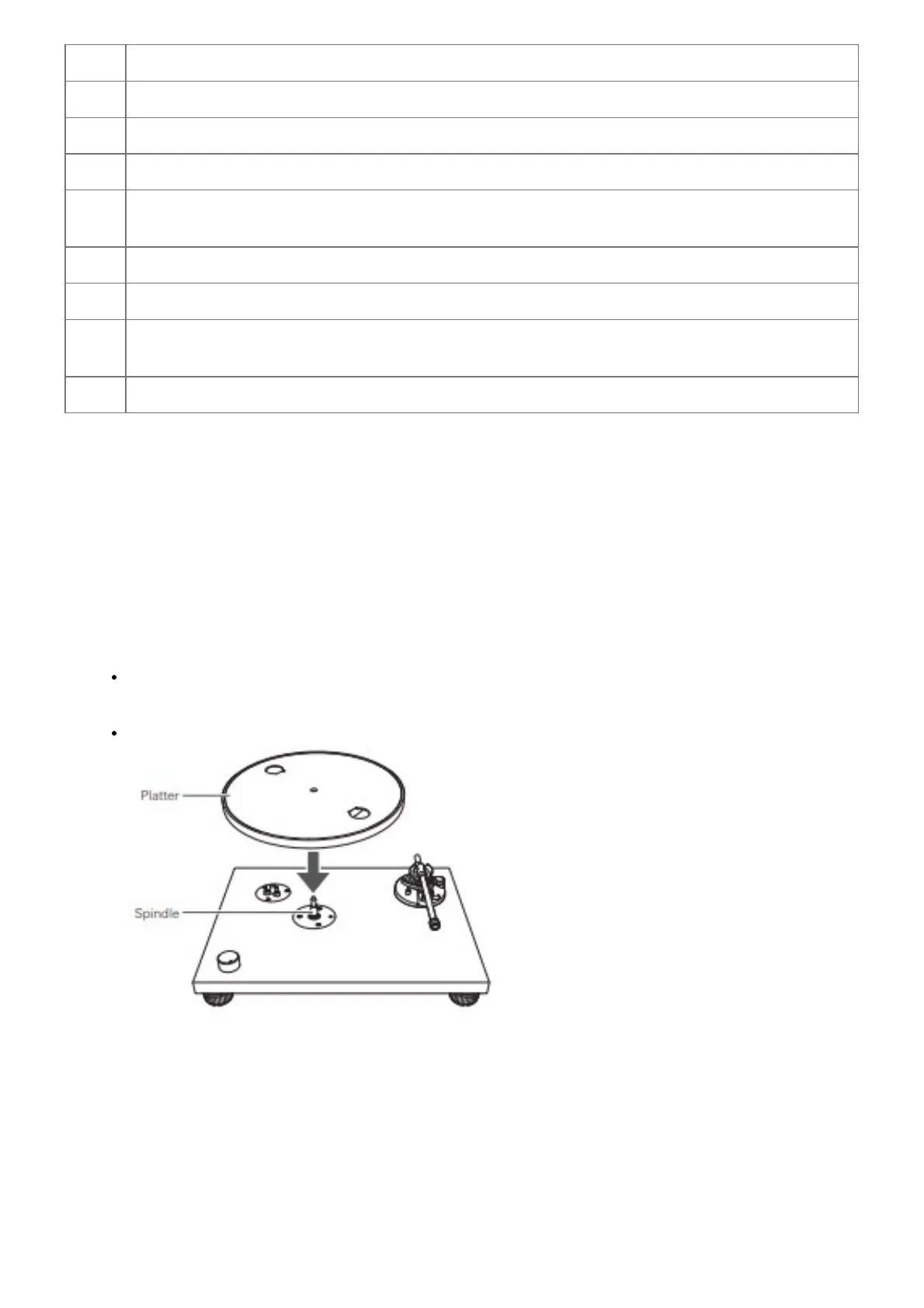

Placing the platter
This product requires some assembly before using it for the first time. Do not connect the AC adapter until
assembly is complete.
1. Set the platter on the spindle.
To avoid damaging the spindle when seating the platter, align the position of the spindle and the platter’s
hole, and then slowly seat the platter.
Make certain that the platter is fully seated on the spindle.
2. Install the belt to the platter drive ring under the platter making sure the belt is flat when seated, and then
attach the belt to the motor pulley. · Make sure that the belt does not get twisted.
