Audix RAD-360 - RAD-360 Bodypack Transmitter Description; Bodypack Transmitter Features Front and Back; Bodypack Transmitter Additional Components

8

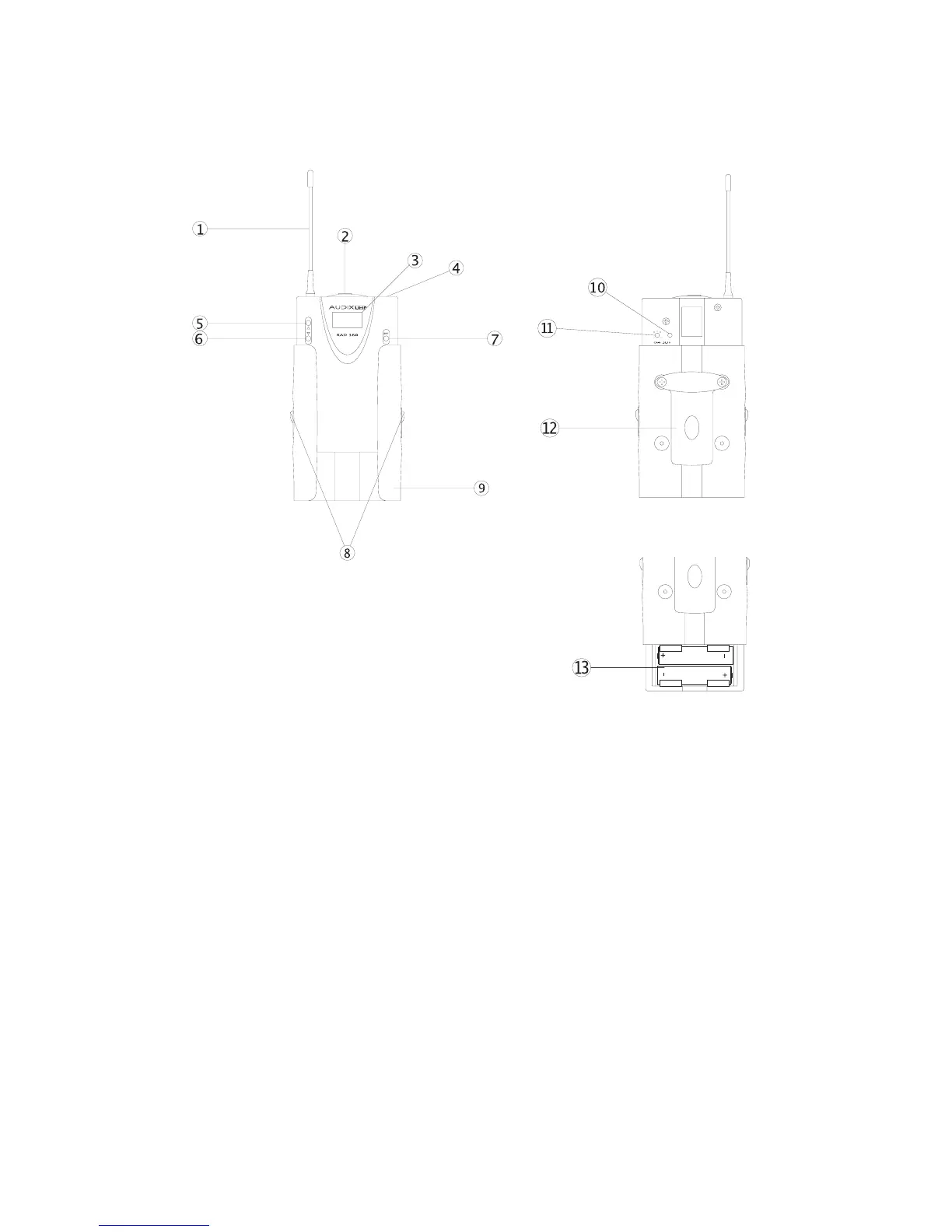

Description of RAD-360 Bodypack Transmitter
1. Antenna
2. Power switch
3. LCD Display Screen: Displays status of transmitter including
Channel and Battery Life.
4. Mic or guitar cable connector
5. UP button: Changes parameter “up” or increase.
6. DOWN button: Changes parameter “down” or decrease.
7. SET button: This button is used to change and store settings.
8. Sliding cover latches
9. Sliding protective metal cover
10. Three position pad
11. Gain potentiometer 20dB
12. Belt clip
13. Battery compartment
(note polarity)
Front
Back
Battery Compartment
