5. Connect cables according to order-related wiring diagram.

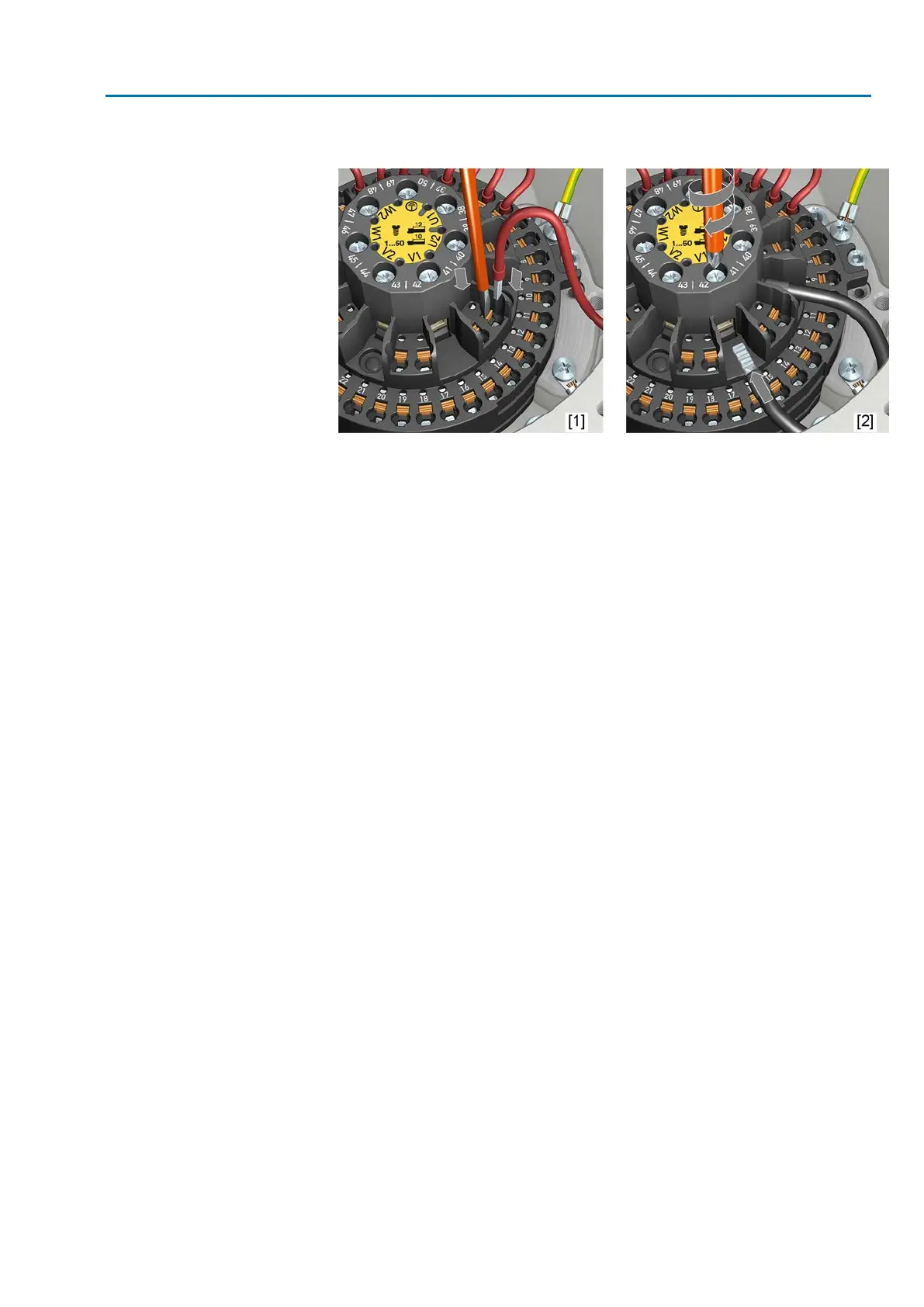

Figure 26: Connect cables to terminal carrier
[1] Fitting control cables into spring clamp terminals
[2] Tightening power terminals
Information
For service purposes, each spring clamp terminal is equipped with a test contact
located above the numbering.
Information
For flexible cables: for screw-type terminals, use wire end sleeves according to DIN
46228. For spring clamp terminals, connection is possible without wire end sleeves.
31
SAEx 07.2 – SAEx 16.2/SAREx 07.2 – SAREx 16.2 Control unit - electromechanical
ACExC 01.2 Intrusive Modbus RTU Electrical connection
