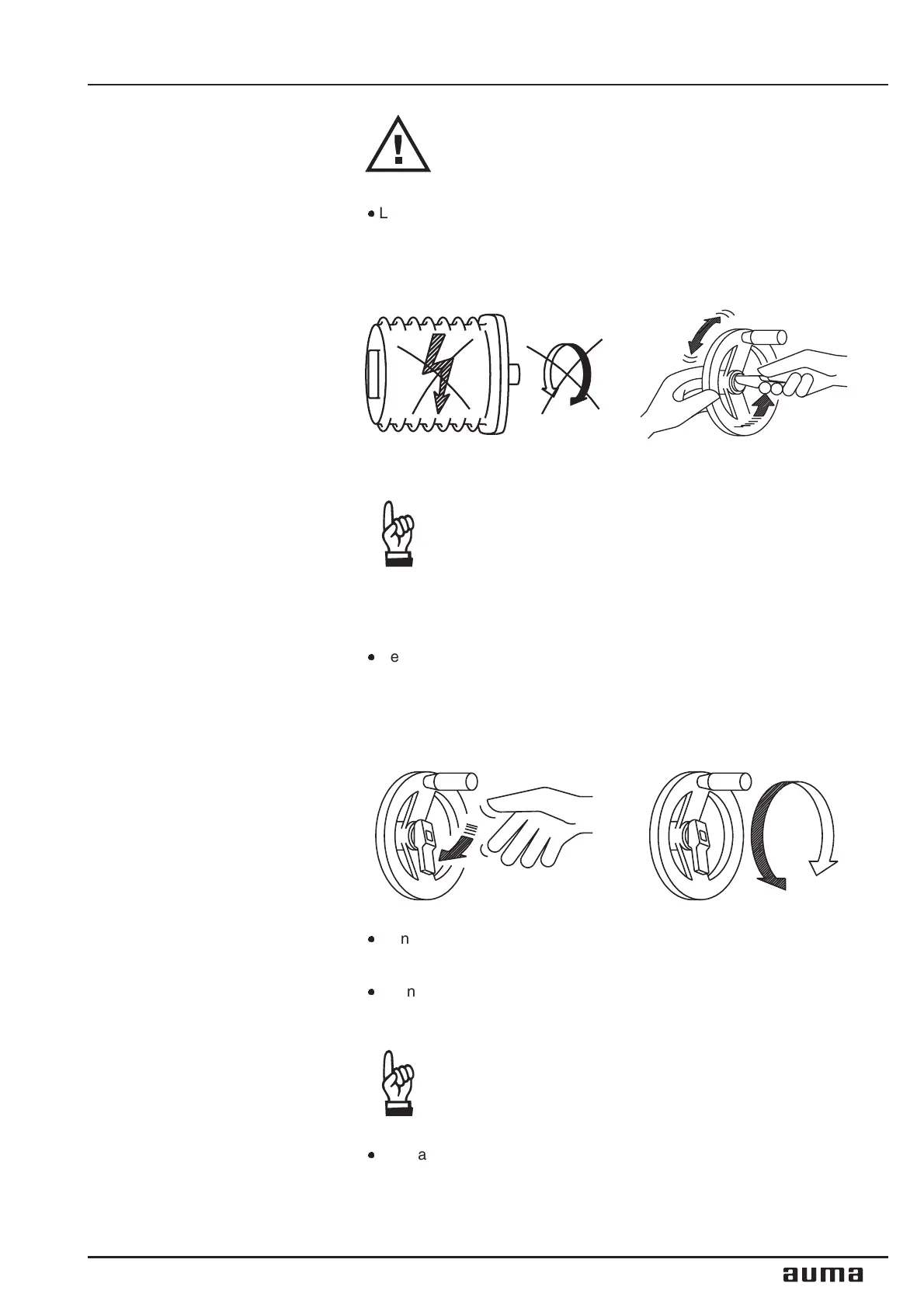

6. Manual operation Manual operation should only be engaged when motor is
not running. Switching over while motor is running may lead
to damage at multi-turn actuator (figure C)!
.
Lift change-over lever in the center of the handwheel up to max. 85°,
while slightly turning the handwheel back and forth until manual drive
engages (figure D).
Manual force is sufficient for operating the change-over
lever. The use of an extension is neither necessary nor
permitted. Excessive force may damage the change-over
mechanism.
.
Release change-over lever (should snap back into initial position by
spring action). If change-over lever does not snap back, assist with hand
to assure that the lever comes to the initial position
(figure E).
.
Manual operation remains engaged until motor is started again. Then
motor operation is engaged automatically.
.
Turn handwheel into desired direction (figure F).
Only operate manually when change-over lever is in its
initial position!
.
Manual operation is automatically disengaged when motor is started
9
Multi-turn actuators SAM Ex 07.1 - SAM Ex 16.1 / SARM Ex 07.1 - SARM Ex 16.1
Operation instructions AUMA MATIC Ex
Figure DFigure C
Figure E Figure F
