7. Connect cables according to order-related wiring diagram.
Information: Only connect control cables if binary signals are required in
addition to the Profinet cables.

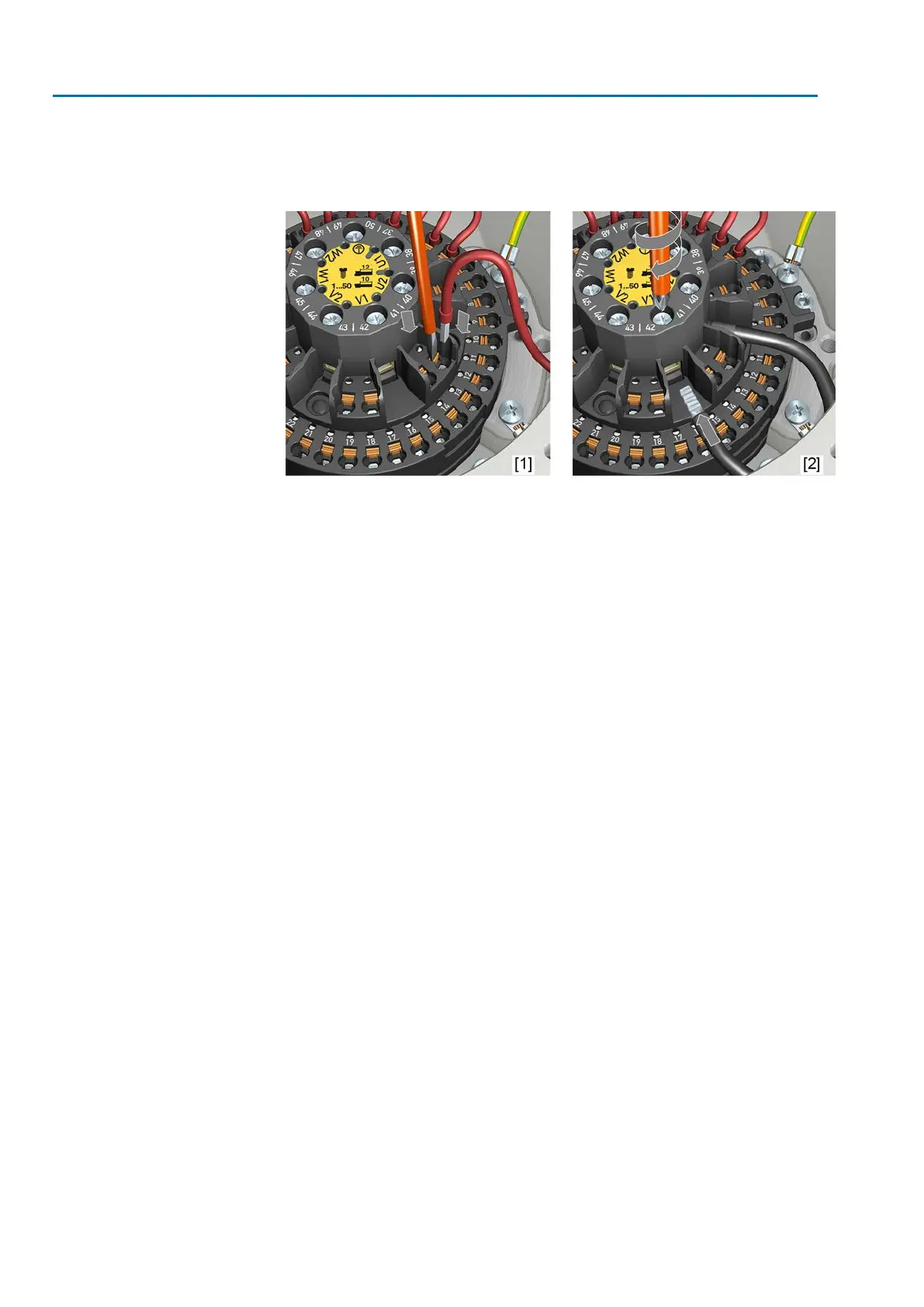

Figure 23: Connect cables to terminal carrier.
[1] Fitting control cables into spring clamp terminals
[2] Tightening power terminals
Information
For service purposes, each spring clamp terminal for control cables is equipped with
a test contact located above the numbering.
32
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
Electrical connection ACExC 01.2 Non-Intrusive Profinet
