AUMA SAREx 07.2 - KT;KM Electrical Connection

Table 20: Versions of the AUMA plug/socket connector
For description
and assembly
refer to chapter
PropertiesFigureElectrical con-
nection
➭ page 28,
KT/KM electrical
connection
Plug-in integral terminal connection
with enlarged terminal compartment
KT
➭ page 37,
KP/KPH electrical
connection
Plug/socket connector with terminal
board
KP
➭ page 42, KES
electrical connec-
tion
Plug-in terminal connection with en-
larged terminal compartment
KES
6.3. KT/KM electrical connection

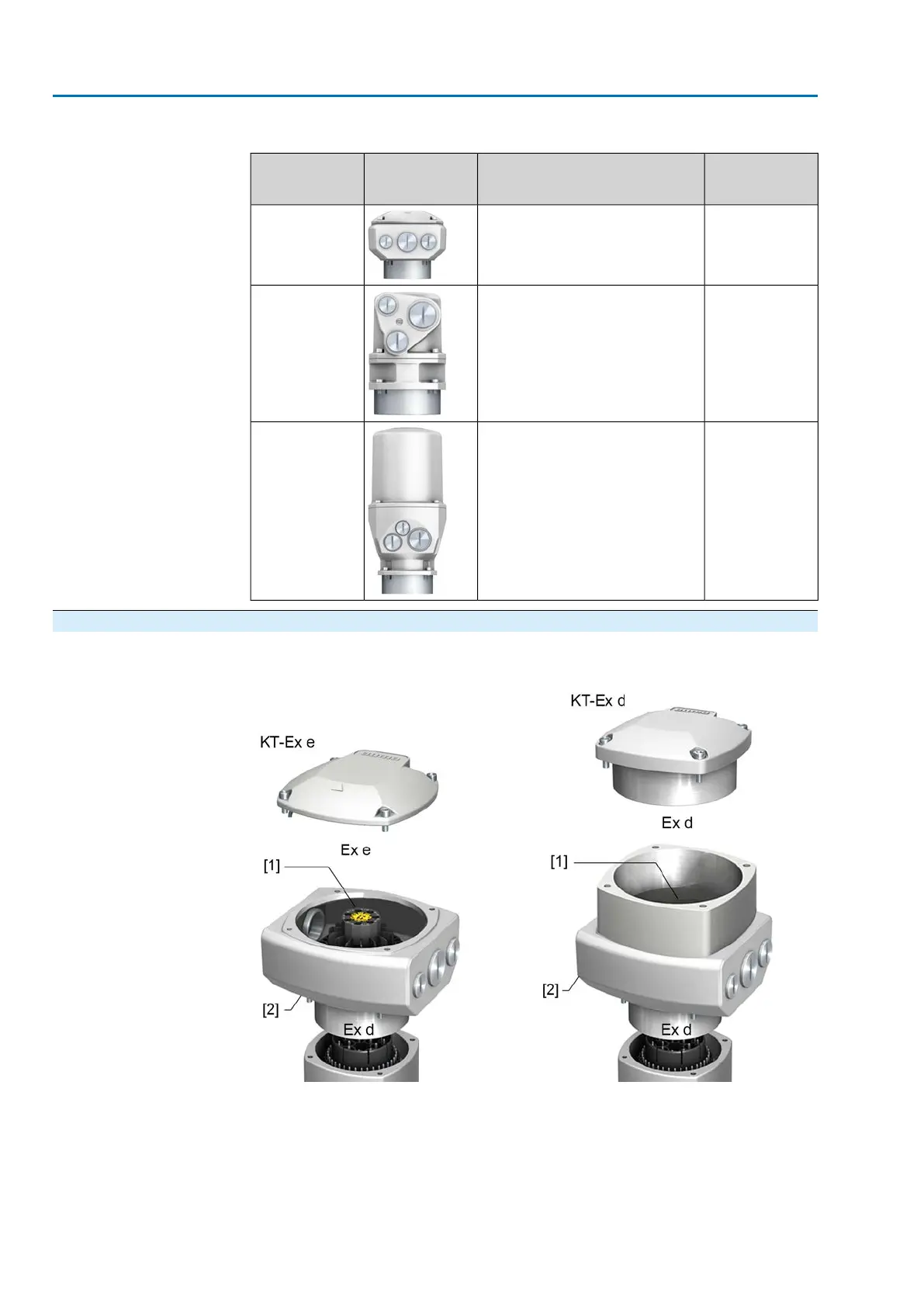

Figure 23: KT/KM electrical connection
[1] Terminal carrier with screw-type/spring clamp terminals
[2] Connection frame
Figure shows KT version
Short description
KT plug-in electrical connection with screw-type terminals for power connection and
spring clamp terminals for control contacts.
