AUMA SAREx 07.2 - Optional Indications; Mechanical Position Indication Via Indicator Mark

Indication light 2 = Torque fault CLOSE
Indication light 3 = Thermal fault
Indication light 4 = Torque fault OPEN
Indicat. light 5 (right) = End p. OPEN, blink
Signal interm. pos. = OPEN/CLOSED = Off
Further setting values:
Refer to Manual (Operation and setting).
8.4. Optional indications
8.4.1. Mechanical position indication via indicator mark

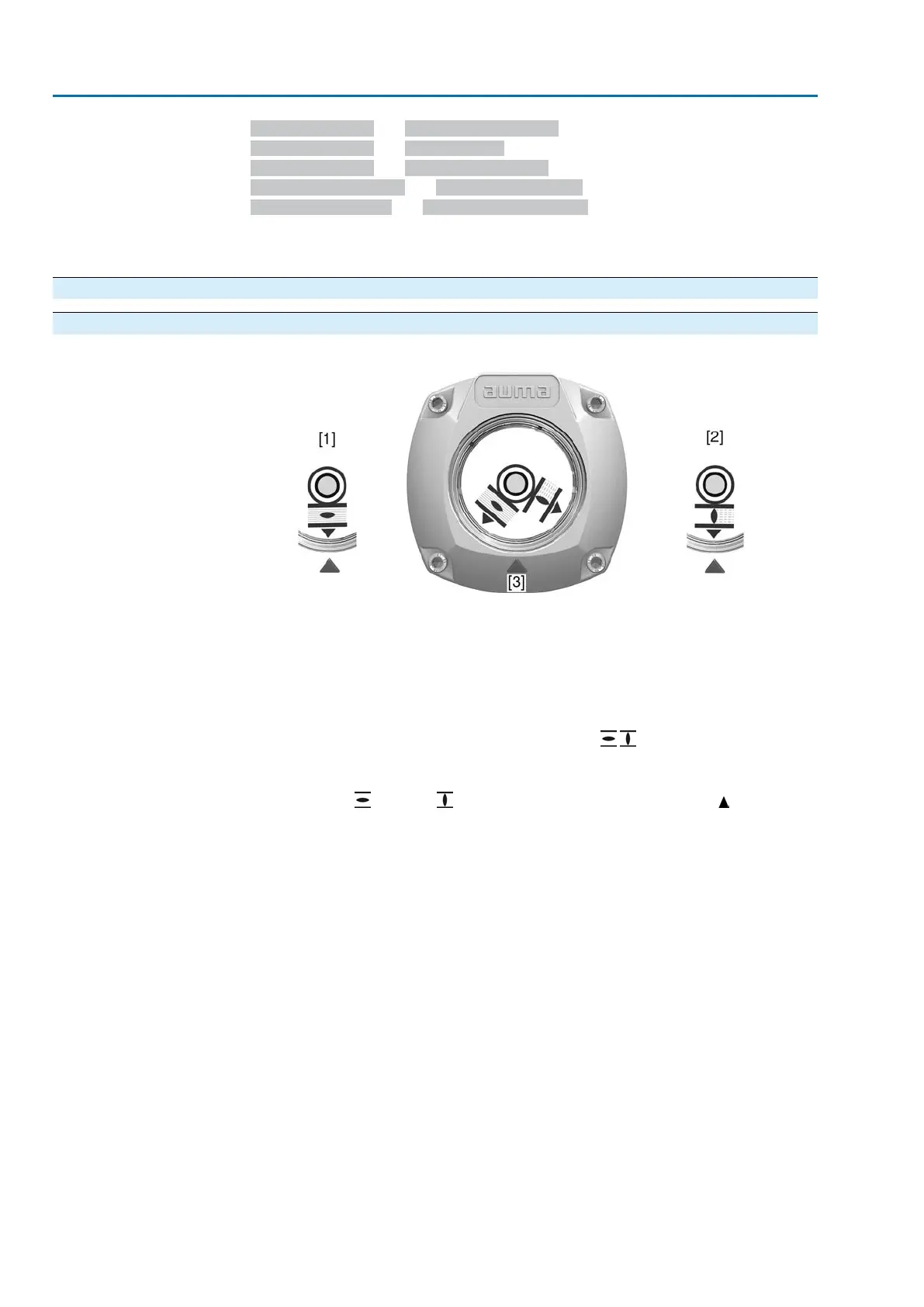

Figure 83: Mechanical position indicator
[1] End position OPEN reached
[2] End position CLOSED reached
[3] Indicator mark at cover
Characteristics
●
Independent of power supply
●
Used as running indication: Indicator disc rotates during actuator operation and
continuously indicates the valve position
(For “clockwise closing ” version, the symbols / rotate in counterclockwise
direction for operations in direction CLOSE)
●
Indicates that end positions (OPEN/CLOSED) have been reached
(Symbols (OPEN)/ (CLOSED) point to the indicator mark at cover)
64
SAEx 07.2 – SAEx 16.2/SAREx 07.2 – SAREx 16.2 Control unit - electromechanical
Indications ACExC 01.2 Intrusive Modbus RTU
