6.5. KES electrical connection

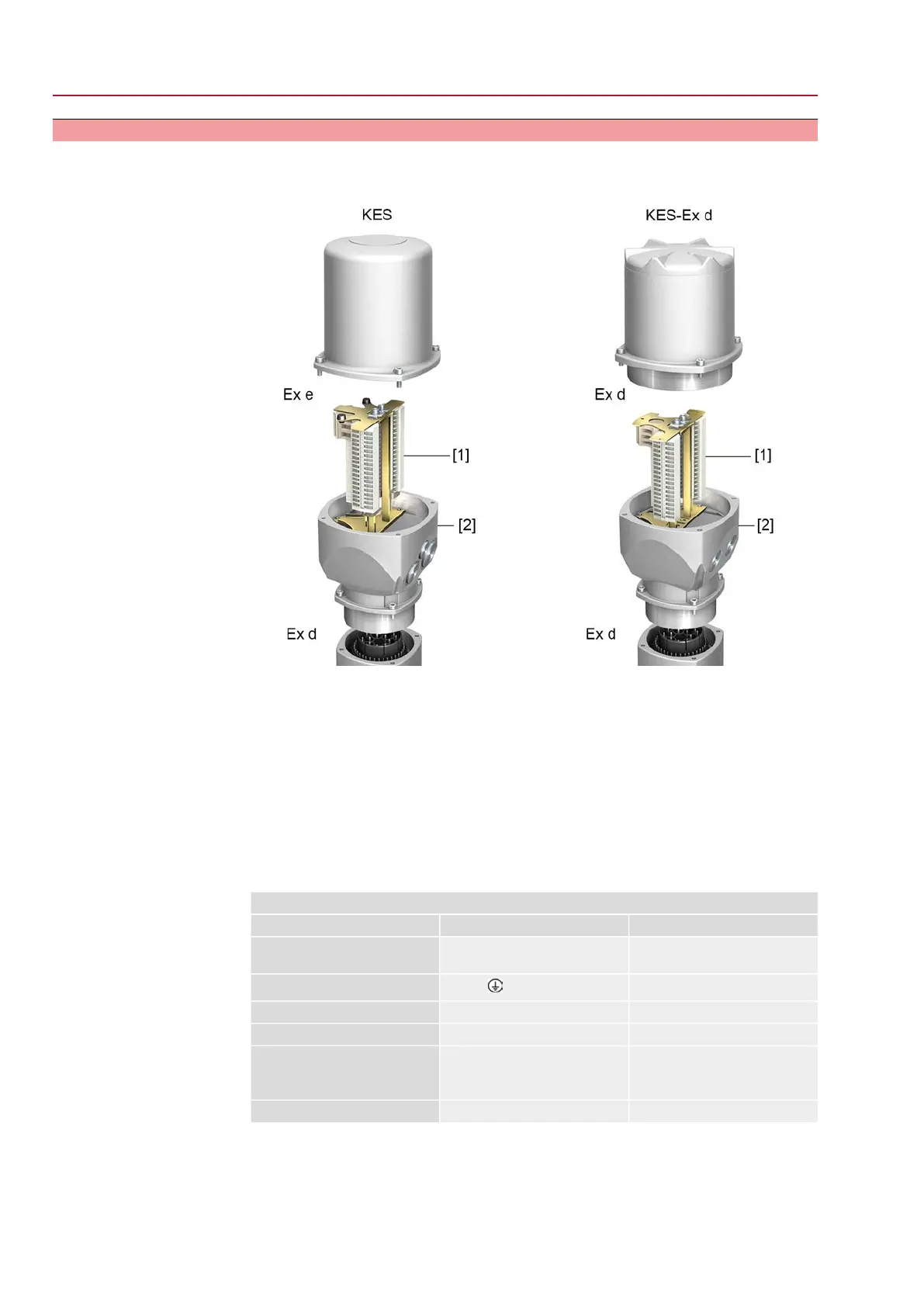

Figure 35: KES electrical connection
[1] Terminal blocks
[2] Connection frame
Short description
KES plug-in electrical connection with terminal blocks for power and control contacts.
Cable entry via the connection frame. Cover in KES-e version for terminal
compartment in type of protection Ex e (increased safety). Cover in KES-Ex d version
for terminal compartment in type of protection Ex d (flameproof enclosure).
Plug-in connection is made via the connection frame. For cable connection, simply
remove the cover. The connection frame remains within the device.The flameproof
interior of the connected devices remains sealed.
Technical data
Table 20:
KES electrical connection
Control contactsPower contacts
503 + protective earth connection at
frame
No. of contacts max.
1 to 50
U, V, W, (PE)
Designation
250 V750 VConnection voltage max.
10 A25 ARated current max.
Cage clamp,
screw-type connection as an op-
tion
Screw connection
PE = Ring lug/U-bracket
Type of customer connection
2.5 mm
2
flexible, 4 mm
2
solid6 mm
2
/10 mm
2
Connection diameter max.
38
SQEx 05.2 – SQEx 14.2/SQREx 05.2 – SQREx 14.2 Control unit: electronic (MWG)
Electrical connection ACExC 01.2 Non-Intrusive Profibus DP
