4. Transport and storage
4.1. Transport
Actuator
For transport to place of installation, use sturdy packaging.
Suspended load!
Death or serious injury.
→
Do NOT stand below suspended load.
→
Attach ropes or hooks for the purpose of lifting by hoist only to housing and NOT
to handwheel.
→
Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→
Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→
Actuators mounted to controls: Attach ropes or hooks for the purpose of lifting
by hoist only to the actuator and NOT to the controls.
→
Respect total weight of combination (actuator, actuator controls, gearbox, valve)
→
Secure load against falling down, sliding or tilting.
→
Perform lift trial at low height to eliminate any potential danger e.g. by tilting.

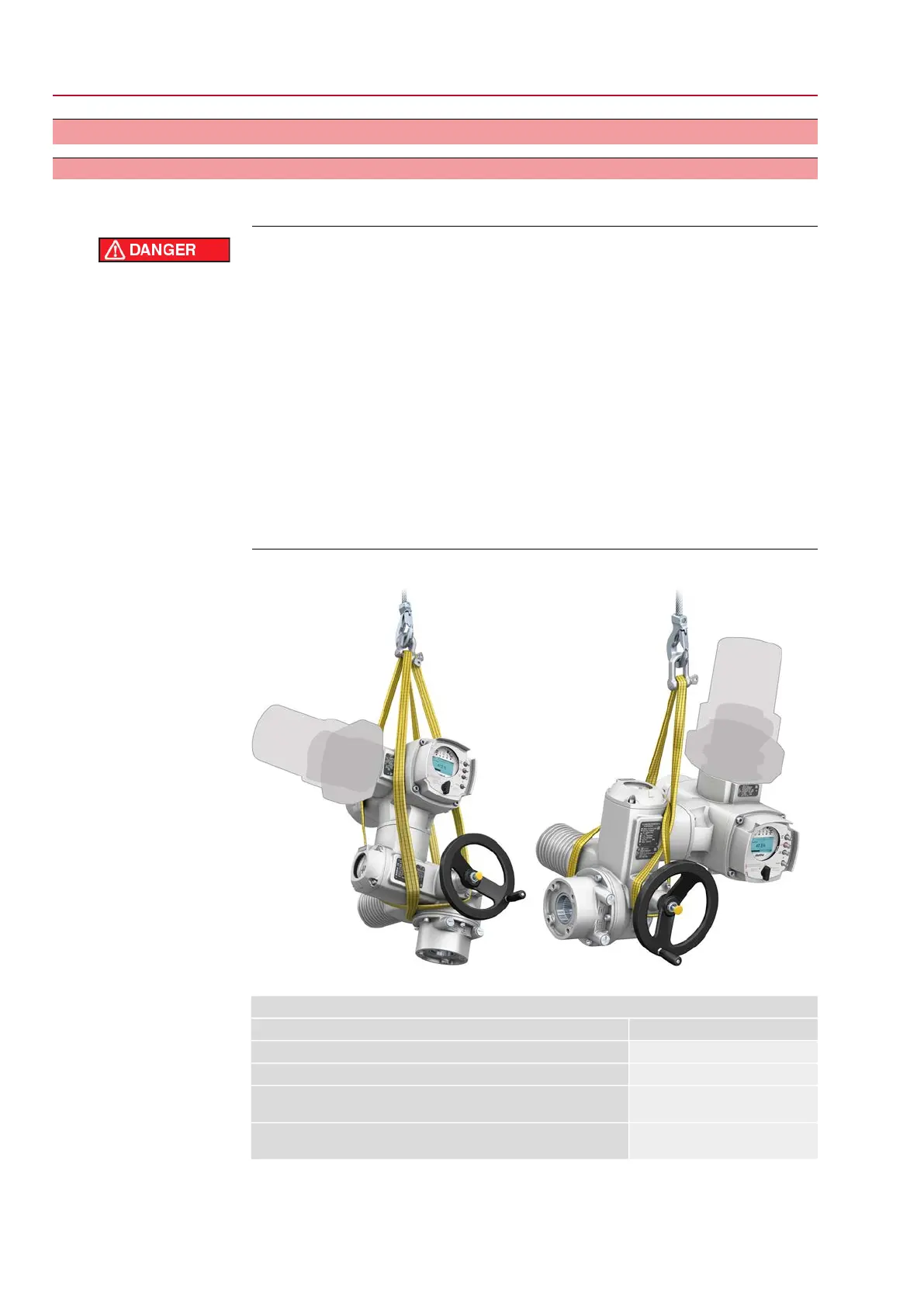

Figure 10: Example: Lifting the actuator
Weights
Table 6:
Weight for ACExC 01.2 actuator controls
Weight approx. [kg]with electrical connection type:
14AUMA Ex plug/socket connector with screw-type terminals (KT)
1)
12AUMA Ex plug/socket connector with screw-type terminals (KP)
14AUMA Ex plug/socket connector with terminal blocks (KES), increased
safety Ex e
16.5AUMA Ex plug/socket connector with terminal blocks (KES),
flameproof enclosure Ex d
Standard1)
14
SQEx 05.2 – SQEx 14.2/SQREx 05.2 – SQREx 14.2 Control unit: electronic (MWG)
Transport and storage ACExC 01.2 Non-Intrusive Profibus DP
