AURATON 2020 - Connection diagrams; Diagram of direct AURATON 2020 connection to a gas boiler independent on power supply, without the circulation pump

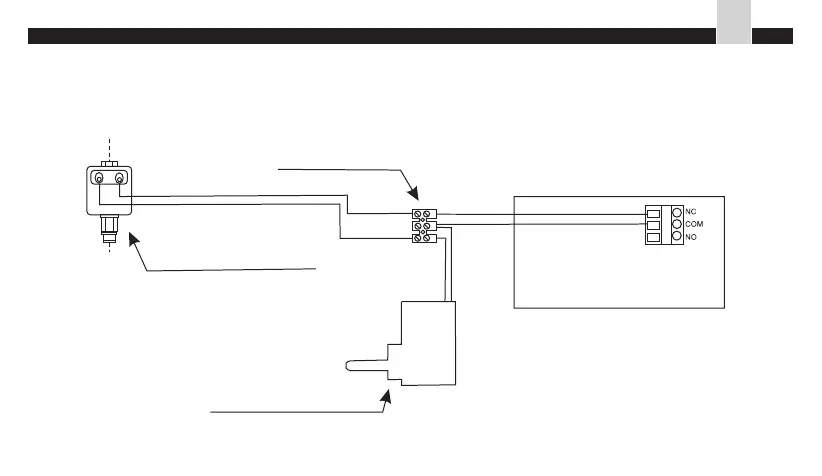

18.4 Diagram of direct AURATON 2020
connection to a gas boiler independent on
power supply, without the circulation
pump
red electromagnetic
valve of the gas boiler
connector
cube
socket supply
~230V / = 12V
AURATON 2020
AURATON 2020 - Connection diagrams
