Autel MaxiBas BT508 - Test Preparation

7
2.2 MaxiVCI V200P — Vehicle Communication
Interface

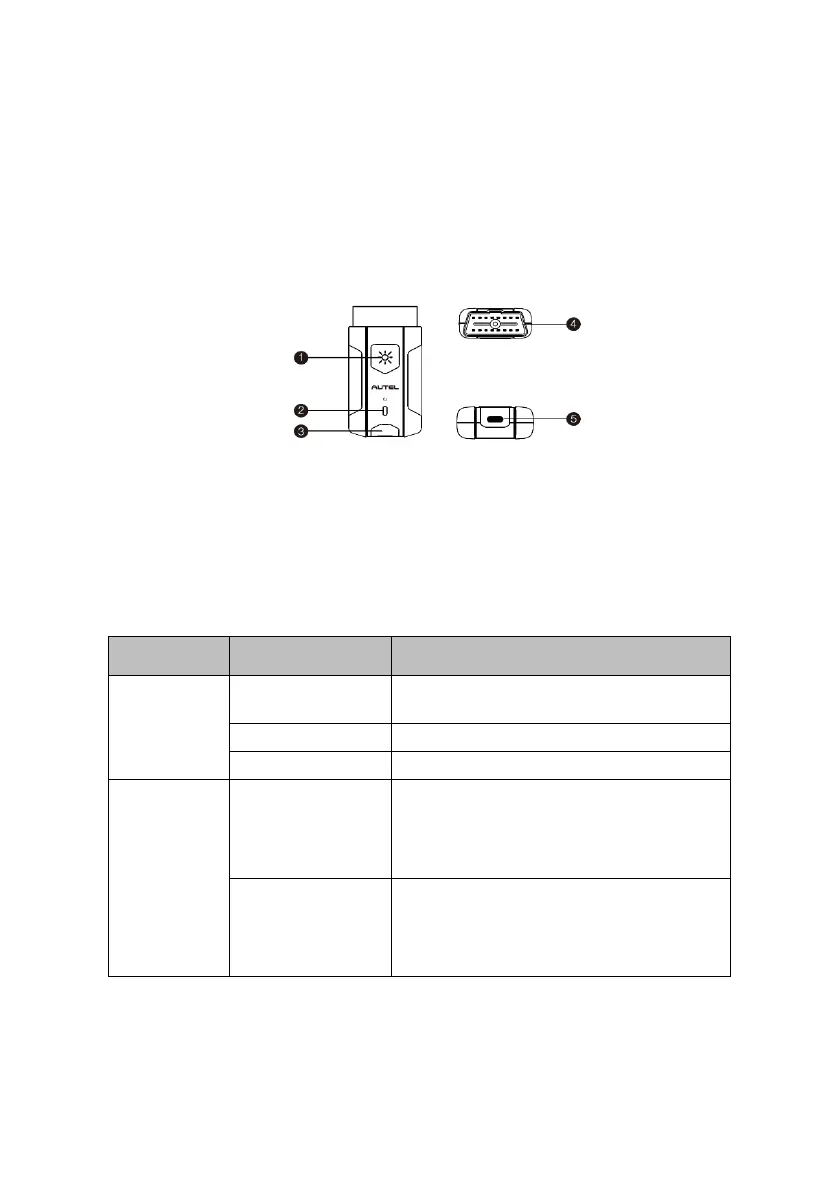

2.2.1 Function Description
1. Flashlight Power Button
2. Power LED
3. Vehicle/Connection LED
4. Vehicle Data Connector (16-pin)
5. USB Port
VCI LED Description
LED
Color
Description
Power LED
Yellow
The VCI is powered on and performing
self-check.
Green
The VCI is ready for use.
Flashing Red
The firmware is updating.
Vehicle /
Connection
LED
Green
 Solid Green: The VCI is
connected via USB cable.
 Flashing Green: The VCI is
communicating via USB cable.
Blue
 Solid Blue: The VCI is connected
via Bluetooth.
 Flashing Blue: The VCI is
communicating via Bluetooth.
