35
All three test screens are comprised of three sections:
1. Main view: displays data in a waveform or bar graph.
2. Data description: provides brief descriptions of the test result.
3. Suggestion: offers suggestions on existing problems.

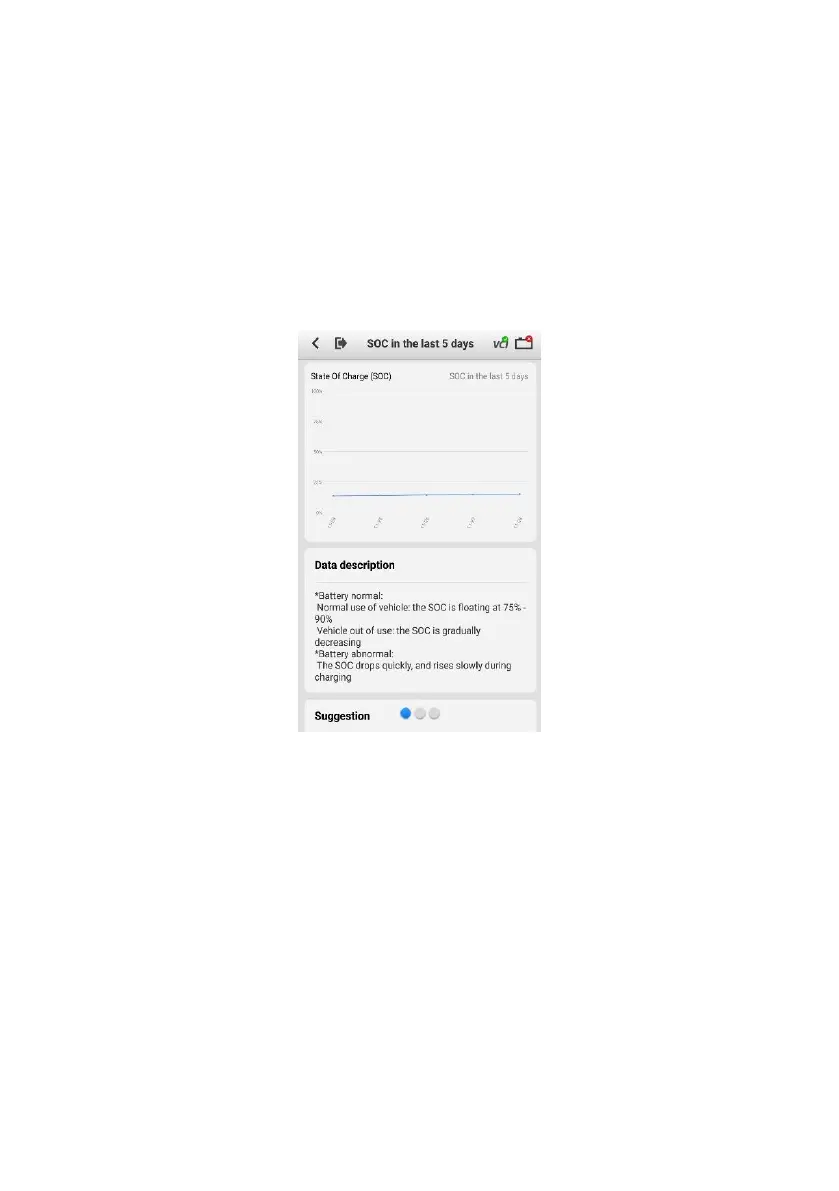

Figure 7-5 Sample SOC in the Last 5 Days Screen
