AutoGyro Calidus - Page 124

Pilot Operating Handbook
Calidus
SECTION 7
SYSTEM DESCRIPTION
AutoGyro_POH_Calidus Revision 4.0 – Issue Date 17.JAN.2019 7-20

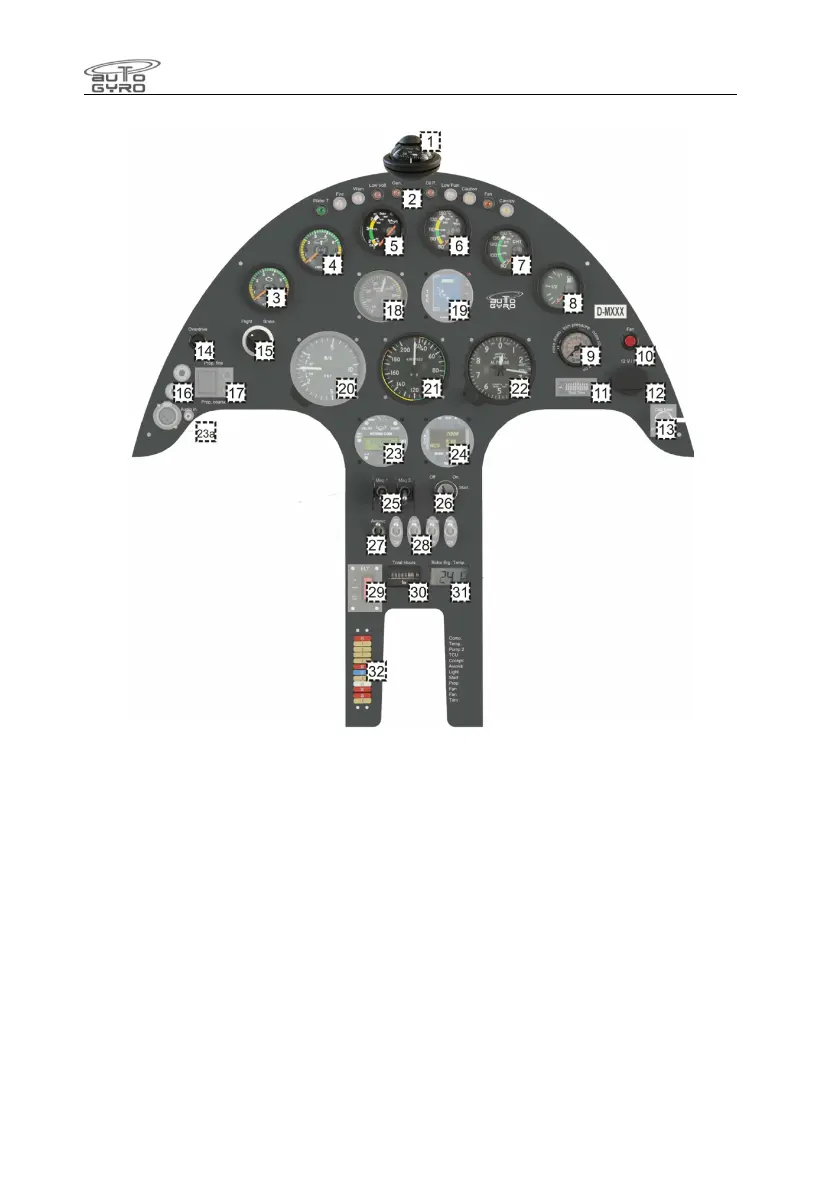

Panel
Layout
-
Standard
1 – Magnetic compass 18 – Manifold pressure gauge (if inst.)
2 – Warning lights 19 – Collision Avoidance System (if inst.)
3 – Engine RPM 20 – Vertical speed indicator (if installed)
4 – Rotor RPM 21 – Air speed indicator
5 – Oil pressure 22 – Altimeter
6 – Oil temperature 23 – Radio (if installed)
7 – Cylinder head temperature 23a – Audio in (if installed)
8 – Fuel level indicator 24 – ATC transponder (if installed)
9 – Trim/brake pressure gauge 25 – MAG switches
10 – Cooling fan manual activation 26 – Master/starter switch
11 – Lateral trim indicator (if installed) 27 – Avionics master switch
12 – 12V power receptacle (if installed) 28 – Switches (2
nd
fuel pump and options)
13 – Cabin heat control (if installed) 29 – ELT control (if installed)
14 – Overdrive push button 30 – Hour meter
15 – Pneumatic mode selector 31 – Rotor bearing temperature indication
16 – Intercom/headphone sockets 32 – Fuses
17 – VPP control and end position
detection IVO propeller (if installed)
