Calidus
SYSTEM DESCRIPTION
AutoGyro_POH_Calidus Revision 4.0 – Issue Date 17.JAN.2019 7-21

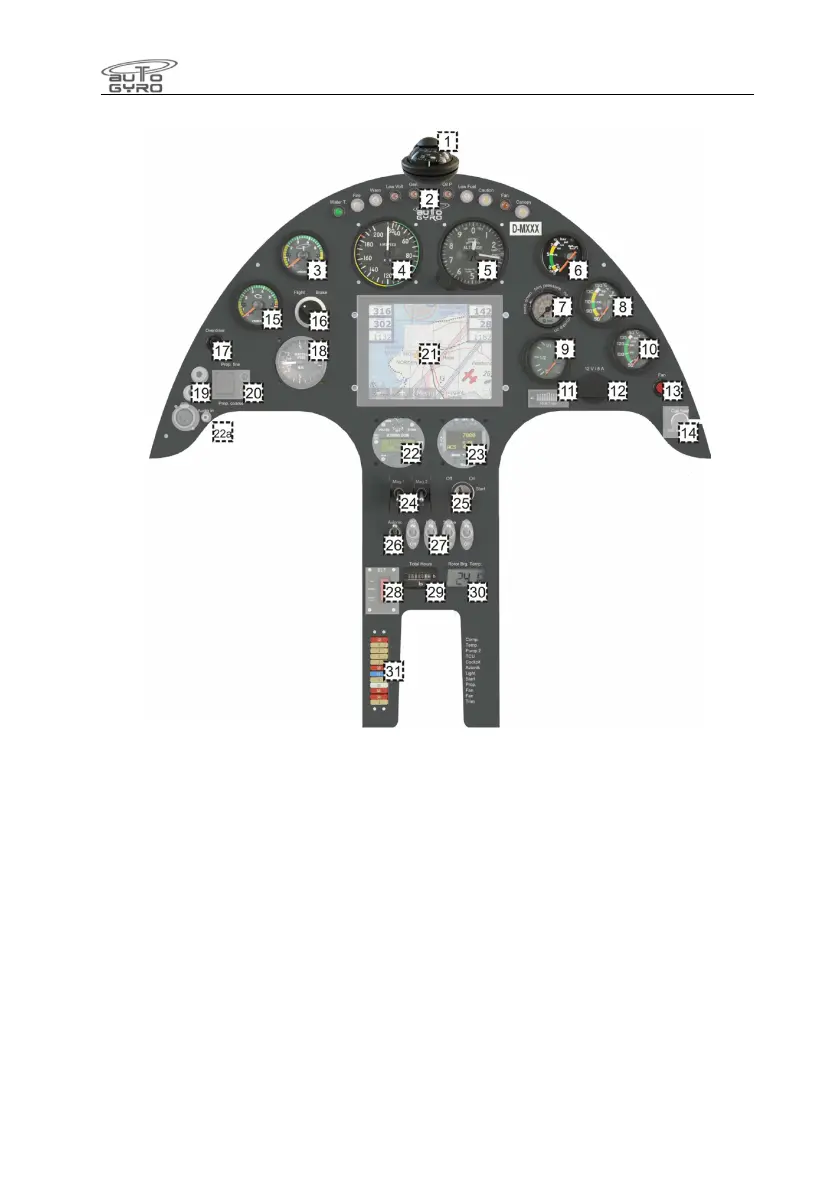

1 – Magnetic compass 18 – VSI 2 ¼” (47mm) (if installed)
2 – Warning lights 19 – Intercom/headphone sockets
3 – Rotor RPM 20 – VPP control and end position
4 – Air speed indicator detection IVO propeller (if installed)
5 – Altimeter 21 – Installation provisions for MMS
6 – Oil pressure 22 – Radio (if installed)
7 – Trim/brake pressure gauge 22a – Audio in (if installed)
8 – Oil temperature 23 – ATC transponder (if installed)
9 – Fuel level indicator 24 – MAG switches
10 – Cylinder head temperature 25 – Master/starter switch
11 – Lateral trim indicator (if installed) 26 – Avionics master switch
12 – 12V power receptacle (if installed) 27 – Switches (2
fuel pump and options)
13 – Cooling fan manual activation 28 – ELT control (if installed)
14 – Cabin heat control (if installed) 29 – Hour meter
15 – Engine RPM 30 – Rotor bearing temperature indication
16 – Pneumatic mode selector 31 – Fuses
17 – Overdrive push button
To Next Page
