AutoGyro Calidus - Page 126

Pilot Operating Handbook
Calidus
SECTION 7
SYSTEM DESCRIPTION
AutoGyro_POH_Calidus Revision 4.0 – Issue Date 17.JAN.2019 7-22

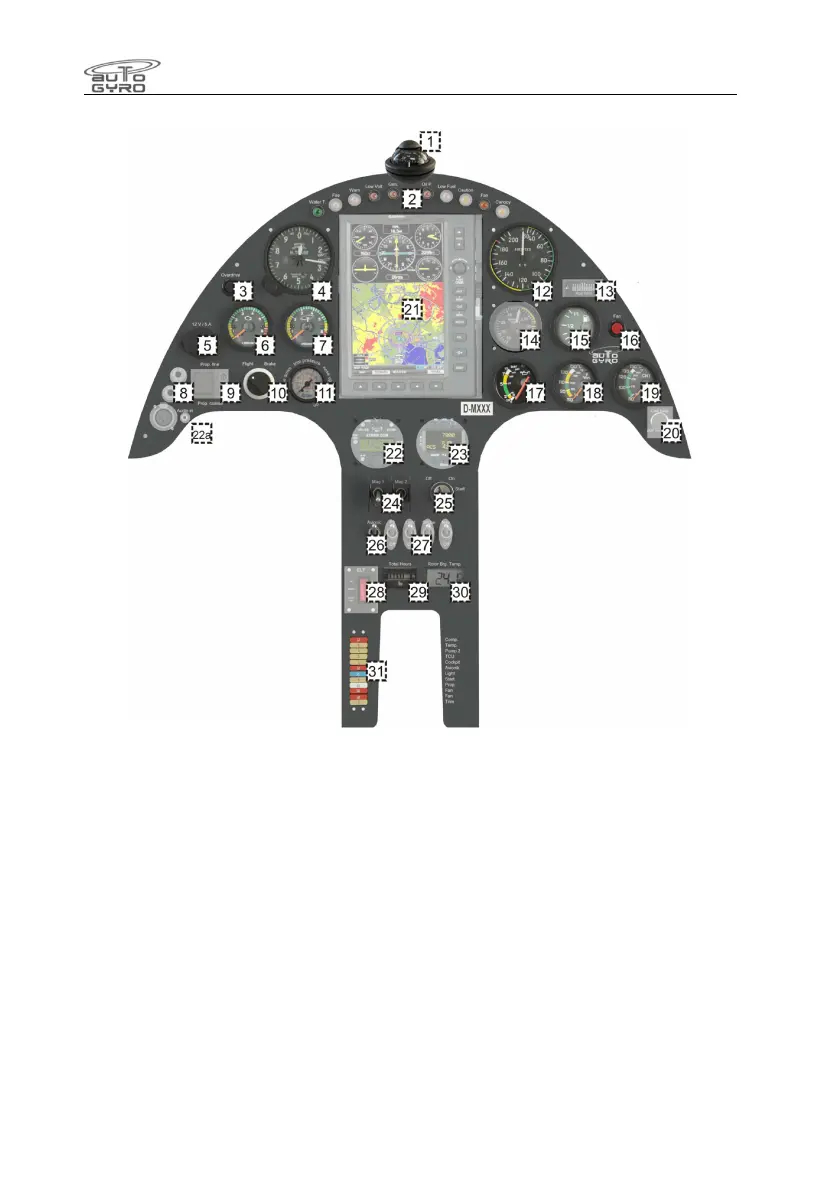

Panel
Layout
–
Moving Map Portrait (
Garmin 695
/795
)
1 – Magnetic compass 17 – Oil pressure
2 – Warning lights 18 – Oil temperature
3 – Overdrive push button 19 – Cylinder head temperature
4 – Altimeter 20 – Cabin heat control (if installed)
5 – 12V power receptacle (if installed) 21 – MMS
6 – Engine RPM 22 – Radio (if installed)
7 – Rotor RPM 22a – Audio in (if installed)
8 – Intercom/headphone sockets 23 – ATC transponder (if installed)
9 – VPP control and end position 24 – MAG switches
detection IVO propeller (if installed) 25 – Master/starter switch
10 – Pneumatic mode selector 26 – Avionics master switch
11 – Trim/brake pressure gauge 27 – Switches (2
nd
fuel pump and options)
12 – Air speed indicator 28 – ELT control (if installed)
13 – Lateral trim indicator (if installed) 29 – Hour meter
14 – Manifold pressure gauge (if inst.) 30 – Rotor bearing temperature indication
15 – Fuel level indicator 31 – Fuses
16 – Cooling fan manual activation
