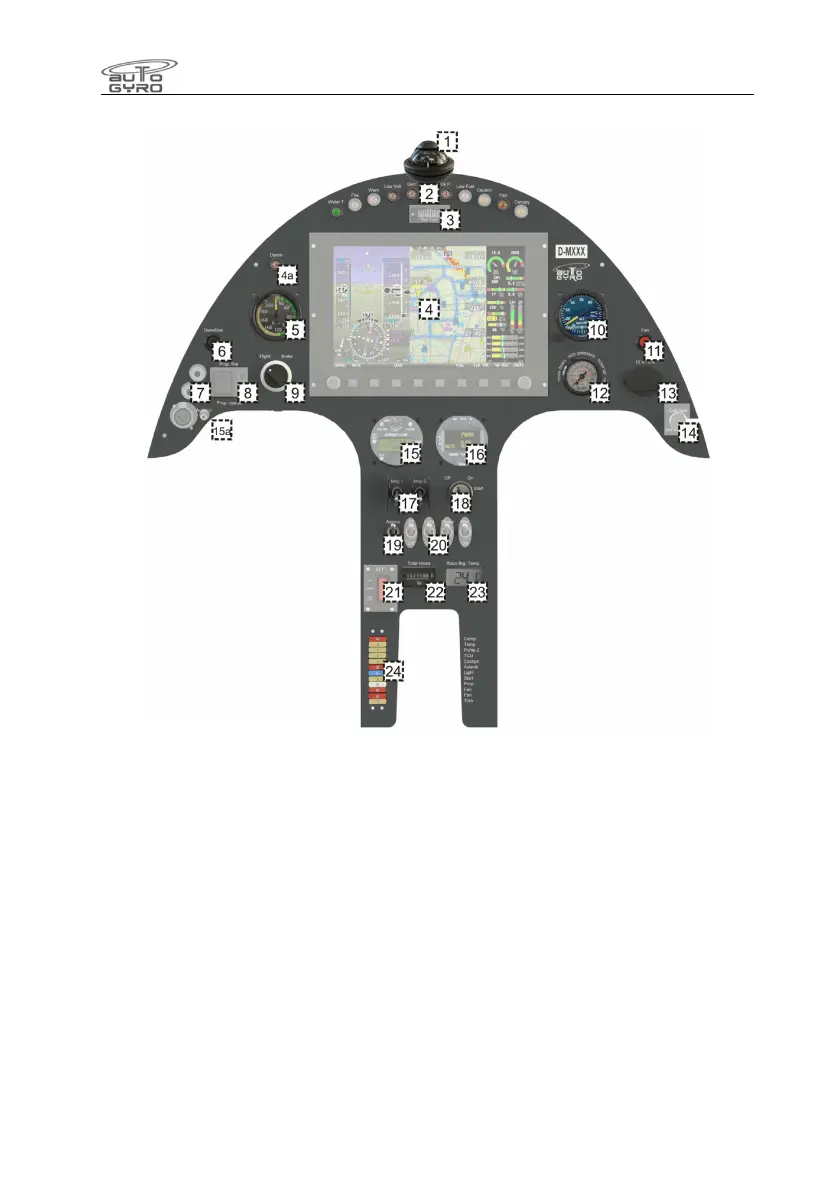

Panel Layout

–

Glass Cockpit (

DYNON AVIONICS SkyView.

)

1 – Magnetic compass 13 – 12V power receptacle (if installed)

2 – Warning lights 14 – Cabin heat control (if installed)

3 – Lateral trim indicator (if installed) 15 – Radio (if installed)

4 – DYNON Integrated Display 15a – Audio in (if installed)

4a – Integrated display warning light 16 – ATC transponder (if installed)

5 – Back-up air speed indicator 17 – MAG switches

6 – Overdrive push button 18 – Master/starter switch

7 – Intercom/headphone sockets 19 – Avionics master switch

8 – VPP control and end position 20 – Switches (2

fuel pump and options)

detection IVO propeller (if installed) 21 – ELT control (if installed)

9 – Pneumatic mode selector 22 – Hour meter

10 – Back-up altimeter 23 – Rotor bearing temperature indication

11 – Cooling fan manual activation 24 – Fuses

12 – Trim/brake pressure gauge
