GDO-12 HIRO Installation Manual
16
7.3 Door Status Indicators
Door Status Indicators OPEN LED (green) CLOSE LED (blue) STOP (red)
Open On
Close On
Opening Flashing
Closing Flashing
Door travel stopped Flashing Flashing Flashing
Door obstructed when opening Flashing On and door will stop
Door obstructed when closing Flashing Beeps while door is moving
Opener overloaded Alternating flashes Alternating flashes
Mains power interrupted Rapid flashes
HELPFUL TIP: Refer to Appendix C for Additional
LED Indicators
tip

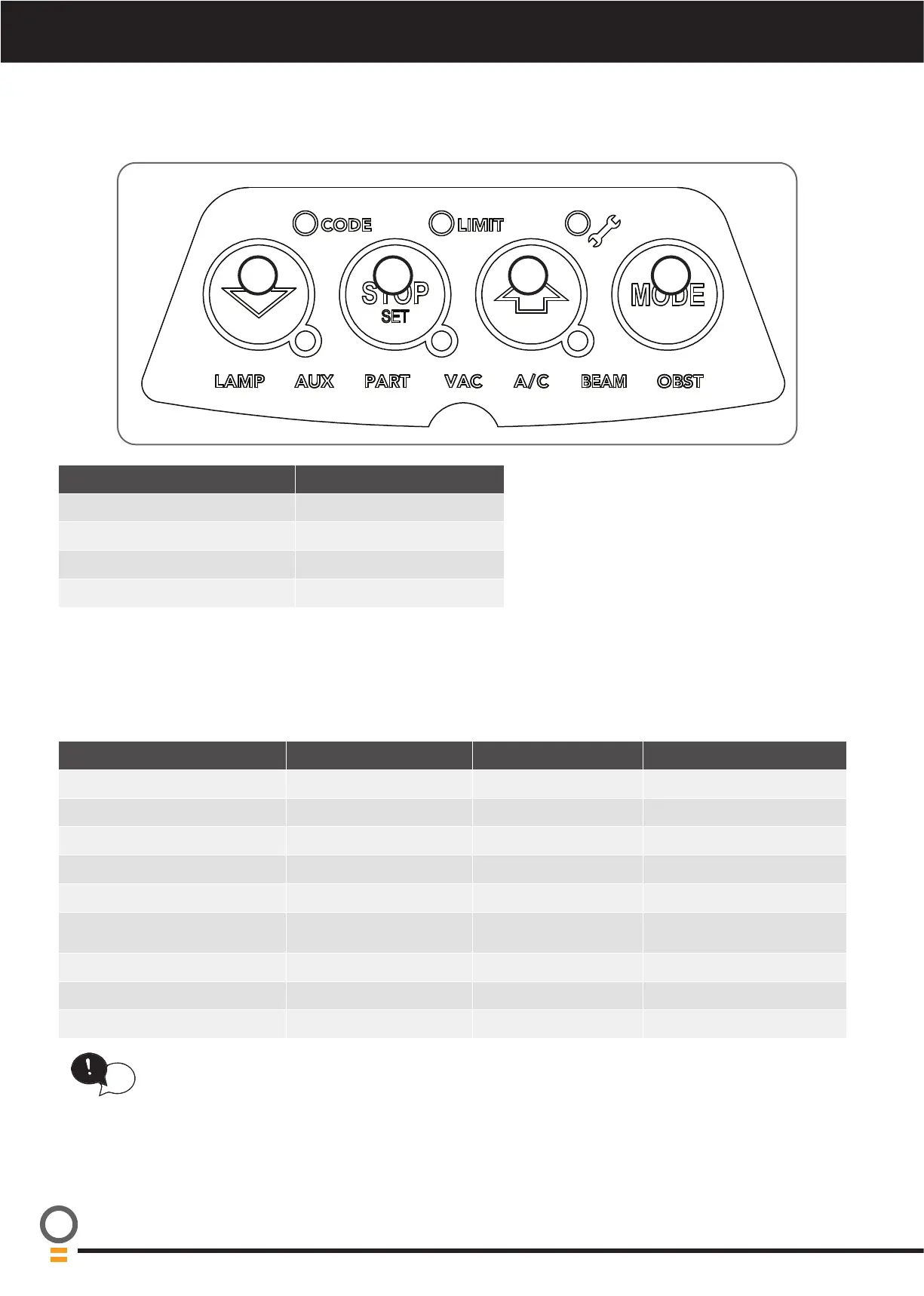

7.2 User Operating Controls
Button Function
1. BLUE DOWN ARROW Close Button
2. RED STOP/SET Stop / Set Button
3. GREEN UP ARROW Open Button
4. MODE Mode Selection Button
1 2 3 4
