GDO-12 HIRO Installation Manual
21
C - LED Status
Appendix

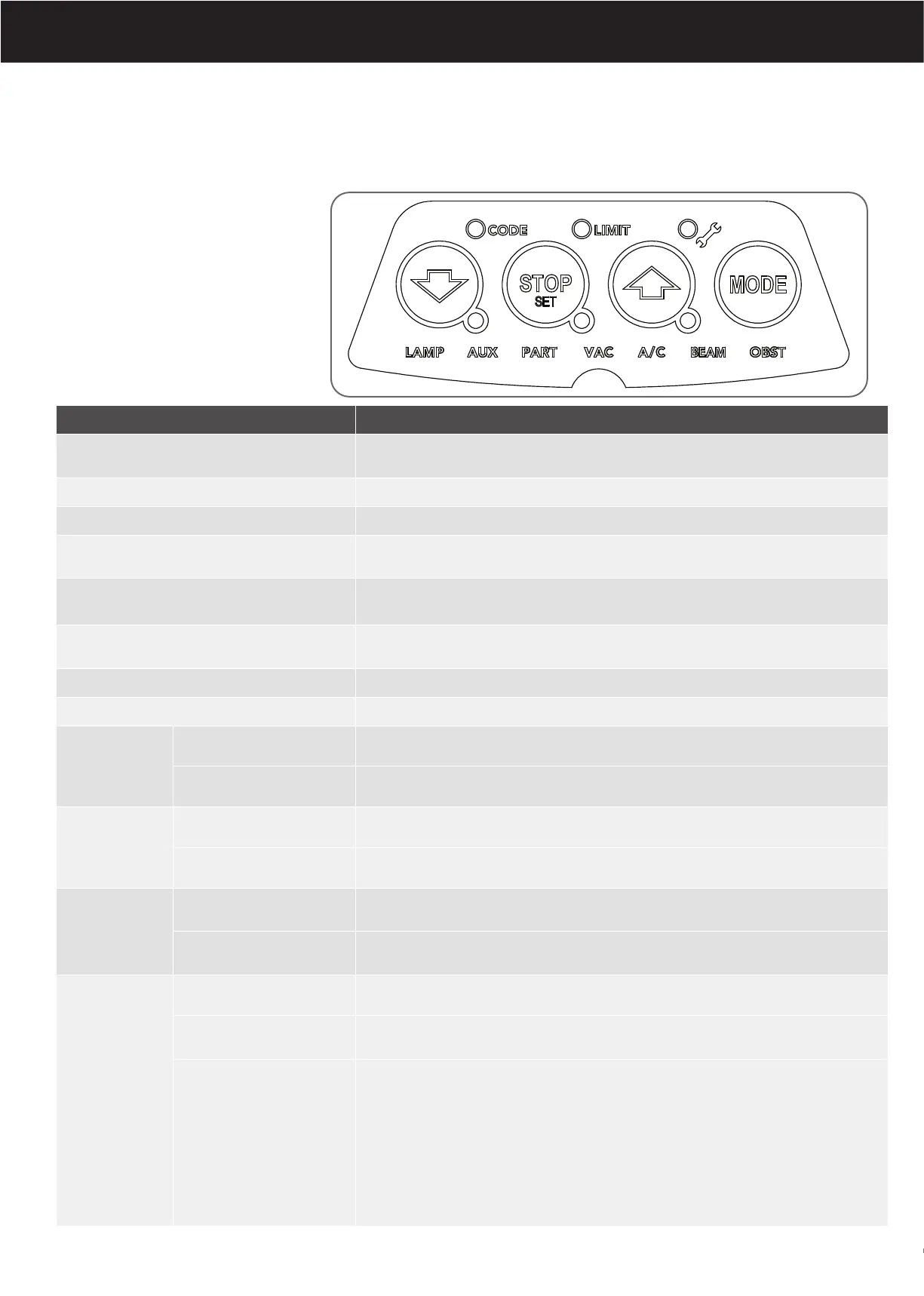

Operation indicators
The below table displays the status of
the opener when LEDs are activated.
LED Indicators Status
CODE LED Flickers with transmitter activity or indicating transmitter may not be coded to
the opener.
LIMIT LED Indicates the opener is in Limit Set Mode
SPANNER LED Indicates the opener is in Adjustment Mode
CLOSE / STOP / OPEN LED’S Indicate the door status currently in use
(except during power failure, auto-close and part open)
LAMP LED Only illuminates during the Adjustment Mode to change the light time
parameter
AUX LED Indicates the AUX output is activated, once a transmitter has been coded to
the AUX function.
PART LED Indicates the door is in one of the part open positions.
VAC LED Indicates the Vacation Mode is active
A/C LED On STEADY means the auto-close timer was paused due to the beam being blocked.
FLASHES to indicate the auto-close timer is running
BEAM LED On STEADY when a beam is blocked.
FLASHES when there is a P.E Fault
OBST LED On STEADY Obstruction was detected. If door open then obstruction was while closing and
vice versa.
FLASHES Stall / Overload detected. If door open then stall / overload while closing and
vice versa.
SPANNER LED On STEADY Indicates the service is due. Beeps three times at start of a drive cycle
MAIN LIGHT FLASHES Two flashes indicates that the battery is faulty.
Five Flashes indicates that periodic maintenance is due after 3000 drive cycles.
FLASHES
+ OBST LED
+ OPEN LED
+ CLOSE LED
+ LIMIT LED
+ CODE LED
+ OPEN & CLOSE LEDs
Indicates a fault. The details is indicated on the other LEDS.
Indicates current sensor fault
Indicates failed to profile open travel - during limit setting only
inficated failed to profile close travel - during limit setting only
indicates position wrap fault / position sensor fault
indicates memory fault
indicates direction fault
