GDO-7V1 SecuraLift® Owner Installation Instructions
Step 8b. (Method two)
Raise the drive unit from the packing box and support
it in a horizontal position with a step ladder, then open
the garage door. Rest the opener on the open door and
use a scrap piece of wood to bring it to horizontal level.
Line up the track with the centre line on top of the door.
Secure to the ceiling above drive unit mounting holes,
with perforated angle (not supplied). A representative

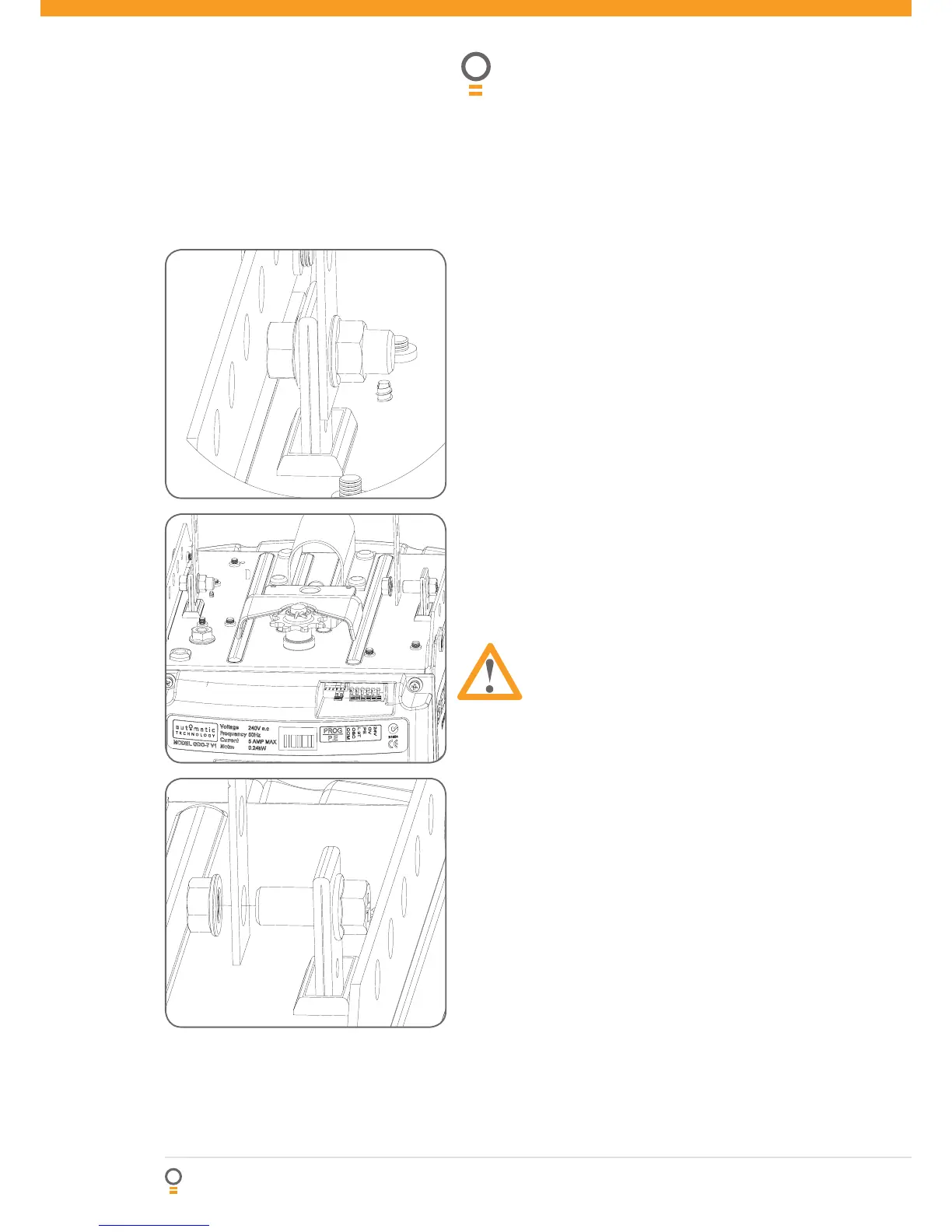

mounting is shown. (Fig. 9) Connect angle and vibration
brackets on drive units 2 flat perforated strips of angle
(not supplied) Use the M6 X 16 Flanged Head Bolts (2)
and M6 Flanged Head Nuts (2) and secure the hanger
straps to the anti vibration brackets as per the diagrams .
The brackets may have to be pushed lightly on an angle
to allow the bolts to be fitted. Strips should not extend
more than 18mm below centre of drive unit mounting
holes. (Fig. 9).
IMPORTANT: Make sure that the head of the M6 bolt
is facing the outside edge of the opener so that the
threaded part of the bolt does not come into contact
with the right angled return running along the edge
of the metal chassis..
WARNING: the opener must be securely fastened
to a structural support of the garage. Failure
to fasten the operator correctly will lead
to possible opener failure causing serious
personal injury and/or property damage
Using anti vibration brackets
