ATS Series Installation Manual11
12. Setting Limits
NOTE: If unhappy with the speed or travel limit setting, restart this
procedure by resetting the door limit positions as per below first.
12.2 Clearing the Door Limit Positions
Limit positions can be deleted by:

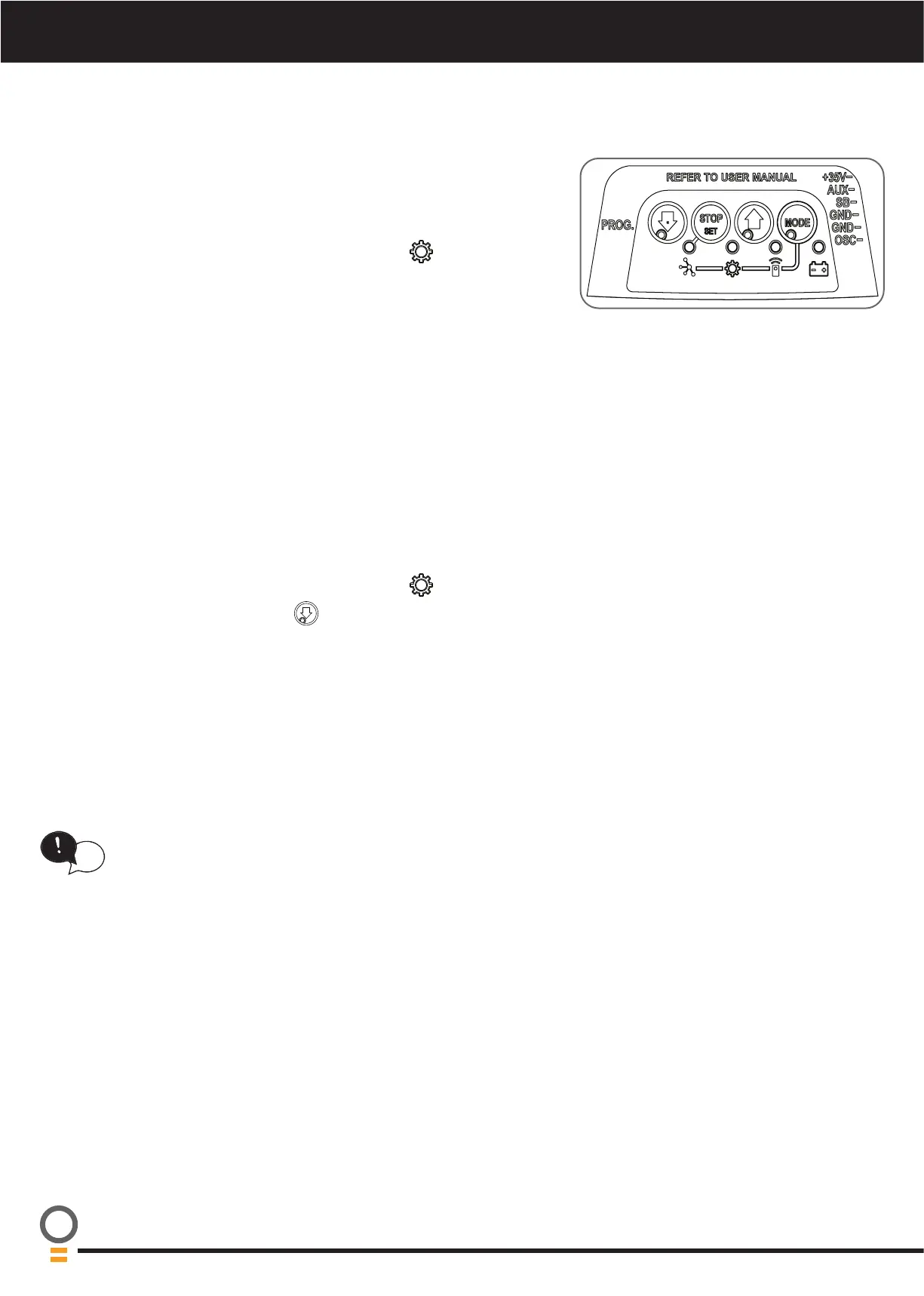

a. Press the MODE button repetitively until the GEAR
LED is lit.
b. Press and hold the MODE button for 10 secs, let the MODE button
go when the beeper stops and main light stops flashing.
c. The close LED will flash continuously to indicate limits have been
cleared.
NOTE: If no action is taken within 30 seconds, the opener will return
to normal operating mode and restore the original settings.
d. Follow from CLOSE limit: above to set new limit positions,
remembering to reset the tracklock.
12.3 Re-profiling the Door
Re-profiling is a simplified way of re-learning the travel characteristic
of a previously setup Limit Switch travel installation. Re-profiling can
be used when the travel characteristics of the door change due to
mechanical adjustments etc. To initiate a re-profile:
a. Limits must be set.
b. Press the MODE button repetitively until the GEAR
LED is lit.
c. Press and hold the CLOSE button
for two seconds, the door
will open and close by itself to record profile.
12.4 Controller memory reset
To clear the controller by:
a. Pressing and holding MODE button for 10secs while in limit set
mode will cause all control memory to be set to factory defaults.
b. This excludes transmitters, history log and cycle counters.
If limits are already set, clear limits first by using 12.2
Clearing the door limit positions and then clear controller
via 12.4 Controller memory reset.
