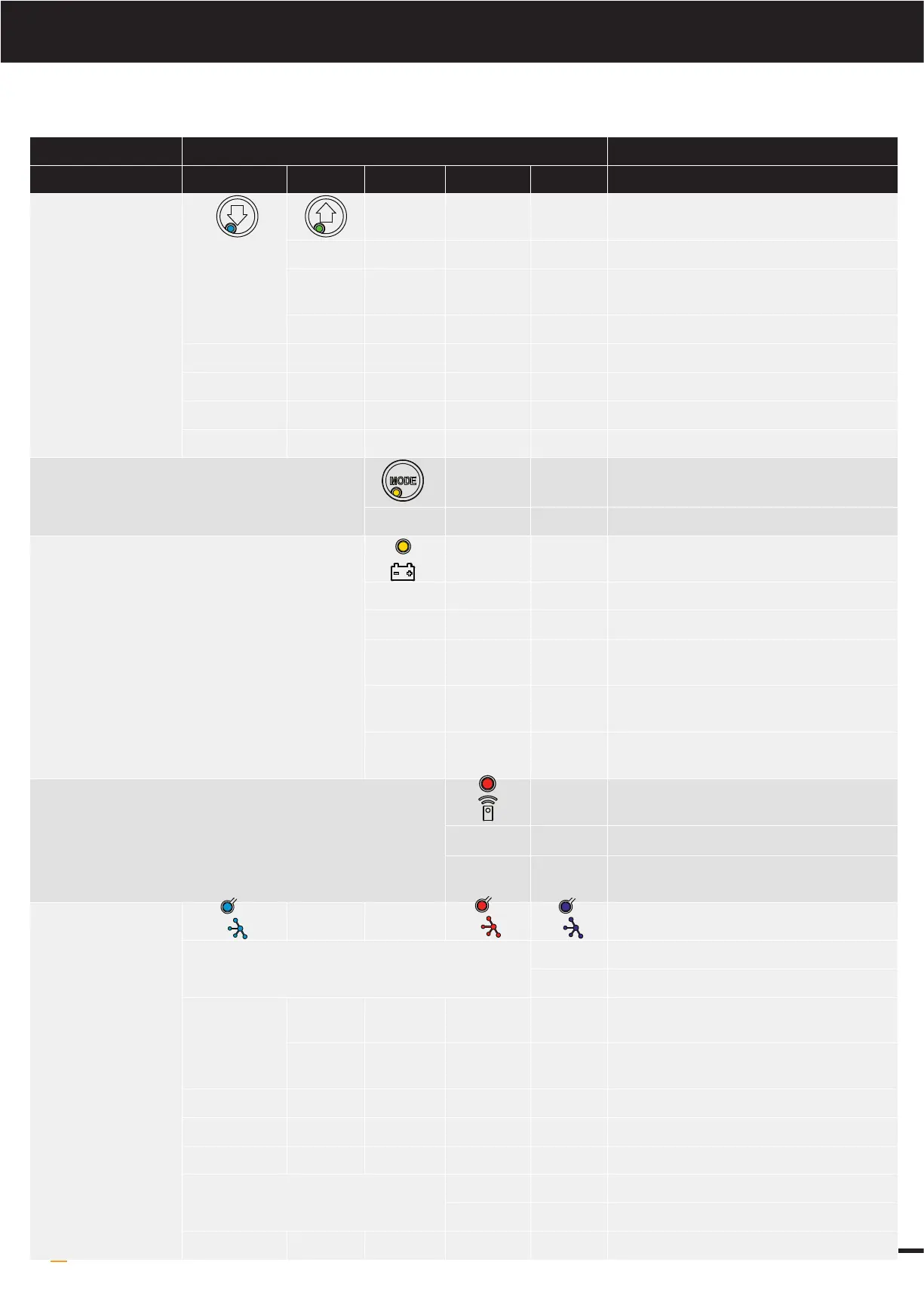

A - Status Indication during Operating Mode.
LEDs Light Status Indicates
BLUE GREEN YELLOW RED PURPLE
DOOR OPEN AND
CLOSED LEDS
solid Open
rapid
flashing
Open with Autoclose timer running
flashing Opening / Obstructed on Open
solid Closed
flashing Closing / Obstructed on Close
flashing flashing Stopped
solid solid Partial Open
MODE LED
flashing Load Diagnostics mode
BATTERY LED
off Battery not used / not fitted
solid Battery charged
flash 2
secs
in use (holding STOP for 10s will
shutdown)
flashing Battery charging, when connected to
power
rapid
flashing
Battery failed / fault
REMOTE CONTROL STATUS LED
flashing Remote lockout from vacation mode
rapid
flashing
Remote Control Activity
NETWORK LED
flashing Hot Spot Turning On
solid Hot Spot Active
1 flash then
pause
2 flashes
then pause
Connecting to Wi-Fi
Connected to Server
solid Connected to Cloud
flashing Software Updating
flicker Status update / Command received
On Wi-Fi Disabled
flashing Requires confirmation from user
alternate alternate Rebooting
