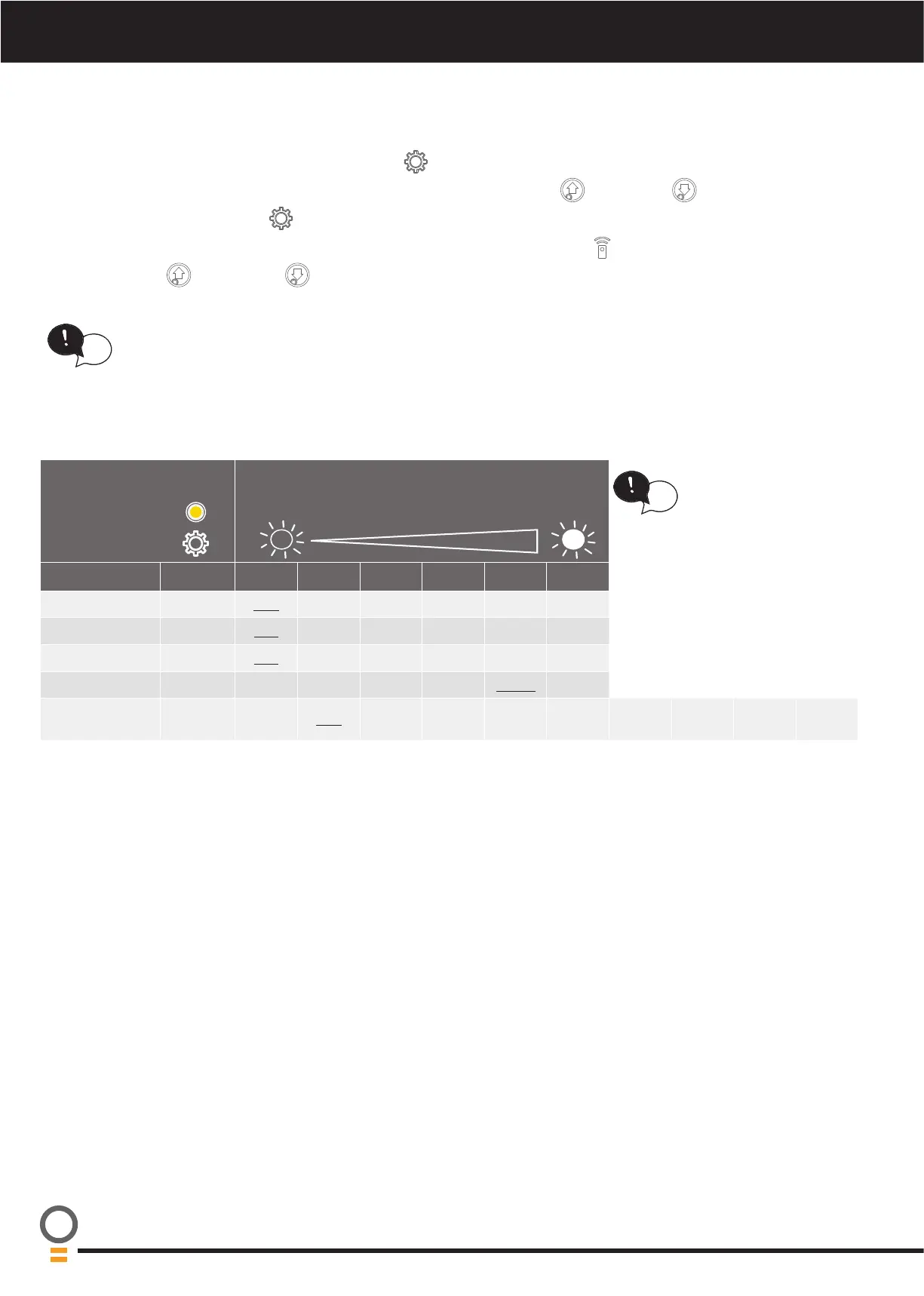

B - Adjustment Mode Instructions
Parameter Value options = Indicated by brightness
of main light
(DEFAULT parameter underlined)
Name Flashes 1 2 3 4 5 6
MARGIN x1 1.0A 1.2A 1.4A 1.6A 2.0A -
PE AUTO-CLOSE x2
OFF 15sec 30sec 60sec 90sec -
AUTO-CLOSE x3
OFF 15sec 30sec 60sec 90sec 120sec
LIGHT TIMER x4 30sec 60sec 90sec 120sec
180sec 240sec
AUX OUTPUT x5
Mimic
light
1sec 30sec 60sec 120sec 180sec 240sec 300sec 600sec toggle
a. Press the MODE button repetitively until the GEAR LED starts flashing
b. Referring to the table below, select the desired parameter using the OPEN
and CLOSE buttons and observing the
number of flashes on the GEAR
LED. The selected parameter’s value is indicated by the main light’s brightness.
c. Press STOP / SET button to start editing the parameter’s value. The TRANSMIT
LED will turn on when editing is active.
d. Use the OPEN
and CLOSE buttons to step through the available options. The light’s brightness will change
accordingly. If no beep is heard when the button is pressed, then the minimum or maximum setting has been reached.
Pressing the MODE button when a parameter is
being adjusted will load the default value.
tip
e. Press STOP / SET button to save the parameter’s new value or press MODE to leave the value unchanged. Operating MODE
is entered after 5secs unless a new adjustment is started or saved.
f. Continue from a. above to select another parameter or press MODE to exit adjustment mode.
When parameter edit mode
is active, if any button other
than MODE is pressed, then
when MODE is pressed
again, operating mode will
be selected instead of the
NETWORK adjustment
mode.
tip
AUX OUPUT
• Configures how the AUX Output operates. If configured for Mimic light mode then
the AUX output will activate whenever the main light output is on. All other settings
require either a remote control code set to the AUX function or the Phone App to be
used to activate the output. The time settings option indicate how long the output
will remain on when triggered. If the output is already on then a 2nd trigger will turn
the output off. The toggle On/Off setting does not use a timer and the output simply
changes state on each trigger.
