Automation Technology C2 Series Hardware Reference Manual

36 • C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8

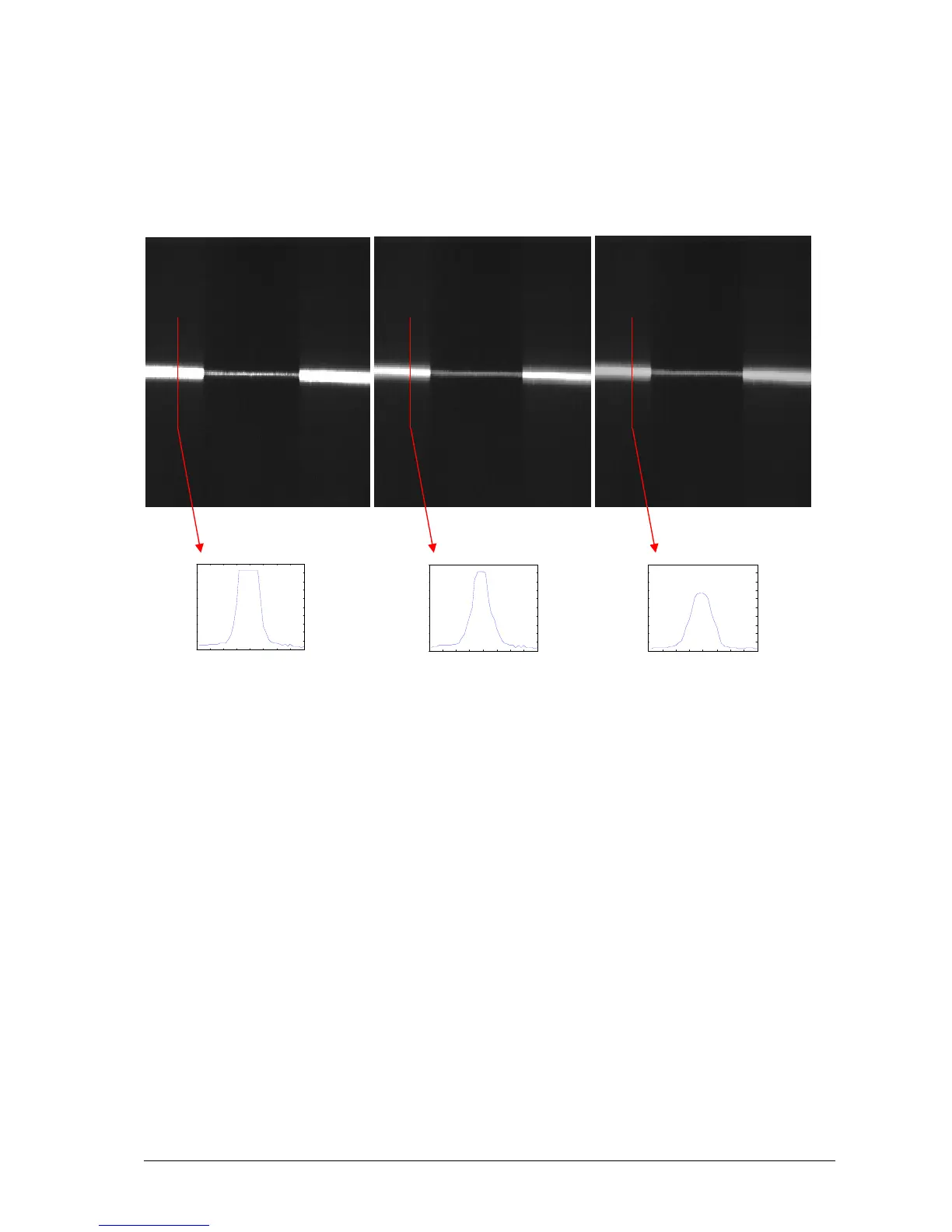

Application of Multiple Slope function on the image of a laser line projected on a surface with non-
homogeneous reflectivity (black & white chessboard pattern)
Single Slope Dual Slope Triple Slope
0 5 10 15 20 25 30 35 40
100
200
300
400
500
600
700
800
900
1000
1100
Sensor row #
Intensity
0 5 10 15 20 25 30 35 40
100
200
300
400
500
600
700
800
900
1000
1100
Sensor row #
Intensity
Sensor row #
0 5 10 15 20 25 30 35 40
100
200
300
400
500
600
700
800
900
1000
1100
Intensity
