Cables for GigE interface
PN # Description
202 201 040
C2 & C5 GigE cable with custom length and connector configuration (straight/angled)
202 201 041
C2 & C5 GigE cable, straight M12 male connector (IP67) on camera plug to RJ45 (IP20),
length 3m, standard
202 201 042
C2 & C5 GigE cable, straight M12 male connector (IP67) on camera plug to RJ45 (IP20),
length 5m, standard
202 201 043
C2 & C5 GigE cable, straight M12 male connector (IP67) on camera plug to RJ45 (IP20),
length 10m, standard

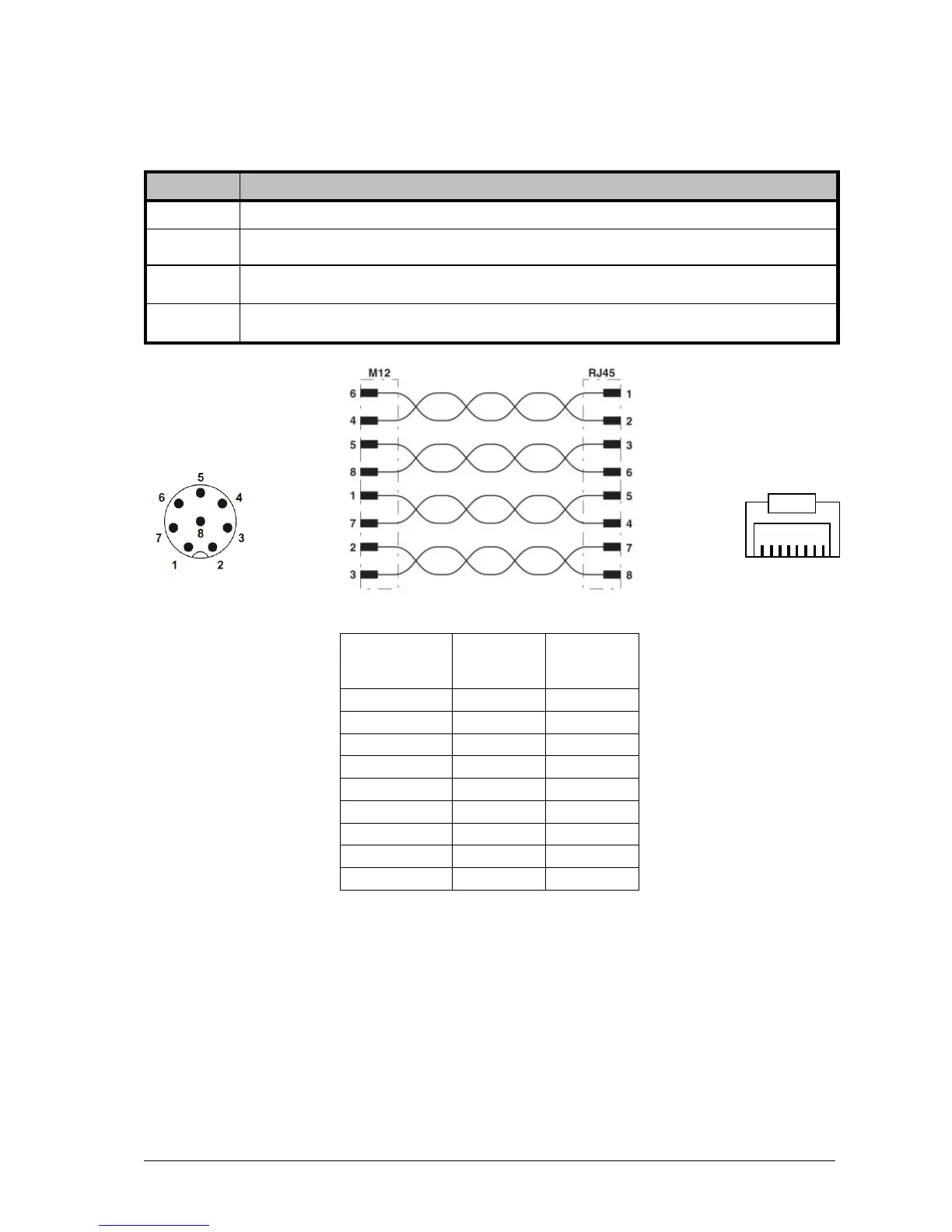

GigE Signal
Name
Pin No.
M12
Pin No.
RJ45
BI_DC- 1 5
BI_DD+ 2 7
BI_DD- 3 8
BI_DA- 4 2
BI_DB+ 5 3
BI_DA+ 6 1
BI_DC+ 7 4
BI_DB- 8 6
Shield Shield Shield
M12
Male Plu
g
18
RJ45
Male Plu
g
