Step 2: Launch Programming Software (cont’d)
e Main Window is divided into Menus, Toolbars, and Windows that work together to make
project development as simple as possible. See the software’s online help for additional details.

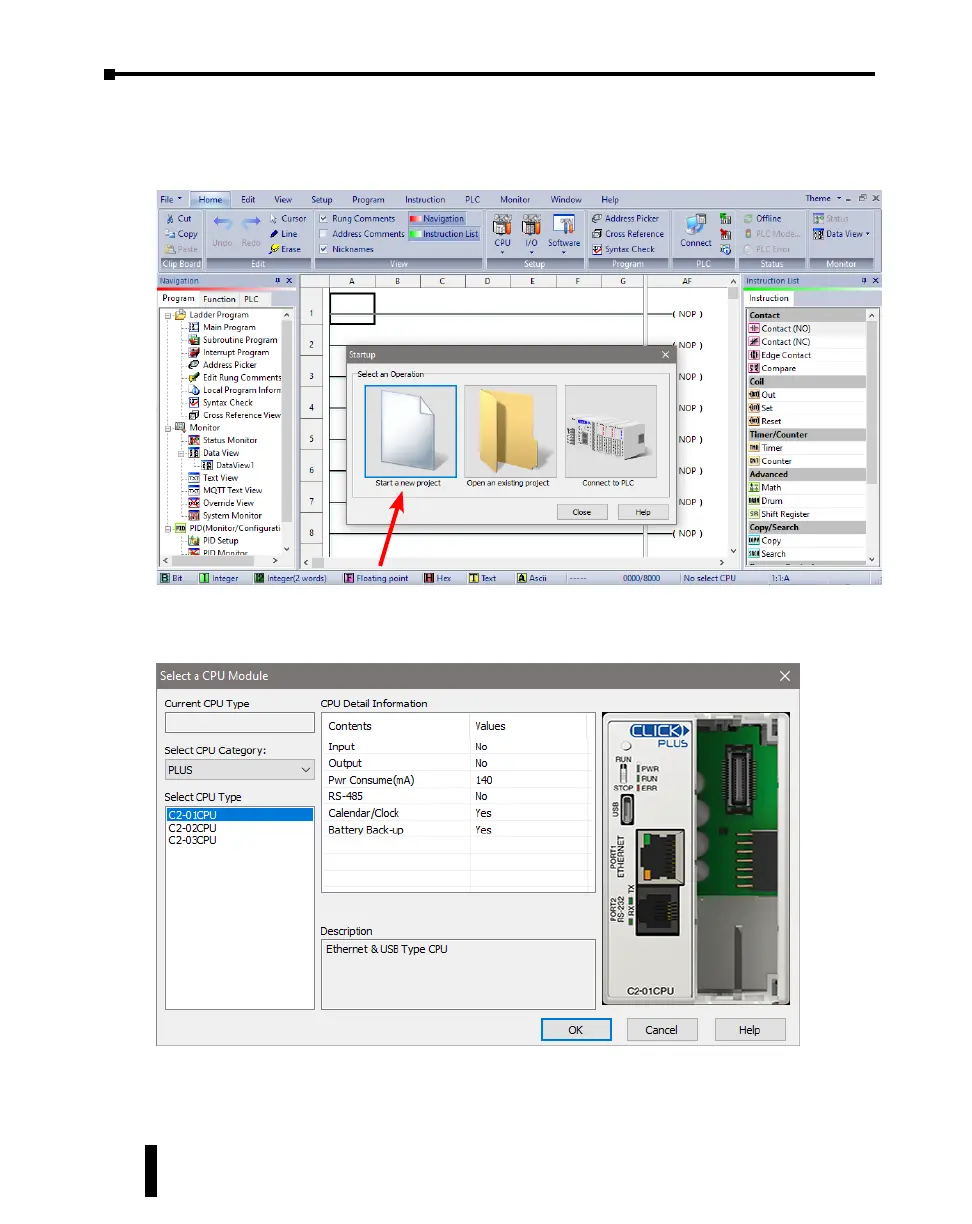

Click on the “Start a new project” graphic in the Startup dialog box. e Select a CPU
Module window opens.
Select from the list on the left for the CLICK PLUS PLC unit that you will use for the ladder
logic example that follows.
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
1-8
Chapter 1: Getting Started
