6 Timer mode
© Copyright Reserved Autonics Co., Ltd. 69

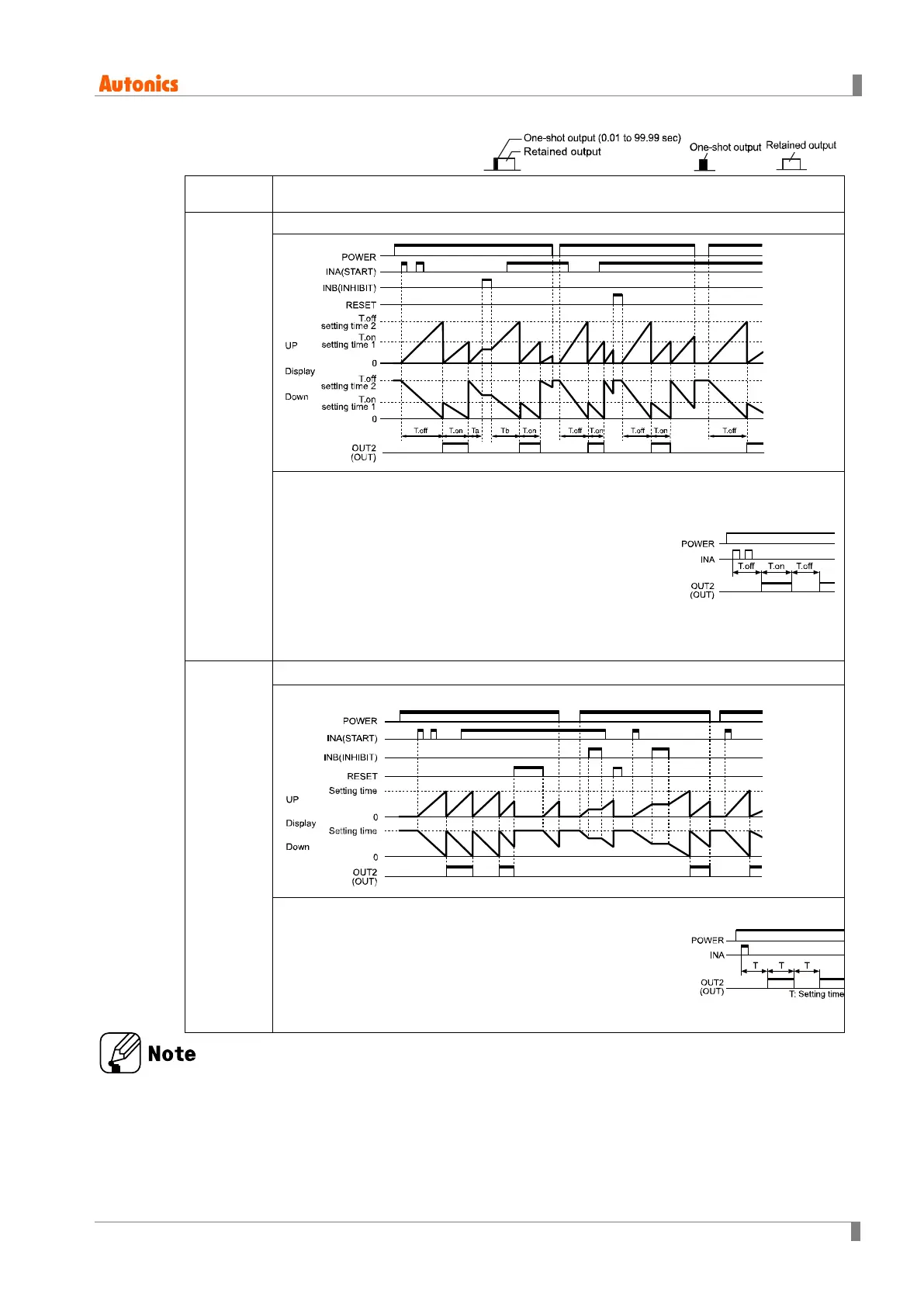

Time chart
FLK
[FLK]
Flicker (Power RESET)
1)Time starts when INA signal turns ON.
2)When INA signal is ON: Power ON Time Start is
operated. RESET OFF Time Start is operated.
3)Control output operates as retained output, output turns
off for the T.off time and turns off for the T.off time and
turns on for the T.on time repeatedly.
Ta+Tb = T.off
4)The T.on time and T.off time must be set individually.
5)In case of using the contact output, min. setting time must
be set over 100ms.
FLK.1
[FLk1]
Flicker 1 (Power RESET)
Retained(Hold) output
1)Time starts when INA signal turns ON.
2)When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3)Control output operates as retained (Hold) output.
4)In case of using the contact output, min. setting time must
be set over 100ms.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
