Autonics CX Series User Manual

6 Timer mode
© Copyright Reserved Autonics Co., Ltd. 71
Output
mode

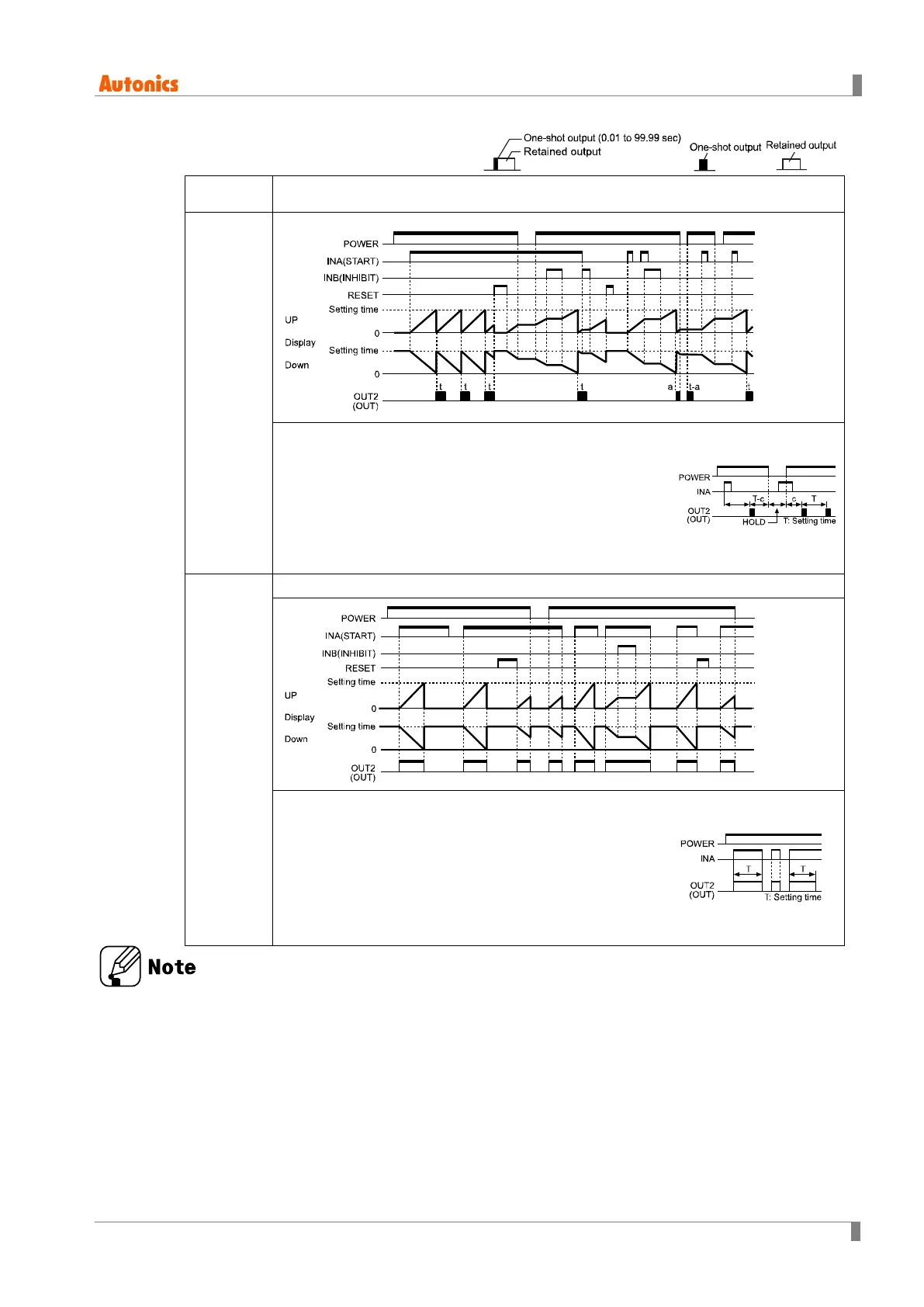

Time chart
FLK.2
[FLk2]
One-shot output
1)Time starts when INA signal turns ON and the display
value at the moment when power is off is memorized.
2)When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3)Control output operates as one-shot output.
4)
In case of using the contact output, min. setting time
must be set over 100ms.
INT
[INT]
Interval (Power RESET)
1)Control output turns ON and time starts when INA signal
turns ON.
2)When INA signal is OFF, time is reset.
3)When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
4)When it reaches setting time, it is auto reset.
5)Control output is ON when the time is progressing.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
