Autonics CX Series User Manual

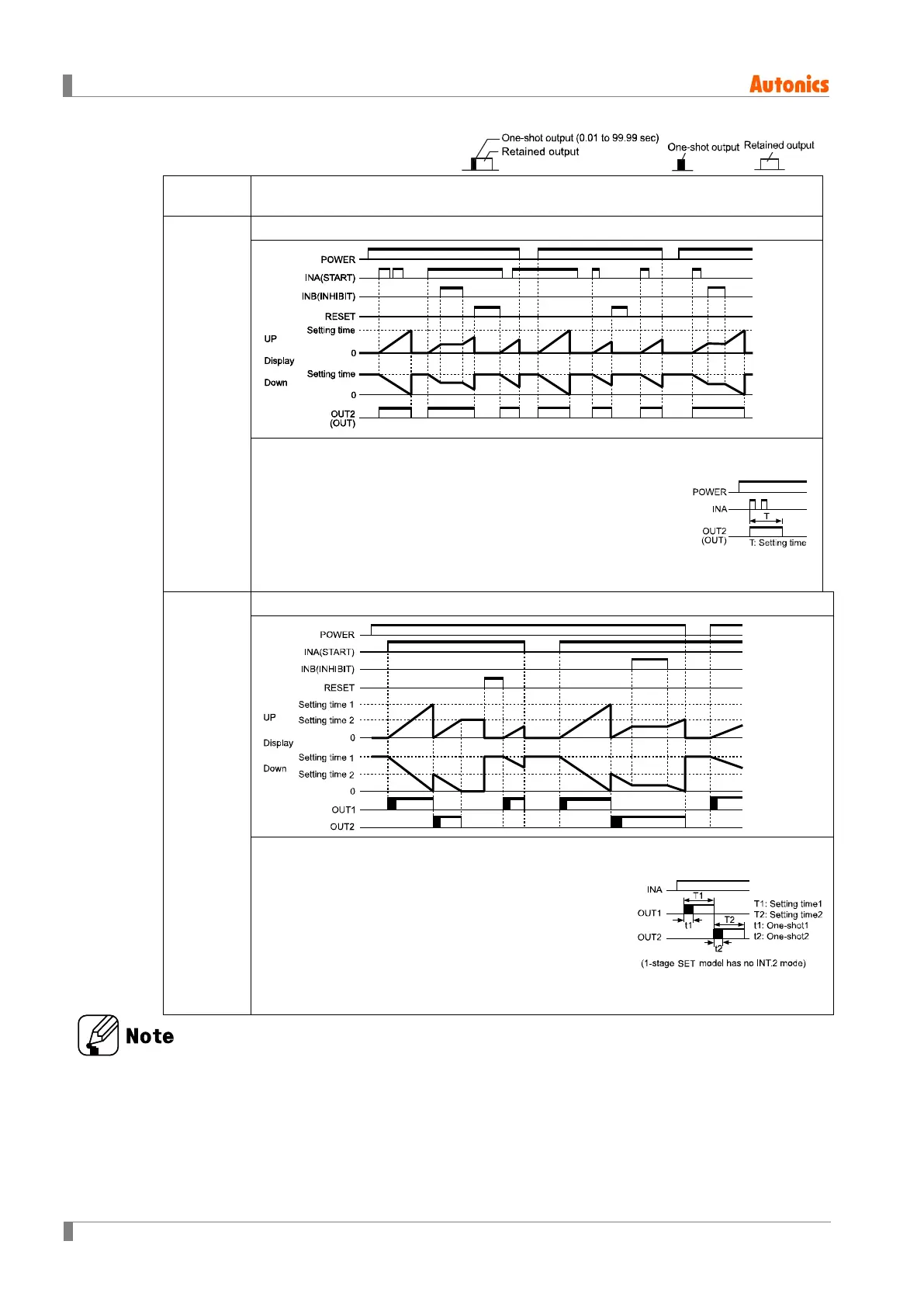

6 Timer mode
72 © Copyright Reserved Autonics Co., Ltd.
Output
mode
Time chart
INT.1
[INt1]
Interval 1 (Power RESET)
1)Control output turns ON and time starts when INA signal
turnsn ON.
2)When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3)When it reaches setting time, it is auto reset.
4)Control output is ON when the time is progressing.
5)Time is ignored while time is progressing.
INT.2
[INt2]
Interval 2 (Power RESET)
1)Time starts when INA signal is ON,
and resets when INA signal is OFF.
2)INA signal is ON, OUT1 output is ON during T1
(HOLD) or t1.
3)When it reaches setting time 1, display value resets
and OUT2 output is ON during T2 (HOLD) or t2 output
time.
※Output turns OFF when reaching the setting time even
if one-shot is longer than setting time.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
