6 Timer mode
© Copyright Reserved Autonics Co., Ltd. 73
Output
mode

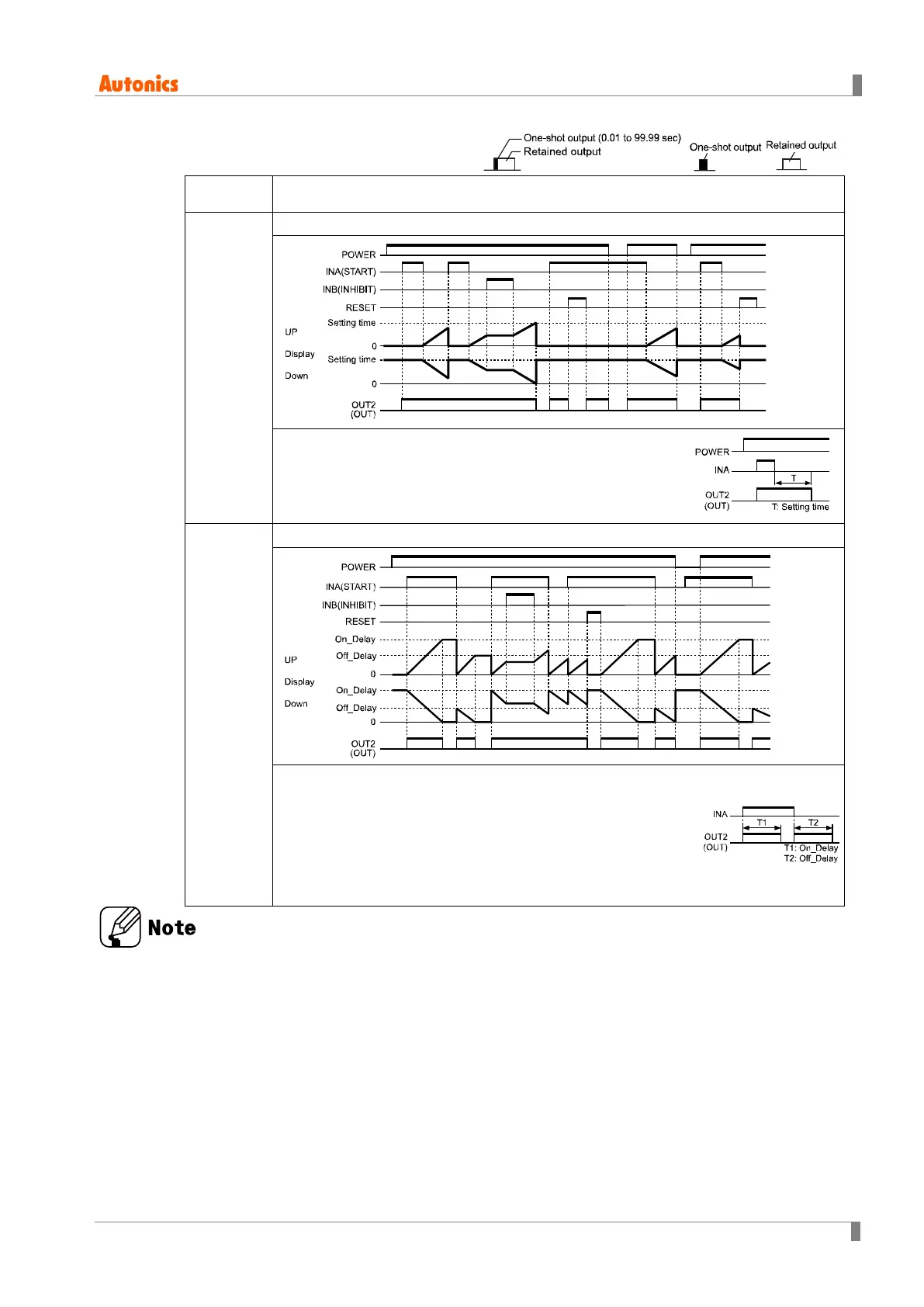

Time chart
OFD
[OFD]
Signal Off Delay (Power RESET)
1)If INA is ON, control output remains ON.
(except when power is off and reset is on)
2)When INA signal is OFF, time processes. When it reaches
setting time, indication value and control output are auto
reset automatically.
NFD
[NFD]
On-Off Delay (Power RESET)
1)When INA input is ON, output is ON and time is
progressing, then output is OFF after On_Delay time.
2)When INA input is OFF, output is ON and time is
progressing, then output is OFF after Off_Delay time.
3)If INA input is OFF within On_Delay time, step 2 starts.
4)If INA input is ON within Off_Delay time, step 1 starts.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
